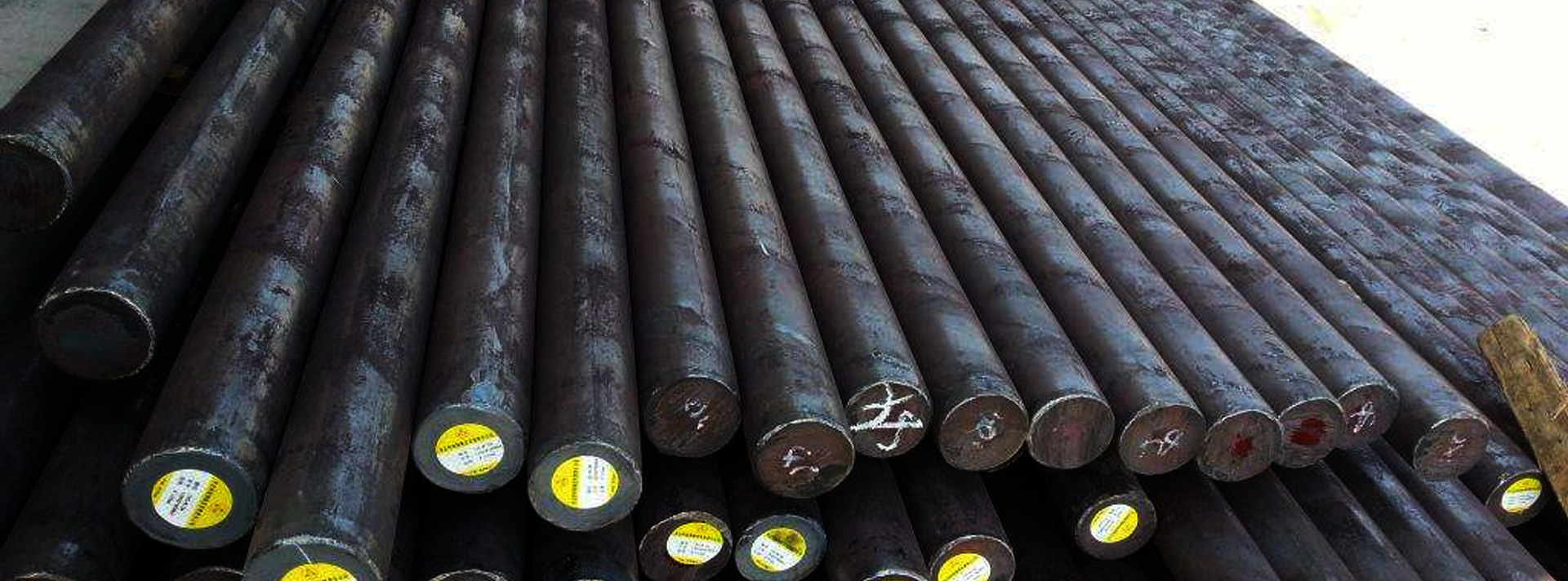

Steelo Fabrica is one of the renowned exporters, manufacturers and providers of EN-31 Round bars. EN-31 Rod is available in a diverse range at the most reasonable rates.
EN-31 Round Bars-
EN-31 round bars are fundamentally used as a Connector between the pipes at the middle. EN-31 Rod is also used as a socket to struggle pressure in Pressure Regulators. The higher chromium content in these round bars provides greater resistivity and mechanical strength. These have enormous demand for several large scale manufacturing purposes. It is extensive low carbon steel by means of having outstanding qualities and is predominantly suitable for winding and cold forming. This alloy is a high carbon alloy steel which offers exceptional hardness with compressive strength.
Table of Content
Properties of EN-31 Rod:
En-31 Rod offers great abrasion resistance. The annealing and tempering of this rod can be done by heating it uniformly. Our offered EN31 round bar provides ductile strength and shock resistance. EN31 is suitable for applications with very high loading such as train gear boxes where strength is the main deliberation. EN31 Rod is an actual high strength steel alloy which is tough and hardened before contributing. It has nickel, chromium, and molybdenum that offers very good chemical properties and uniform resistance.
EN31 Round bar possess many exceptional qualities, including greater strength, superior finish, perfect dimensions, long lasting functional life and durability.
EN- 31 rod is one of the popular products that we manufacture at our highly operational unit. This rod is widely used in roller bearings, the automobile industry, heavy engineering applications and construction services.
EN-31 Round Bar are used in wear resisting machine parts and press tools. Our round bars meet all the industrial compliance standards and client’s specific requirements so are utilized in a diverse range of industries.
Specification : ASTM A510, ASME SA510
size: 4 to 100mm
Hollow Bar : 32mm OD x 16mm ID to 250mm OD x 200mm ID)
Hex Bar : 2-100mm A/F
Angle bar size : 3mm*20mm*20mm~12mm*100mm*100mm
Rectangles Size : 33 x 30mm to 295 x 1066mm
Flat bar size : Thickness: 2 -100mm, Width: 10 to 500mm
Channel Bar : 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness
Section : 3.0 to 12.0mm thickness
Round bar size : Diameter: 3-~800mm
Round Bar Billet Size : 1/2″ to 495mm Diameter
Round Bar Surface : Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline
EN-31 Tolerance : H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements
EN-31 Technique : EN-31 Round Bar Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod
Round Bar Condition : Hardened & tempered, annealed
Finish : Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black
Processing : Bar cutting to 650mm
|BS 970 1991||BS 970 1955 EN||GERMAN DIN||FRENCH AFNOR||SWEDISH SS||AMERICAN SAE / AISI|
|BD||Bright drawn||SRE||Slit rolled edge|
|CG||Centreless ground||HF||Hot finished|
|CF||Cold finished||HRAP||Hot rolled annealed and pickled|
|P&T||Peeled and turned||RT||Rough turned/peeled|
|ST||Smooth turned||PR||Peeled and reeled|
|Type||SIZES (mm)||SIZES (Inches)||ISO Tolerance|
|Cold Drawn and Polish||3.00 – 75.00||1/8″ – 3.00″||h8-h9-h10-h11|
|Cold Drawn and Ground||10.00 – 75.00||5/6″ – 2.50″||h8-h9-h10-h11|
|Peeled and Polished||40.00 – 150.00||1.50″ – 6.00″||h11, h11-DIN 1013|
|Peeled and Ground||20.00 – 50.00||3/4″ – 2.00″||h9-h10-h11|
|Cut to size on request (tolerance +2/-0 mm). Standard lengths of en31 Bars 2000 mm up to 6000 mm available|
|EN 31||0.95 / 1.10||0.40 / 0.70||0.10 / 0.35||Max 0.050||Max 0.040||1.20 – 1.60|
|Soft annealing °C||Cooling||Hardness HB|
|Stress-relief annealing °C||Cooling|
|600 – 650||Furnace|
|1st pre-heating °C||2nd and 3rd||Hardening °C||Quenching||Tempering °C||Hardness after Teperature HRC|
|up to approx. 400 in an air-circulating furnace||800 and 900||800-820||810 °C Oil ,Quench||at least twice 150-200||61 – 63|
We offer a broad range of ASTM A510 EN 31 Round Bars through a worldwide network of stock-keeping branches. These EN 31 Carbon Steel Round Bar is use in various industries like :
