Steelo Fabric is a well-known Manufacturer and Supplier of genuine quality Nickel Aluminium Bronze Rod. We are using the best quality of raw materials for the production of UNS 63020 products. We are supplying these materials as per the required specifications of our valuable customers.
Table of Content
Information About Nickel Aluminium Bronze:
Nickel aluminium bronze alloys contain 5 to 11 per cent aluminium and additions of iron and nickel for strength. Nickel aluminium bronze is known to possess extra high strength than other similar varieties. It has an excellent creep resistance, high electrical and thermal conductivity, high impact strength, high flexibility, ease of welding, and minimal volatility under a high vacuum.

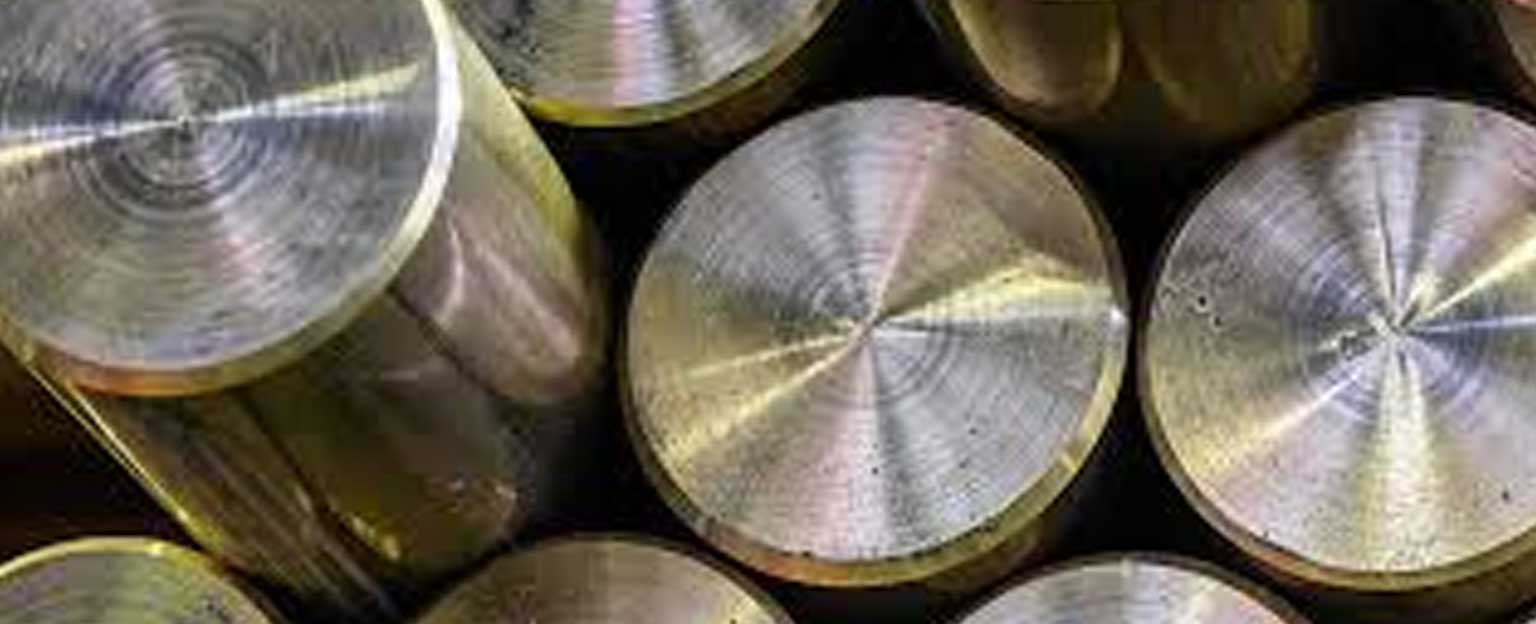

About Nickel Aluminium Bronze Rod:
Nickel aluminium bronze is available in rod, tube, and plate forms.Nickel Aluminium Bronze rod is a best option for applications involving heavy loads, abrasive wear resistance, friction, abrasive wear and corrosion. The addition of nickel increases the strength of alloy without affecting its excellent flexibility, toughness and corrosion resistance. The nickel aluminium bronze rods are unique complex materials during production, and They require the good organization of the metal structure by consideration to composition and heat treatment.
Properties of Nickel Aluminium Bronze Rod: Nickel aluminium bronze rods have both cast and wrought product forms and have a unique blend of properties.
These properties are as follows :
• Excellent wear and galling resistance
• High strength
• Density
• Non-sparking
• Low magnetic permeability
• Excellent stress corrosion features
Applications of UNS C63020 Rod :
UNS C63020 Rod finds application in several industrial applications because of its unique blend of properties. It is used in many industrial applications such as:
• bearings
• forming roll bearings
• off-highway truck bushings shafting
• cryogenics
• hydraulic bushings for earthmoving equipment
Nickel-aluminium bronze (NAB) is a metallic alloy widely used for ship valves and propellers, among other marine applications.
Specification : ASTM B150 / ASME SB150
Standard : EN, DIN, JIS, ASTM, BS, ASME, AISI
Rods : 6mm To 130 mm
Hex Rods : 5mm To 60mm
Square Rods : 4mm To 60mm
Ingots: AS per Specification
Length : 8mm To 70 mm
Diameter : 8mm To 70 mm
Form : Round, Square, Hex (A/F), Rectangle Etc.
Nickel Aluminium Bronze Grade | CDA | AMS | UNS |
C63020 | C63020 | 4590 | C63020 |
CD | Cold drawn | P | Polished |
BD | Bright drawn | SRE | Slit rolled edge |
CG | Centreless ground | HF | Hot finished |
CF | Cold finished | HRAP | Hot rolled annealed and pickled |
P&T | Peeled and turned | RT | Rough turned/peeled |
ST | Smooth turned | PR | Peeled and reeled |
HOW TO GET BEST PRICE OF Nickel Aluminium Bronze C63020 Rod ?
If looking for Nickel Aluminium Bronze C63020 Rods and Rod in exact length so first check Nickel Aluminium Bronze C63020 Rods price per KG in India and calculate with wight chart before negotiating with your supplier.
cal Composition Limits | |||||||||||
Weight % | Cu | Al | Cr | Co | Fe | Pb | Mn | Ni | Sn | Zn | Si |
AMS 4590 |
74.5 | 10.0-11.0 | 0.05 | 0.2 | 4.0-5.5 | 0.03 | 1.5 | 4.2-6.0 | 0.25 | 0.30 | 0.15 |
Material | Condition | Size | Tensile strength ksi | Yield Strength ksi | Elongation 4D % | Hardness HRC (min) |
AMS 4590 | Solution Treated and Tempered Bar | <1.00" | 135 | 100 | 6 | 26 |
AMS 4590 | Solution Treated and Tempered Bar | 1.00" – 2.00" | 130 | 95 | 6 | 26 |
AMS 4590 | Solution Treated and Tempered Bar | 2.00" – 4.00" | 130 | 90 | 6 | 26 |
