Steelo Fabrica is a prime manufacturer and seller of Stainless Steel 202 Round Bars. We are manufacturing the materials using the best raw material. We stainless steel grade 202 to produce these round bars.
What is a round bar?
Round Bar is a long, cylindrical metal bar stock that has many industrial and business applications. The most ordinary application is shafted.
Table of Content
What is stainless steel 202 alloy?
Grade 202 stainless steel is a sort of Cr-Ni-Mn impeccable with comparable properties to A240/SUS 302 stainless steel. These 202 Stainless Steel Rods possess good corrosion resistance, which is most familiar and frequently used in the stainless steel family. At low temperature toughness of this alloy is perform excellent.

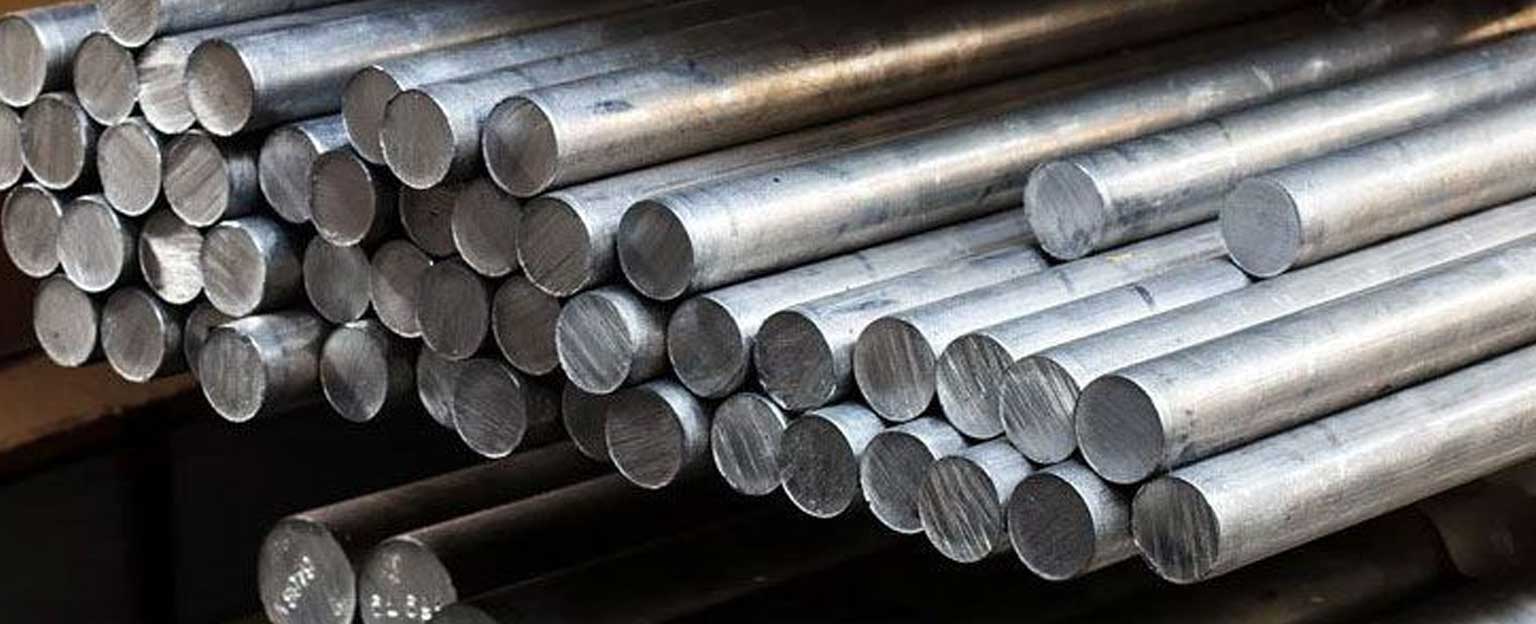

What is Stainless Steel 202 Round bar?
Stainless Steel 202 Round bars are chromium and manganese stainless steel from the austenitic family. As it has a moderate amount of nitrogen, copper, and nickel content. These round bars are balanced with alloying substances. After an annealing operation, it gets an austenitic structure. The composition of nitrogen content offer elevated strength and raises formability.
Benefits of using Stainless Steel 202 Round Bars:
Benefits of using Stainless Steel 202 Round Bars:
Properties of grade 202 stainless steel: Grade 202 stainless steel is a type of Cr-Ni-Mn stainless with similar properties to A240/SUS 302 stainless steel. The strength of grade 202 at low temperatures is excellent, and it is one of the most widely used hardening materials and possesses good corrosion resistance, toughness, high hardness, and strength.
Application of Stainless steel 202 round bars: These round bars are ideal for use in structural applications. Some other applications of stainless steel 202 round bars are as follows:
Specification : ASTM A276, A479 / ASME SA276, SA479
Standard : EN, DIN, JIS, ASTM, BS, ASME, AISI
Round Bars : Outside Diameter in the range of 4mm to 500mm
Bright Bars : Outside Diameter in the range of 4mm to 100mm
Hex Bars : 18mm – 57mm (11/16″ to 2-3/4″)
Square Bars : 18mm – 47mm (11/16″ to 1-3/4″)
Finish : Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish
Length : 1 to 6 Meters, Custom Cut Lengths
Form : Round, Square, Hex (A/F), Rectangle Etc.
| STANDARD | WERKSTOFF NR. | UNS | JIS |
| SS 202 | 1.4373 | S20200 | SUS 202 |
| CD | Cold drawn | P | Polished |
| BD | Bright drawn | SRE | Slit rolled edge |
| CG | Centreless ground | HF | Hot finished |
| CF | Cold finished | HRAP | Hot rolled annealed and pickled |
| P&T | Peeled and turned | RT | Rough turned/peeled |
| ST | Smooth turned | PR | Peeled and reeled |
| US Bar | Metric | Japanese | Canadian/ASTM | ||||
|---|---|---|---|---|---|---|---|
| Diameter(Inch) | Stainless Steel 202 Bar Size | Diameter (millimeter) | Stainless Steel 202 Bar Size | Diameter (millimeter) | Stainless Steel 202 Bar Size | Diameter (millimeter2) | Stainless Steel 202 Bar Size |
| 0.250 | #2 | 5 | 5 | 6 | 6 | 100 | 10M |
| 0.375 | #3 | 5.5 | 5.5 | 10 | 10 | 200 | 15M |
| 0.500 | #4 | 6 | 6 | 13 | 13 | 300 | 20M |
| 0.625 | #5 | 7 | 7 | 16 | 16 | 500 | 25M |
| 0.750 | #6 | 8 | 8 | 19 | 19 | 700 | 30M |
| 0.875 | #7 | 9 | 9 | 22 | 22 | 1000 | 35M |
| 1.000 | #8 | 10 | 10 | 25 | 25 | 1500 | 45M |
| 1.125 | #9 | 11 | 11 | 29 | 29 | 2500 | 55M |
| 1.250 | #10 | 12 | 12 | 32 | 32 | ||
| 1.375 | #11 | 14 | 14 | 35 | 35 | ||
| 1.500 | #12 | 16 | 16 | 38 | 38 | ||
| 1.625 | #13 | 18 | 18 | 41 | 41 | ||
| 1.750 | #14 | 20 | 20 | 44 | 44 | ||
| 1.875 | #15 | 22 | 22 | 48 | 48 | ||
| 2.000 | #16 | 25 | 25 | 51 | 51 | ||
| 2.250 | #18 | 28 | 28 | 57 | 57 | ||
| 32 | 32 | ||||||
| 36 | 36 | ||||||
| 40 | 40 | ||||||
| 44 | 44 | ||||||
| 50 | 50 | ||||||
| Diameter in inch | Size in inch/MM | Weight Lbs/ft & Kg/M |
|---|---|---|
| 1/16 | 0.0625 1.5875 | 0.010 / 0.01488 |
| 1/8 | 0.125 3.175 | 0.042 / 0.062496 |
| 3/32 | 0.0938 2.38252 | 0.0240 / 0.035712 |
| 5/32 | 0.1563 3.97002 | 0.065 / 0.09672 |
| 7/32 | 0.2188 5.55752 | 0.128 / 0.190464 |
| 3/16 | 0.1875 4.7625 | 0.094 / 0.139872 |
| 1/4 | 0.25 6.35 | 0.167 / 0.248496 |
| 5/16 | 0.3125 7.9375 | 0.260 / 0.38688 |
| 9/32 | 0.2813 7.14502 | 0.211 / 0.313968 |
| 3/8 | 0.375 9.525 | 0.376 / 0.559488 |
| 1/2 | 0.5 12.7 | 0.668 / 0.993984 |
| 7/16 | 0.4375 11.1125 | 0.512 / 0.761856 |
| 9/16 | 0.5625 14.2875 | 0.844 / 1.255872 |
| 11/16 | 0.6875 17.4625 | 1.264 / 1.880832 |
| 5/8 | 0.625 15.875 | 1.043 / 1.551984 |
| 3/4 | 0.75 19.05 | 1.502 / 2.234976 |
| 7/8 | 0.875 22.225 | 2.045 / 3.04296 |
| 13/16 | 0.8125 20.6375 | 1.761 / 2.620368 |
| 15/16 | 0.9375 23.8125 | 2.35 / 3.4968 |
| 1 1/16 | 1.0625 26.9875 | 3.012 / 4.481856 |
| 1 | 1 25.4 | 2.671 / 3.974448 |
| 1 1/8 | 1.125 28.575 | 3.38 / 5.02944 |
| 1 1/4 | 1.25 31.75 | 4.173 / 6.209424 |
| 1 3/16 | 1.1875 30.1625 | 3.77 / 5.60976 |
| 1 5/16 | 1.3125 33.3375 | 4.598 / 6.841824 |
HOW TO GET BEST PRICE OF SS 202 ROUND BAR ?
If looking for 202 Bars and Rod in exact length so first check SS 202 price per KG in India and calculate with wight chart before negotiating with your supplier.
| Grade | C | Mn | Si | P | S | Si | Cr | Ni |
| SS 202 | 0.015 max | 7.5-10 | 0.06 max | 0.03 max | 1.00 max | 17 – 19 | 4.0 – 6.0 | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
We offer a broad range of ASTM A276 SS 202 Round Bars through a worldwide network of stock-keeping branches. These 202 Stainless Steel Round Bar is use in various industries like :
Sweden, Kazakhstan, Tunisia, Oman, Egypt, Nigeria, Peru, Vietnam, Mexico, Malaysia, Belarus, Iran, Ukraine, Afghanistan, Chile, United States, New Zealand, Yemen, Colombia, Bahrain, France, Brazil, Sri Lanka, Trinidad & Tobago, Thailand, Norway, Philippines, Serbia, Bhutan, Poland, Japan, United Kingdom, Australia, United Arab Emirates, Turkey, Azerbaijan, South Africa, Czech Republic, Libya, Iran, Kenya, Costa Rica, Ghana, Switzerland, Saudi Arabia, Croatia, Nigeria, Poland, Belgium, Slovakia, Italy, Pakistan, Venezuela, Lithuania, South Korea, Taiwan, Chile, Ecuador, Romania, Mongolia, Greece, Algeria, Portugal, Angola, Hong Kong, Israel, Austria, Jordan, RuInconel ia, Estonia, Finland, China, Kuwait, Qatar, Bolivia, Morocco, Argentina, Bulgaria, Iraq, Bangladesh, Canada, Singapore, Gabon, Mexico, Denmark, Hungary, Netherlands, Lebanon, Spain, Indonesia.
Sharjah, Thane, Seoul, Thiruvananthapuram, Aberdeen, Granada, Toronto, Gurgaon, Mumbai, Chiyoda, Visakhapatnam, Muscat, Kuwait City, Coimbatore, Tehran, Houston, Chandigarh, Courbevoie, Indore, Atyrau, Surat, Ernakulam, Nagpur, Milan, Jakarta, Ulsan, Navi Mumbai, Hyderabad, Jeddah, New Delhi, Howrah, Brisbane, Madrid, Kanpur, Vadodara, Algiers, Dallas, Noida, Rajkot, Manama, Caracas, Istanbul, Rio de Janeiro, Calgary, Jamshedpur, Jaipur, Chennai, Ahmedabad, Port-of-Spain, New York, Ranchi, Haryana, Nashik, Abu Dhabi, Pimpri-Chinchwad, Cairo, Al Jubail, Doha, Ludhiana, Melbourne, Secunderabad, Bhopal, Dammam, Karachi, Pune, Ho Chi Minh City, Bogota, Bengaluru, Ankara, Lagos, Riyadh, Faridabad, Bangkok, Kolkata, Baroda, Busan, Ahvaz, Edmonton.
Steelo Fabrica is an ISO 9001:2015 Certified Manufacturer, Wholesaler, Supplier, Importer, Exporter, and Trader of a wide range of Bars and wires in a variety of materials like Stainless Steel, Duplex Steel, Inconel, Nickel, Hastelloy Titanium and Tantalum, Carbon Steel and more.
