Steelo Fabrica is the leading maker and provider of Incredible Brass Soft Wires in the world.
What is a soft wire?
Soft temper wires are very flexible, able to bend back and forth with little resistance but have the drawback of easily losing shape. Ideal uses for soft and dead soft wire include making detailed patterns or wrapping fragile drop shaped stones.
Table of Content

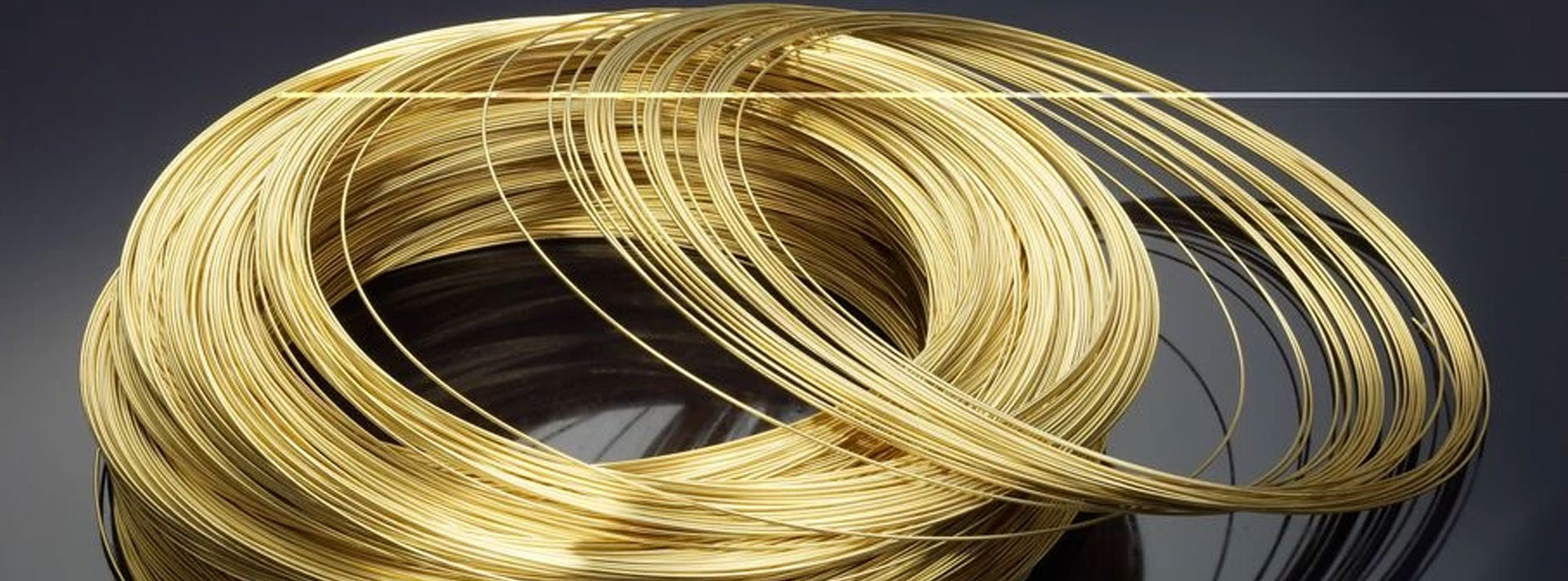

What is a Brass Soft Wire?
These Brass soft wires are made out of alloy 260 (70% copper and 30% zinc) yellow metal, and our soft brass wire is well known for speciality and gems applications.
What are the advantages of Brass Soft Wires?
The use of Brass Soft Wires provides an excellent, high-class look. The advantages of brass for architectural applications include its excellent corrosive resistance and its joining, plating, polishing and finishing characteristics, and brass is easily machined.
Properties of soft brass wires:
Brass soft wire is used as the replacement for Copper wire, which is the most usually utilized wire today. Brass Metal, an alloy of Copper and Zinc, conveys a fantastic blend of minimal expense, sensible conductivity, high elasticity, and worked on flush capacity. Brass soft wire is ideal for producing electrical parts because it is corrosion safe and has conductive properties. Brass Soft Wires are ideal for fabricating electrical parts because they are consumption safe and have conductive properties. Some more properties are as follows:
• These Brass Soft Wires are more malleable than copper or zinc.
• Not as hard as steel.
• Corrosion resistant.
• Exposure to ammonia may produce stress cracking.
• Low melting point.
Application: These conductive properties come from the copper and zinc structure of brass wire. As a result of its toughness, these wires are utilized for electrical connectors. It can weave wire lattice and metal fabric, electrical wire, link-making, compound industry and electric machines. The conductive properties of the Brass Soft Wire give it strength, so these wires are utilized for electrical connectors.
Dimensions : ANSI/AWCI – 01 -1992 and ASTM E 2016-11 and RRW 360
Wire Length : Cut Lengths: 0.125″ to 72″
No Limit on Spooled Lengths
Wire Diameter : 0.0004″ to 0.040″
10 microns to 1.0 mm
Other Sizes on Request
Wire Density : 8.89 g/cm3
Surface : Polished bright, Smooth, Bare, Enamel, PTFE, Ceramic, Plated
Wires Diameter(mm) | Aperture (mm) | Mesh | Length(M) | Weight (Kg) |
---|---|---|---|---|
4.00 | 40 | 0.58 | 30 | 142 |
4.00 | 30 | 0.75 | 30 | 182 |
4.00 | 25 | 0.87 | 30 | 213 |
3.2 | 25 | 0.87 | 30 | 141 |
3.2 | 20 | 1.1 | 30 | 169 |
2.6 | 20 | 1.12 | 30 | 116 |
2.6 | 18 | 1.23 | 30 | 127 |
2.6 | 15 | 1.44 | 30 | 173 |
2.0 | 15 | 1.49 | 30 | 92 |
2.0 | 12 | 1.8 | 30 | 110 |
2.0 | 10 | 2.12 | 30 | 127 |
2.0 | 8 | 2.54 | 30 | 155 |
1.8 | 7 | 3 | 30 | 149 |
1.8 | 6 | 3.25 | 30 | 161 |
1.6 | 7 | 3 | 30 | 117 |
1.6 | 6 | 3.35 | 30 | 131 |
1.6 | 5 | 3.85 | 30 | 150 |
1.6 | 4 | 4.5 | 30 | 176 |
1.6 | 3 | 5.5 | 30 | 215 |
1.4 | 6 | 3.5 | 30 | 105 |
1.4 | 5 | 4 | 30 | 120 |
1.4 | 4 | 4.7 | 30 | 140 |
1.2 | 8 | 2.7 | 30 | 59 |
1.2 | 7 | 3.1 | 30 | 68 |
1.2 | 6 | 3.5 | 30 | 77 |
1.2 | 5 | 4 | 30 | 88 |
1.2 | 4 | 4.9 | 30 | 99 |
1.2 | 3 | 6 | 30 | 132 |
1.0 | 6 | 3.6 | 30 | 55 |
1.0 | 5 | 4.25 | 30 | 65 |
1.0 | 4 | 5 | 30 | 76 |
1.0 | 3.2 | 6 | 30 | 92 |
1.0 | 3 | 6.35 | 30 | 97 |
1.0 | 2.18 | 8 | 30 | 122 |
0.8 | 2.83 | 7 | 30 | 68 |
0.8 | 2.38 | 8 | 30 | 78 |
0.8 | 2.2 | 8.5 | 30 | 83 |
0.8 | 2 | 9 | 30 | 88 |
0.8 | 1.75 | 10 | 30 | 98 |
0.8 | 1.5 | 11 | 30 | 108 |
0.8 | 1.3 | 12 | 30 | 118 |
0.7 | 1.4 | 12 | 30 | 90 |
0.7 | 1.84 | 10 | 30 | 75 |
0.6 | 1.21 | 14 | 30 | 77 |
0.6 | 1.52 | 12 | 30 | 66 |
0.6 | 1.94 | 10 | 30 | 55 |
0.5 | 1.3 | 14 | 30 | 54 |
0.5 | 1.09 | 16 | 30 | 61 |
0.5 | 0.9 | 18 | 30 | 69 |
0.5 | 0.77 | 20 | 30 | 76 |
Gauge A.S.W |
Diameter Inches |
Roll Thread |
Weight: Pounds/Foot Iron Steel |
Length Feet/Pound Iron Steel |
---|---|---|---|---|
0.630 0.625 0.562 0.500 |
1.0588 1.0420 0.8425 0.6669 |
0.94 0.96 1.19 1.50 |
||
7/0 | 0.490 0.464 |
1/2-20 |
0.6405 0.5743 |
1.56 1.74 |
6/0 | 0.462 0.445 0.441 0.437 |
1/2-13 1/2-12 |
0.5694 0.5283 0.5188 0.5094 |
1.76 1.86 1.93 1.96 |
5/0 | 0.430 0.401 |
7/16-20 |
0.4932 0.4290 |
2.03 2.33 |
4/0 | 0.394 0.386 0.375 |
7/16-14 |
0.4141 0.3975 0.3751 |
2.41 2.52 2.67 |
3/0 | 0.362 0.345 |
3/8-24 |
0.3496 0.3175 |
2.86 3.15 |
2/0 | 0.331 0.312 |
3/8-16 | 0.2923 0.2597 |
3.42 3.85 |
1/0 | 0.306 |
0.2498 |
4.00 | |
1 | 0.283 0.272 |
5/16-24 5/16-18 |
0.2136 0.1974 |
4.68 5.07 |
2 | 0.262 0.250 |
0.1831 0.1667 |
5.46 6.00 |
|
3 | 0.244 0.228 |
1/4-32 |
0.1588 0.1387 |
6.30 7.21 |
4 | 0.225 0.212 |
1/4-28 1/4-20 |
0.1350 0.1199 |
7.40 8.34 |
5 | 0.207 |
0.1143 |
8.75 |
|
6 |
0.192 0.190 0.187 0.186 |
12-28 12-24 |
0.09834 0.09630 0.09328 0.09229 |
10.17 10.38 10.72 10.84 |
7 |
0.177 0.167 |
10-32 |
0.08357 0.07440 |
11.97 13.44 |
8 |
0.162 0.160 0.156 |
10-24 |
0.07001 0.06829 0.06492 |
14.28 14.64 15.40 |
9 |
0.148 0.144 0.141 |
8-36 8-32 |
0.05843 0.05532 0.05303 |
17.11 18.08 18.86 |
10 | 0.135 0.125 |
0.04862 0.04168 |
20.57 23.99 |
|
11 | 0.120 0.115 |
6-40 6-32 |
0.03841 0.03528 |
26.03 28.35 |
12 | 0.105 0.096 0.094 |
5-40 4-48 4-40 |
0.02941 0.02458 0.02357 |
34.00 40.68 42.43 |
13 |
0.092 |
4-36 | 0.02258 |
44.29 |
14 | 0.080 |
0.01707 |
58.57 |
|
15 | 0.072 | 0.01383 | 72.31 | |
16 | 0.062 | 0.01025 | 97.52 | |
17 | 0.054 | 0.007779 | 128.56 | |
18 | 0.048 | 0.006146 | 162.70 | |
19 | 0.041 | 0.004484 | 223.00 | |
20 | 0.035 | 0.003268 | 306.02 |
HOW TO GET BEST PRICE OF BRASS SOFT WIRE ?
If looking for Brass Soft Wires in exact length so first check Brass Soft Wires price per KG in India and calculate with wight chart before negotiating with your supplier.
We offer a broad range of Brass Soft Wires through a worldwide network of stock-keeping branches. These brass Soft Alloy Welding Wire is use in various industries like :
