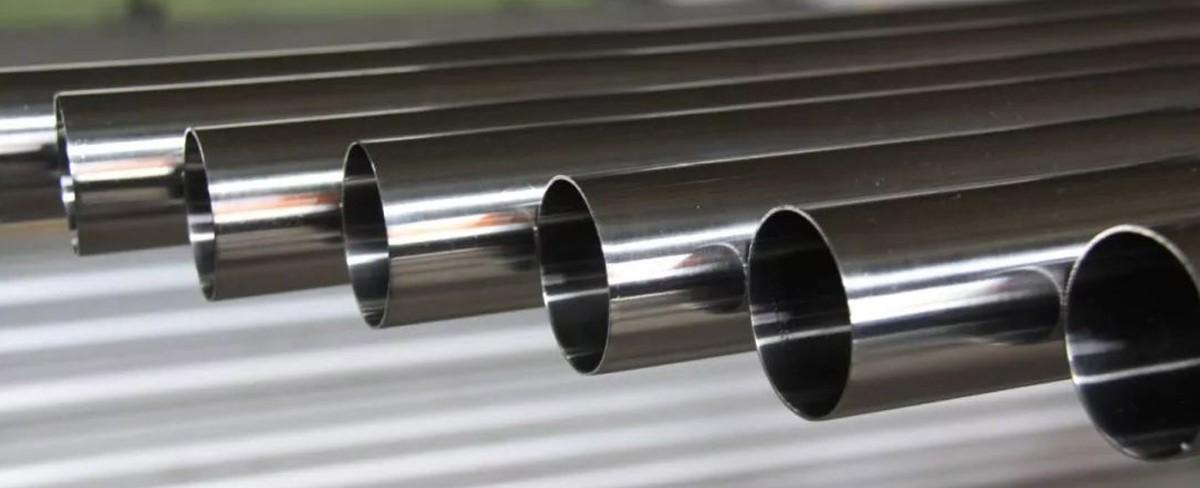

What is a Stainless Steel Pipe?

A stainless steel pipe is made from stainless steel, an alloy of iron, chromium, and often nickel, which is highly resistant to corrosion and staining. Due to its durability, strength, and ability to withstand high temperatures and pressure, stainless steel is used in various applications, including plumbing, construction, and industrial processes.

SS Pipe Thickness Chart in MM, Stainless Steel Pipe Size Chart in MM And Inches, Standard SS Pipe Sizes In MM, Stainless Steel Pipe Thickness Chart in MM, Ss Pipe Size Chart, Stainless Steel Pipe Dimensions Chart, SS Pipe Weight Chart, Stainless Steel Pipe Sizes Chart, Stainless Steel Pipe Chart, Ss Pipe Size Chart in MM, Stainless Steel Pipes Dimensions, Standard Stainless Steel Pipe Sizes.

Stainless Steel Pipe Size Chart in MM and Inches

Nominal Pipe Size (Inch) Outside Diameter (mm) Sch. 5s (mm) Sch. 10s (mm) Sch. 10 (mm) Sch. 20 (mm) Sch. 30 (mm) Sch. 40s (mm)
1/8 10.3 1.00 1.24 1.24 1.45
1/4 13.7 1.20 1.65 1.65 1.85
3/8 17.1 1.20 1.65 1.65 1.85
1/2 21.34 1.65 2.11 2.11 2.41
3/4 26.67 1.65 2.11 2.11 2.41
1 33.4 1.65 2.77 2.77 2.90
1 1/4 42.16 1.65 2.77 2.77 2.97
1 1/2 48.26 1.65 2.77 2.77 3.18
2 60.32 1.65 2.77 2.77 3.18
2 1/2 73.02 2.11 3.05 3.05 4.78
3 88.9 2.11 3.05 3.05 4.78
3 1/2 101.6 2.11 3.05 3.05 4.78
4 114.3 2.11 3.05 3.05 4.78
5 141.3 2.77 3.40 3.40
6 168.27 2.77 3.40 3.40
8 219.07 2.77 3.76 3.76 6.35 7.04 8.18
10 273.05 3.40 4.19 4.19 6.35 7.80 9.27
12 323.85 3.96 4.57 4.57 6.35 8.38 9.53
14 355.6 3.96 4.78 6.35 7.92 9.53
16 406.4 4.19 4.78 6.35 7.92 9.53
18 457.2 4.19 4.78 6.35 7.92 11.13
20 508 4.78 5.54 6.35 9.53 12.7
22 558.8 4.78 5.54 6.35 9.53 12.7
24 609.6 5.54 6.35 6.35 9.53 14.27
26 660.4 7.92 12.7
28 711.2 7.92 12.7 15.88
30 762 6.35 7.92 7.92 12.7 15.88
32 812.8 7.92 12.7 15.88
34 863.6 7.92 12.7 15.88
36 914.4 7.92 12.7 15.88
Nominal Pipe Size (Inch) Outside Diameter (mm) Sch. Wt. (mm) Sch. 40 (mm) Sch. 60 (mm) Sch. 80s (mm) Extra Strong (xs) (mm)
1/8 10.3 1.73 1.73 2.41 2.41
1/4 13.7 2.24 2.24 3.02 3.02
3/8 17.1 2.31 2.31 3.20 3.20
1/2 21.34 2.77 2.77 3.73 3.73
3/4 26.67 2.87 2.87 3.91 3.91
1 33.4 3.38 3.38 4.55 4.55
1 1/4 42.16 3.56 3.56 4.85 4.85
1 1/2 48.26 3.68 3.68 5.08 5.08
2 60.32 3.91 3.91 5.54 5.54
2 1/2 73.02 5.16 5.16 7.01 7.01
3 88.9 5.49 5.49 7.62 7.65
3 1/2 101.6 5.74 5.74 8.08 8.08
4 114.3 6.02 6.02 8.56 8.56
5 141.3 6.55 6.55 9.53 9.52
6 168.27 7.11 7.11 10.97 10.97
8 219.07 8.18 8.18 10.31 12.70 12.70
10 273.05 9.27 9.27 12.70 12.70 12.70
12 323.85 9.53 10.31 14.27 12.70 12.70
14 355.6 9.52 11.15 15.09 12.70
16 406.4 9.52 12.70 16.66 12.70
18 457.2 9.52 14.27 19.05 12.70
20 508 9.52 15.09 20.62 12.70
22 558.8 9.52 22.23 12.70
24 609.6 9.52 17.48 24.61 12.70
26 660.4 9.52 12.70
28 711.2 9.52 12.70
30 762 9.52 12.70
32 812.8 9.52 17.48 12.70
34 863.6 9.52 17.48 12.70
36 914.4 9.52 19.05 12.70
Nominal Pipe Size (Inch) Outside Diameter (mm) Sch. 80 (mm) Sch. 100 (mm) Sch. 120 (mm) Sch. 140 (mm) Sch. 160 (mm) Double Extra Strong (xxs) (mm)
1/8 10.3 2.41
1/4 13.7 3.02
3/8 17.1 3.20
1/2 21.34 3.73 4.75 7.47
3/4 26.67 3.91 5.56 7.82
1 33.4 4.55 6.35 9.09
1 1/4 42.16 4.85 6.35 9.70
1 1/2 48.26 5.08 7.14 10.15
2 60.32 5.54 8.74 11.07
2 1/2 73.02 7.01 9.53 14.02
3 88.9 7.65 11.13 15.24
3 1/2 101.6 8.08
4 114.3 8.56 11.13 13.49 17.12
5 141.3 9.52 12.70 15.88 19.05
6 168.27 10.97 14.27 18.26 21.95
8 219.07 12.70 15.06 18.26 20.62 23.01 22.23
10 273.05 15.09 18.26 21.44 25.40 28.58 25.40
12 323.85 17.48 21.44 25.40 28.58 33.32 25.40
14 355.6 19.05 23.83 27.79 31.75 35.71
16 406.4 21.44 26.19 30.96 36.53 40.49
18 457.2 23.83 29.36 34.93 39.67 45.24
20 508 26.19 32.54 37.10 44.45 50.01
22 558.8 28.58 34.93 41.28 47.63 53.98
24 609.6 30.96 38.89 46.02 52.37 59.54
26 660.4
28 711.2
30 762
32 812.8
34 863.6
36 914.4

For further details, please download the SS pipe weight chart pdf.
