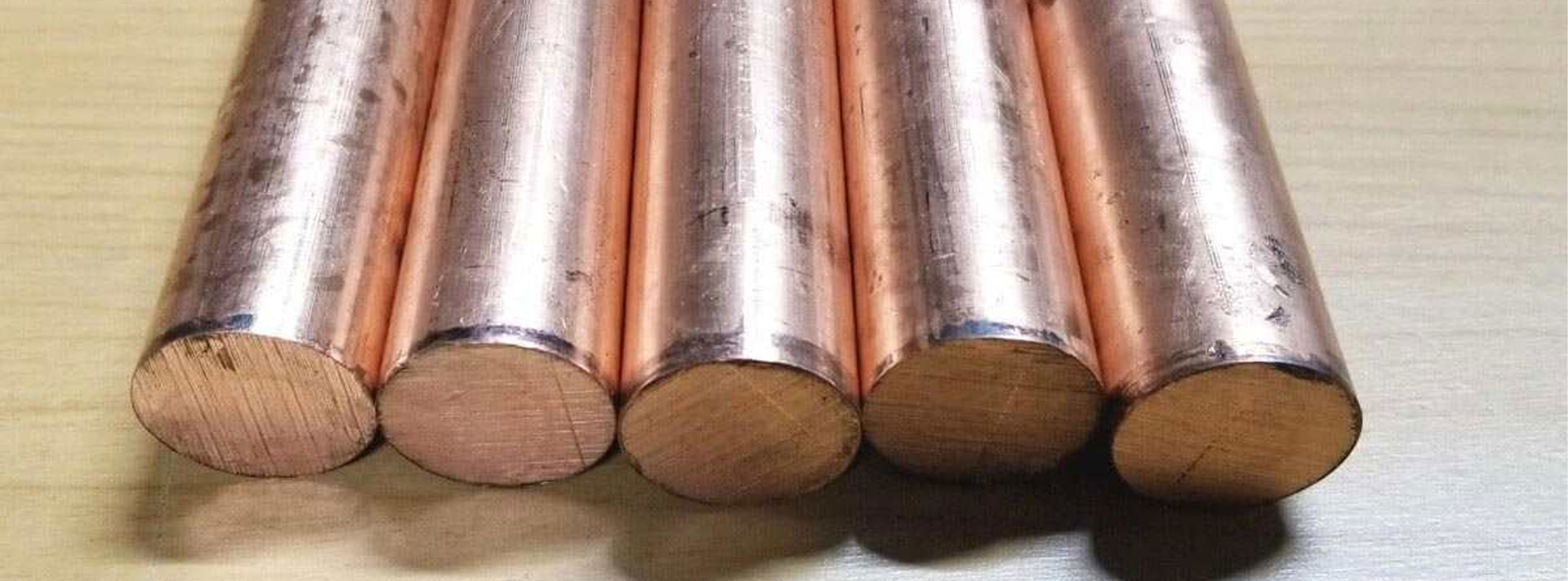

Steelo Fabrica is the prominent producer and supplier of the Red Brass C23000 forged Bars. We are using the authentic raw materials procured from the certified vendors for the manufacturing of Red Brass C23000 Forged bars.
Table of Content
Red Brass C23000: Red Brass has very good cold-forming properties and is well suited for, e.g. coinage, beating, embossing. This alloy has a high power than pure copper. It has good welding and brazing properties and corrosion resistance and is not fragile to stress corrosion and dezincification. We are producing good qualities products. These UNS C23000 brass alloys are red and stronger than C22000 alloys.
Composition: Red Brass alloy C23000 Rods, also known as “red brass”, contains 84–86% copper, 0.05 inch iron and lead, with the balance being zinc. Even there is a such material which is known as gunmetal, from the family of red brasses.
Advantages: The advantages of Red Brass C23000 Forged Bars are that red brass is the most durable metal for the plumbing industry and commercial water pipe applications. Red brass is also used for underground service lines. It presents great corrosion resistance to all types of potable waters and has moderate strength and good retention of spring properties.
Properties: Red Brass alloy C23000 Rod is the most durable of all metals for the plumbing industry and commercial water pipe applications. It is marvelous for resistance to dezincification and season cracking, which most high copper brasses are known for.
Key Features:
• Superb cold-forming features
• Good deep drawing attributes
• Resistance to corrosion
• The optimum combination of strength and flexibility for alpha brasses
Typical Uses:
It is principally used in jewellery, metal goods, the watch industry and the electronic industry for installation parts.
Hardware: Kick Plates etc.
Consumer: Housing for Lipstick Compacts, Costume Jewelry, Caskets, Ball Point Pens. Electrical: Wave Guides, Rotor Bar-AC Motors, Cable Wrap.
Fasteners: Screw Shells, Bolts, Line Clamps, Rivets.
Industrial: Base for Vitreous Enamel, Escutcheons, Flexible Tube, Studs.
ASTM B-927
ASME SB-927
UNS C23000
DIN
CuZn15
Specification : ASTM B927/ ASME SB927
Standard : EN, DIN, JIS, ASTM, BS, ASME, AISI
Hollow Bars : Min Bore Size 20 mm and Max OD 100 mm
Round Bars : 6mm To 130 mm
Hex Bars : 5mm To 60mm
Square Bars : 4mm To 60mm
Billets : Up to 200 mm
Ingots: AS per Specification
Finish : Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish
Length : 1 to 6 Meters, Custom Cut Lengths
Form : Round, Square, Hex (A/F), Rectangle Etc.
CD | Cold drawn | P | Polished |
BD | Bright drawn | SRE | Slit rolled edge |
CG | Centreless ground | HF | Hot finished |
CF | Cold finished | HRAP | Hot rolled annealed and pickled |
P&T | Peeled and turned | RT | Rough turned/peeled |
ST | Smooth turned | PR | Peeled and reeled |
HOW TO GET BEST PRICE OF RED BRASS C23000 Forged BAR ?
If looking for Red Brass C23000 Forged Bars and Rod in exact length so first check Red Brass C23000 Rods price per KG in India and calculate with wight chart before negotiating with your supplier.
Cu | Pb | Fe | Zn | |
Min/Max | 84.0-86.0 | 0.05 | 0.05 | Rem |
Nominal | 85.0 | – | – | 5.0 |
Temper | Tensile strength Rm [ksi] [MPa] | Yield strength Rp0.2 nominal [ksi] [MPa] | Elon gation 2” nominal [%] | Hardness nominal R30T HV | min bend ratio 90° | min bend ratio 180° | ||
GW | BW | GW | BW | |||||
Soft | 39-47 269-324 | 13 90 | 45 | – | 0 | 0 | 0 | 0 |
H02 | 51-61 352-421 | 49 338 | 18 | 105 | 0 | 0 | 0.5 | 1.5 |
H04 | 63-72 435-497 | 62 428 | 7 | 135 | 0 | 1.5 | 2.0 | 4.0 |
H06 | 72-80 497-552 | 69 476 | 4 | 150 | 1.5 | – | 2.5 | – |
H08 | 78-86 538-593 | 73 504 | 3 | 160 | 2.5 | – | 4.0 | – |
H10 | 82-90 566-621 | 76 524 | 1 | 170 | – | – | – | – |
We offer a broad range of ASTM B927 Red Brass C23000 Forged Bars through a worldwide network of stock-keeping branches. These C23000 Red Brass Bars and Rods is use in various industries like :
