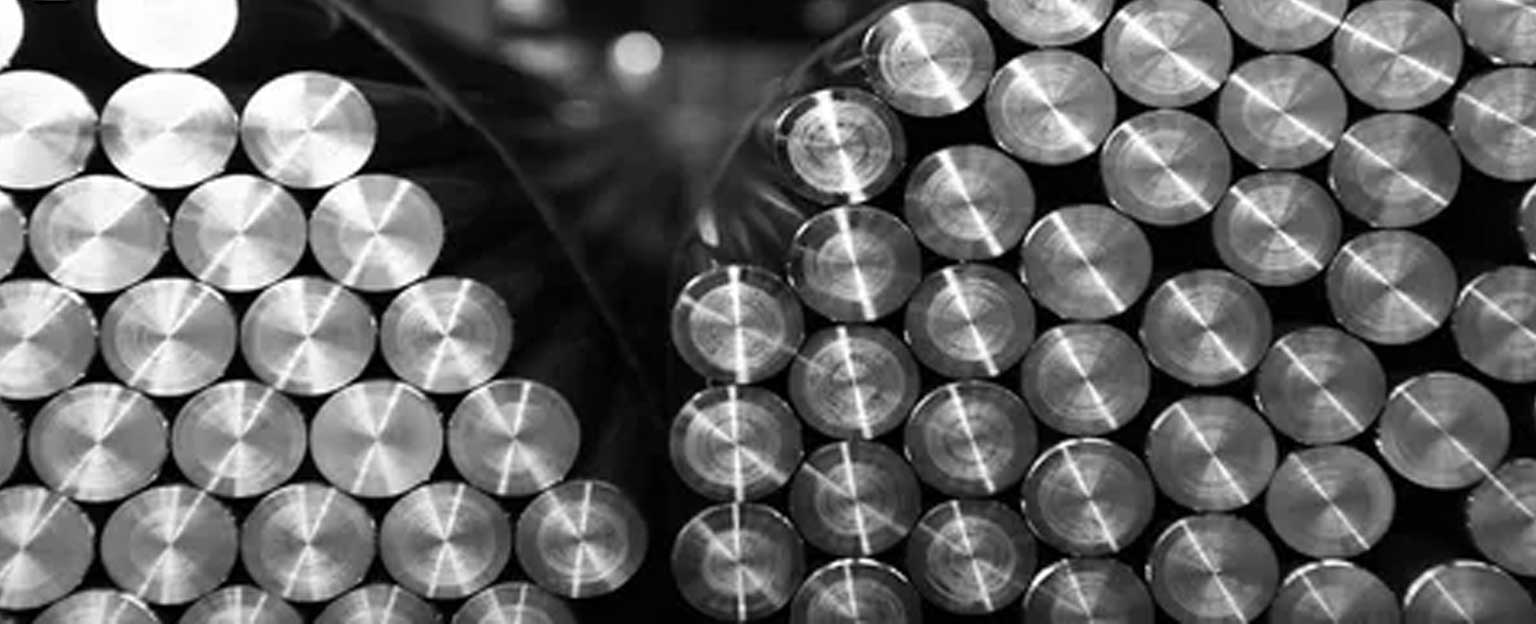

We at Steelo Fabrica provides manufacturing solution for various industries with the production and exporting of Hastelloy C-22 forged bars and rods. Our company places strong commitments towards consumer satisfaction through product excellence, reliable quality, and competitive price ranges.
Table of Content
Composition:
Various elements such as manganese, carbon, sulfur, silicon, nickel, copper, chromium, iron, molybdenum, and phosphorus have consisted in the composition of the Hastelloy C-22 forged bars and rods. All the Hastelloy C-22 rods are manufactured from high-quality standard raw materials, and these are designed per national and international standards.
This material is also known as UNS N06022 forged bars, and when looking at the chemical composition of the C-22 alloy, there is about 22 percent chromium present in the material. This nickel molybdenum alloy offers excellent resistance to hydrochloric acid.
These materials enhance many properties such as resistance against pitting, corrosion and stress corrosion cracking, exceptional weldability, higher corrosion resistance, and many more.
What are the main properties of C22 alloy that make it more popular?
Hastelloy C22 is a Nickel – Molybdenum alloy that delivers outstanding resistance to hydrochloric acid at all temperatures ranges and concentrations from ambient to elevated temperatures.
Meanwhile, these Hastelloy C22 forged bars and rods are also being offered in customized sizes and shapes to clients. These forged Bars offer excellent resistance to pitting, stress-corrosion cracking, and crevice corrosion cracking.
Applications areas of the Hastelloy C-22 forged bars and rods:
Due to these properties, out Hastelloy C22 rods are highly used in applications like pollution control, chemical processing, pulp, and paper production, waste treatment, marine seawater applications, etc.
Also, other applications of the Hastelloy c22 forged bars are for Flue gas scrubbers, Chlorination systems, Acid production and pickling systems, and more. As a manufacturer, supplier, stockiest, and exporter, we provide Hastelloy Alloy C22 forged bars and rods in custom-made sizes and thicknesses as per the exact requirement of our esteemed clients.
ASTM B-574
ASME SB-574
UNS N06022
WNR. 2.4602
STANDARD | UNS | WNR. | AFNOR | EN | JIS |
Hastelloy C22 | N06022 | 2.4602 | – | NiCr21Mo14W | NW 6022 |

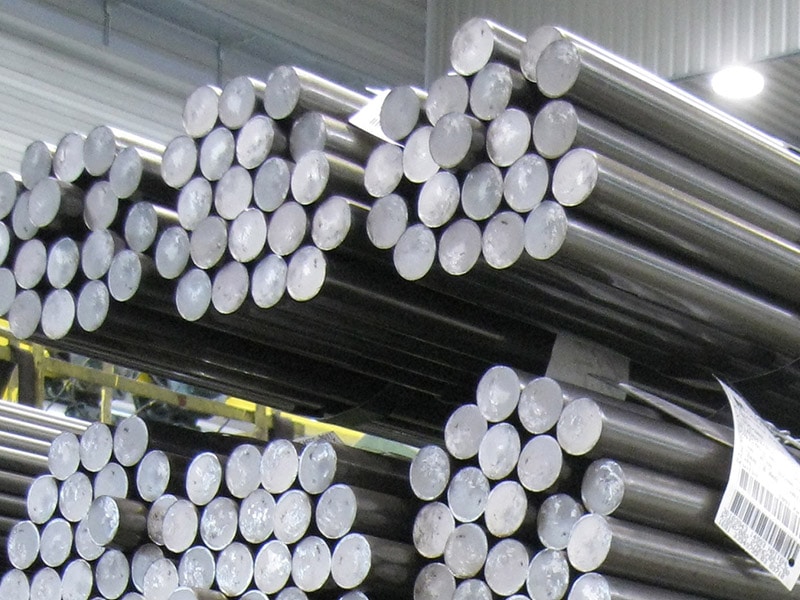

Size & Dimensions of Hastelloy C22 round bar | |||||||
---|---|---|---|---|---|---|---|
Metric | US Bar | ASTM/ Canadian | Japanese | ||||
Bar Size | Diam. (mm) | Bar Size | Diam. (Inch) | Bar Size | Diam. (mm2) | Bar Size | Diam. (mm) |
5 | 5 | #2 | 0.250 | 10M | 100 | 6 | 6 |
5.5 | 5.5 | #3 | 0.375 | 15M | 200 | 10 | 10 |
6 | 6 | #4 | 0.500 | 20M | 300 | 13 | 13 |
7 | 7 | #5 | 0.600 | 25M | 500 | 16 | 16 |
8 | 8 | #6 | 0.750 | 30M | 700 | 19 | 19 |
9 | 9 | #7 | 0.875 | 35M | 1000 | 22 | 22 |
10 | 10 | #8 | 1.000 | 45M | 1500 | 25 | 25 |
11 | 11 | #9 | 1.125 | 55M | 2500 | 29 | 29 |
12 | 12 | #10 | 1.250 | 32 | 32 | ||
14 | 14 | #11 | 1.375 | 35 | 35 | ||
16 | 16 | #12 | 1.500 | 38 | 38 | ||
18 | 18 | #13 | 1.600 | 41 | 41 | ||
20 | 20 | #14 | 1.750 | 44 | 44 | ||
22 | 22 | #15 | 1.875 | 48 | 48 | ||
25 | 25 | #16 | 2.000 | 51 | 51 | ||
28 | 28 | #18 | 2.250 | 57 | 57 | ||
32 | 32 | ||||||
36 | 36 | ||||||
40 | 40 | ||||||
44 | 44 | ||||||
50 | 50 |
Round Bar | ||||||||
---|---|---|---|---|---|---|---|---|
Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr |
3mm | 0.017 | 0.055 | 20mm | 0.753 | 2.470 | 3″ | 10.900 | 35.762 |
1/8″ | 0.019 | 0.062 | 22mm | 0.908 | 2.979 | 3-1/4″ | 12.800 | 41.996 |
5/32″ | 0.029 | 0.095 | 7/8″ | 0.926 | 3.038 | 3-1/2″ | 14.850 | 48.772 |
4mm | 0.030 | 0.098 | 24mm | 1.080 | 3.543 | 3-3/4″ | 17.001 | 55.780 |
3/16″ | 0.043 | 0.141 | 25mm | 1.180 | 3.871 | 4″ | 19.306 | 63.340 |
5mm | 0.047 | 0.154 | 1″ | 1.210 | 3.970 | 4-1/4″ | 21.908 | 72.249 |
7/32″ | 0.058 | 0.190 | 26mm | 1.271 | 4.170 | 4-1/2″ | 24.4487 | 80.340 |
6mm | 0.068 | 0.223 | 27mm | 1.368 | 4.490 | 4-3/4″ | 27.366 | 90.249 |
1/4″ | 0.076 | 0.249 | 1-1/8″ | 1.534 | 5.033 | 5″ | 30.461 | 99.940 |
7mm | 0.091 | 0.298 | 30mm | 1.691 | 5.548 | 5-1/2″ | 36.690 | 121.000 |
5/16″ | 0.118 | 0.387 | 1-1/4″ | 1.924 | 6.349 | 6″ | 43.860 | 143.900 |
8mm | 0.120 | 0.398 | 32mm | 1.894 | 6.314 | 6-1/2″ | 51.093 | 167.630 |
9mm | 0.152 | 0.498 | 1-3/8″ | 2.303 | 7.550 | 7″ | 59.432 | 196.000 |
3/8″ | 0.170 | 0.557 | 35mm | 2.390 | 7.553 | 7-1/2″ | 68.226 | 225.000 |
10mm | 0.189 | 0.620 | 36mm | 2.438 | 7.999 | 8″ | 77.586 | 254.55 |
11mm | 0.228 | 0.748 | 38mm | 2.792 | 8.903 | 10″ | 121.048 | 397.140 |
7/16″ | 0.232 | 0.761 | 1-1/2″ | 2.715 | 8.951 | |||
12mm | 0.271 | 0.889 | 40mm | 3.009 | 9.872 | |||
1/2″ | 0.303 | 0.994 | 1-5/8″ | 3.200 | 10.449 | |||
13mm | 0.318 | 1.043 | 1-3/4″ | 3.712 | 12.179 | |||
14mm | 0.368 | 1.207 | 45mm | 3.807 | 12.555 | |||
9/16″ | 0.383 | 1.256 | 1-7/8″ | 4.260 | 13.977 | |||
15mm | 0.424 | 1.391 | 48mm | 4.330 | 14.205 | |||
5/8″ | 0.473 | 1.551 | 50mm | 4.698 | 15.414 | |||
16mm | 0.481 | 1.578 | 2″ | 4.848 | 15.906 | |||
17mm | 0.543 | 1.791 | 2-1/8″ | 5.475 | 17.963 | |||
11/16″ | 0.573 | 1.880 | 2-1/4″ | 6.135 | 20.128 | |||
18mm | 0.610 | 2.001 | 60mm | 6.768 | 22.205 | |||
3/4″ | 0.682 | 2.237 | 2-3/8″ | 6.838 | 22.435 | |||
2-1/2″ | 7.576 | 24.856 | ||||||
2-5/8″ | 8.354 | 27.409 | ||||||
2-3/4″ | 9.169 | 30.083 |
HOW TO GET BEST PRICE OF HASTELLOY C22 FORGED BAR ?
If looking for Alloy C22 Forged Bars and Rod in exact length so first check Hastelloy C22 price per KG in India and calculate with wight chart before negotiating with your supplier.
Grade | Ni | C | Mo | Mn | Si | Fe | P | S | Co | Cr | W | V |
Hastelloy C22 | Balance | 0.010 max | 12.5-14.5 | 0.50 max | 0.08 max | 2-6 | 0.02 max | 0.02 max | 2.5 max | 20-22.5 | 2.5-3.5 | 0.35 max |
Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
Hastelloy C22 | 8.69 g/cm3 | 1399 °C (2550 °F) | Psi – 1,00,000, MPa – 690 | Psi – 45000, MPa – 310 | 45 % |
