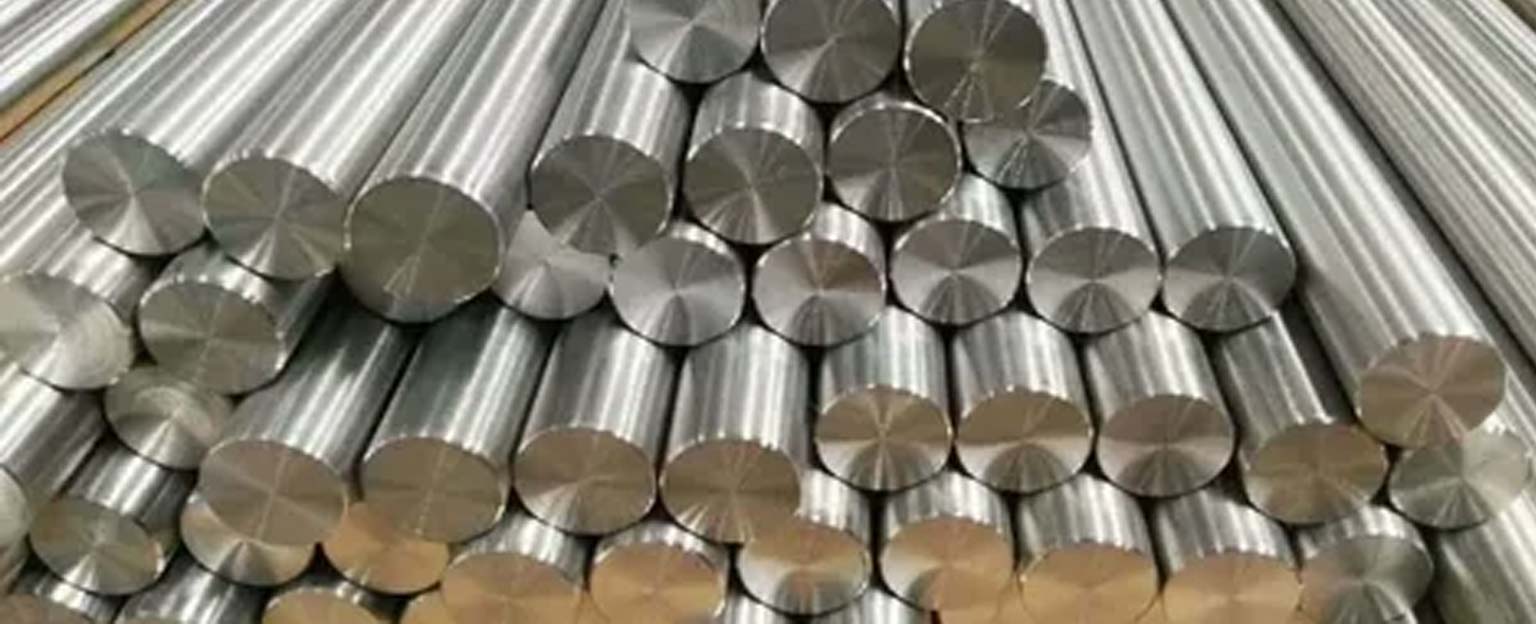

Steelo Fabrica is one of the pioneer distributors and traders of stainless steel 904L round bars. All these bars are manufactured using the best quality materials to meet the client’s expectations.
This grade UNS NO8904 is austenitic stainless steel that offers moderate to superior corrosion resistance and thus widely used in manufacturing industries.
Table of Content
Composition of Stainless steel 904L round bars:
Stainless Steel 904L round bars are non-stabilized austenitic stainless steel. The L in the name of the grade designates the carbon content included.
Nickel, copper, silicon, phosphorus, sulfur, carbon are the main elements included in the composition.
Besides, Chromium and Nickel, other elements like Molybdenum, Copper, And Manganese are added to this stainless steel grade alloy to enhance the overall properties. This 904L high alloy stainless steel material Bar is added with copper in small amounts for improving its resistance to strong reducing acids, like sulphuric acid, because of the addition of copper.
Characteristics of UNS NO8904 Round Bars:
These round bars having high alloy composition provide excellent resistance to pitting and corrosion in an extensive range of environments. However, the lower carbon content of SS 904L round bars helps its welding characteristics.
It is resistant to stress-related corrosion cracking and crevice corrosion in warm seawater and chlorine compounds containing environments. The addition of nickel to these alloy round bars enhances the corrosion resistance characteristics of the Stainless steel grade.
Apart from the above features of UNS NO8904 round bar delivered are excellent formability, improved toughness, and excellent weldability.
UNS NO8904 Round Bars are non-magnetic, so they can be used in applications with no magnetic activity requirement.
Application areas in which stainless steel 904L round bars are widely used are:
ASTM A-276
ASME SA-276
UNS N08904
WNR. 1.4539
Specification : ASTM A276, A479 / ASME SA276, SA479
Standard : EN, DIN, JIS, ASTM, BS, ASME, AISI
Round Bars : Outside Diameter in the range of 4mm to 500mm
Bright Bars : Outside Diameter in the range of 4mm to 100mm
Hex Bars : 18mm – 57mm (11/16″ to 2-3/4″)
Square Bars : 18mm – 47mm (11/16″ to 1-3/4″)
Finish : Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish
Length : 1 to 6 Meters, Custom Cut Lengths
Form : Round, Square, Hex (A/F), Rectangle Etc.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | KS | AFNOR | EN |
| SS 904L | 1.4539 | N08904 | SUS 890L | 904S13 | STS 317J5L | Z2 NCDU 25-20 | X1NiCrMoCu25-20-5 |
| CD | Cold drawn | P | Polished |
| BD | Bright drawn | SRE | Slit rolled edge |
| CG | Centreless ground | HF | Hot finished |
| CF | Cold finished | HRAP | Hot rolled annealed and pickled |
| P&T | Peeled and turned | RT | Rough turned/peeled |
| ST | Smooth turned | PR | Peeled and reeled |
| US Bar | Metric | Japanese | Canadian/ASTM | ||||
|---|---|---|---|---|---|---|---|
| Diameter(Inch) | Stainless Steel 904L Bar Size | Diameter (millimeter) | Stainless Steel 904L Bar Size | Diameter (millimeter) | Stainless Steel 904L Bar Size | Diameter (millimeter2) | Stainless Steel 904L Bar Size |
| 0.250 | #2 | 5 | 5 | 6 | 6 | 100 | 10M |
| 0.375 | #3 | 5.5 | 5.5 | 10 | 10 | 200 | 15M |
| 0.500 | #4 | 6 | 6 | 13 | 13 | 300 | 20M |
| 0.625 | #5 | 7 | 7 | 16 | 16 | 500 | 25M |
| 0.750 | #6 | 8 | 8 | 19 | 19 | 700 | 30M |
| 0.875 | #7 | 9 | 9 | 22 | 22 | 1000 | 35M |
| 1.000 | #8 | 10 | 10 | 25 | 25 | 1500 | 45M |
| 1.125 | #9 | 11 | 11 | 29 | 29 | 2500 | 55M |
| 1.250 | #10 | 12 | 12 | 32 | 32 | ||
| 1.375 | #11 | 14 | 14 | 35 | 35 | ||
| 1.500 | #12 | 16 | 16 | 38 | 38 | ||
| 1.625 | #13 | 18 | 18 | 41 | 41 | ||
| 1.750 | #14 | 20 | 20 | 44 | 44 | ||
| 1.875 | #15 | 22 | 22 | 48 | 48 | ||
| 2.000 | #16 | 25 | 25 | 51 | 51 | ||
| 2.250 | #18 | 28 | 28 | 57 | 57 | ||
| 32 | 32 | ||||||
| 36 | 36 | ||||||
| 40 | 40 | ||||||
| 44 | 44 | ||||||
| 50 | 50 | ||||||
| Diameter in inch | Size in inch/MM | Weight Lbs/ft & Kg/M |
|---|---|---|
| 1/16 | 0.0625 1.5875 | 0.010 / 0.01488 |
| 1/8 | 0.125 3.175 | 0.042 / 0.062496 |
| 3/32 | 0.0938 2.38252 | 0.0240 / 0.035712 |
| 5/32 | 0.1563 3.97002 | 0.065 / 0.09672 |
| 7/32 | 0.2188 5.55752 | 0.128 / 0.190464 |
| 3/16 | 0.1875 4.7625 | 0.094 / 0.139872 |
| 1/4 | 0.25 6.35 | 0.167 / 0.248496 |
| 5/16 | 0.3125 7.9375 | 0.260 / 0.38688 |
| 9/32 | 0.2813 7.14502 | 0.211 / 0.313968 |
| 3/8 | 0.375 9.525 | 0.376 / 0.559488 |
| 1/2 | 0.5 12.7 | 0.668 / 0.993984 |
| 7/16 | 0.4375 11.1125 | 0.512 / 0.761856 |
| 9/16 | 0.5625 14.2875 | 0.844 / 1.255872 |
| 11/16 | 0.6875 17.4625 | 1.264 / 1.880832 |
| 5/8 | 0.625 15.875 | 1.043 / 1.551984 |
| 3/4 | 0.75 19.05 | 1.502 / 2.234976 |
| 7/8 | 0.875 22.225 | 2.045 / 3.04296 |
| 13/16 | 0.8125 20.6375 | 1.761 / 2.620368 |
| 15/16 | 0.9375 23.8125 | 2.35 / 3.4968 |
| 1 1/16 | 1.0625 26.9875 | 3.012 / 4.481856 |
| 1 | 1 25.4 | 2.671 / 3.974448 |
| 1 1/8 | 1.125 28.575 | 3.38 / 5.02944 |
| 1 1/4 | 1.25 31.75 | 4.173 / 6.209424 |
| 1 3/16 | 1.1875 30.1625 | 3.77 / 5.60976 |
| 1 5/16 | 1.3125 33.3375 | 4.598 / 6.841824 |
HOW TO GET BEST PRICE OF SS 904L ROUND BAR ?
If looking for 904L Bars and Rod in exact length so first check ss 904L price per KG in India and calculate with wight chart before negotiating with your supplier.
| Grade | Ni | C | Mn | P | S | Si | Cr | Mo | N | Cu | |
| 904L | min. | 28.00 | 0.20 | 2.00 | 0.045 | 0.035 | 1.00 | 23.0 | 5.00 | 0.25 | 2.00 |
| max. | 23.00 | – | – | – | – | – | 19.0 | 4.00 | 0.10 | 1.00 | |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation | Hardness (Brinell) |
| SS 904L | 8 | 1300 – 1390 ℃ | 490 | 220 | 35% min | – |
We offer a broad range of ASTM A276 SS 904L Round Bars through a worldwide network of stock-keeping branches. These 904L Stainless Steel Round Bar is use in various industries like :
