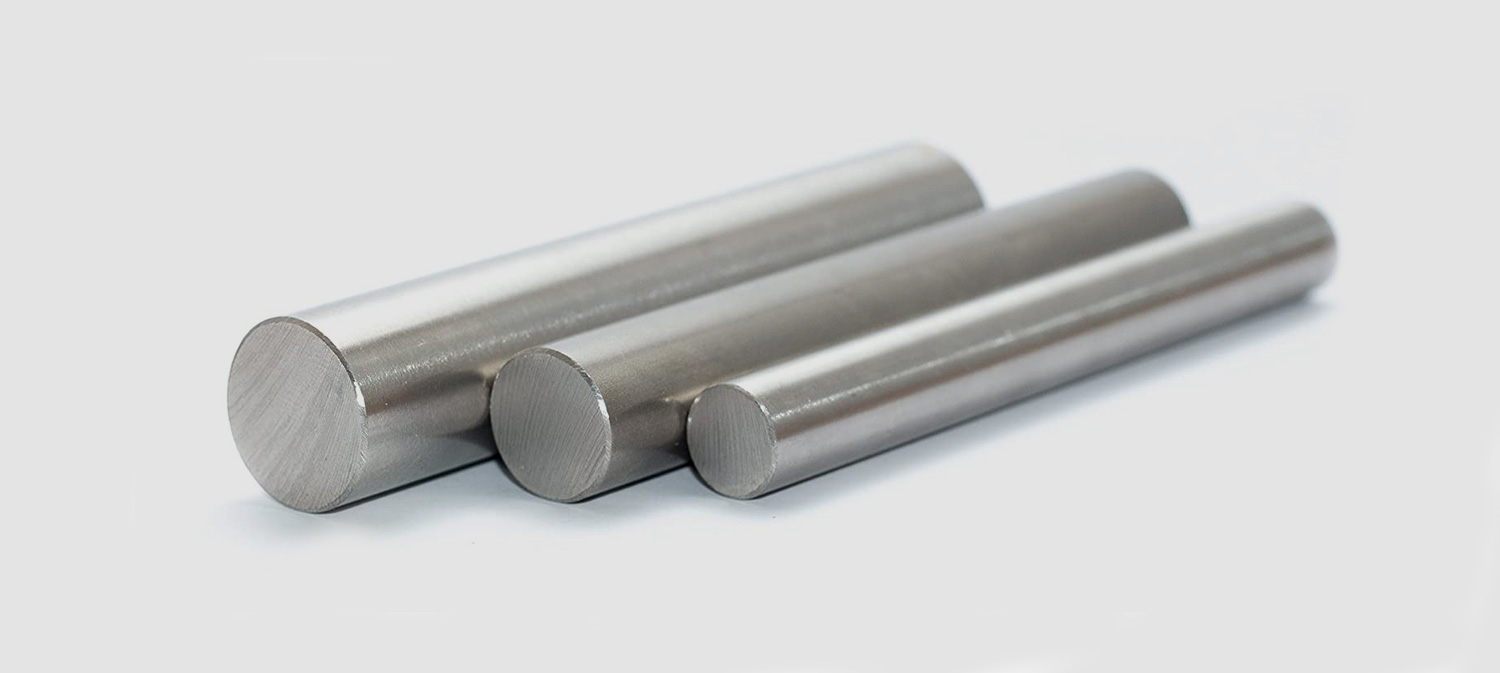

We, Steelo Fabrica, produce Stainless Steel 316L Round Bar with superior quality and unique features. It is an excellent bar selected in several applications in aggressive environments. We deal with many global industries to fulfill the requirements of standards and specifications. Our Bars are utilized in chemical processes, equipments, and thermal applications. The competency of these bars is associated with lower maintenance, higher workability, and reasonable rates. Our Bars provide longer service life, adaptability, and consistency of performance.
Table of Content
Composition of Stainless Steel 316L Round Bar:
Stainless Steel 316L is low carbon austenitic alloy containing the identical composition of grade 316 differing from the reduced Carbon value. It is a combination of Chromium-Molybdenum-Nickel with Nitrogen and Manganese. Carbon amount decreased to 0.03% maximum content tends to reduce grain boundary precipitation of carbide. Thus sensitization is eliminated. It also improves welding property efficiently, decreasing weld-heat affecting the area. The grade has wide commercial recognition and an extended applications span.
Round Bar of Stainless Steel 316L is known for:
Stainless Steel 316L Round Bar is enriched with outstanding mechanical characteristics like tensile strength, hardness, and less elongation. These rods are therefore withstanding stress conditions at extreme conditions. Elevated temperatures induce stress corrosion and oxidation that is effectively resisted by these bars. Higher melting temperature increases the thermal conductivity of bars, and less thermal expansion tends to sustainability at higher temperatures.
Execution:
Stainless Steel 316L Round Bar is resistant to corrosive media, specifically marine surroundings. It works in continuous exposure to a higher temperature where other grades tend to carbide precipitation. These bars are immune to these precipitants due to reduced carbon value. It is readily formed and shaped with superb machinability. These Bars are acid corrosion resistant in warm conditions but vulnerable in warm brine surroundings. It is cold hardened with estimable weldability, and the need for post-annealing is only required in the heavily welded area. These bars are atmospheric oxidation resistant and reduce pitting and crevice.
Utilization:
Stainless Steel 316L Round Bar is used in food, brewery, pharmaceutical, coastal architecture, shipbuilding, mining, and medical applications.
ASTM A-276
ASME SA-276
UNS S31603
WNR. 1.4404
Specification : ASTM A276, A479 / ASME SA276, SA479
Standard : EN, DIN, JIS, ASTM, BS, ASME, AISI
Round Bars : Outside Diameter in the range of 4mm to 500mm
Bright Bars : Outside Diameter in the range of 4mm to 100mm
Hex Bars : 18mm – 57mm (11/16″ to 2-3/4″)
Square Bars : 18mm – 47mm (11/16″ to 1-3/4″)
Finish : Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish
Length : 1 to 6 Meters, Custom Cut Lengths
Form : Round, Square, Hex (A/F), Rectangle Etc.
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
CD | Cold drawn | P | Polished |
BD | Bright drawn | SRE | Slit rolled edge |
CG | Centreless ground | HF | Hot finished |
CF | Cold finished | HRAP | Hot rolled annealed and pickled |
P&T | Peeled and turned | RT | Rough turned/peeled |
ST | Smooth turned | PR | Peeled and reeled |
US Bar | Metric | Japanese | Canadian/ASTM | ||||
---|---|---|---|---|---|---|---|
Diameter(Inch) | Stainless Steel 316L Bar Size | Diameter (millimeter) | Stainless Steel 316L Bar Size | Diameter (millimeter) | Stainless Steel 316L Bar Size | Diameter (millimeter2) | Stainless Steel 316L Bar Size |
0.250 | #2 | 5 | 5 | 6 | 6 | 100 | 10M |
0.375 | #3 | 5.5 | 5.5 | 10 | 10 | 200 | 15M |
0.500 | #4 | 6 | 6 | 13 | 13 | 300 | 20M |
0.625 | #5 | 7 | 7 | 16 | 16 | 500 | 25M |
0.750 | #6 | 8 | 8 | 19 | 19 | 700 | 30M |
0.875 | #7 | 9 | 9 | 22 | 22 | 1000 | 35M |
1.000 | #8 | 10 | 10 | 25 | 25 | 1500 | 45M |
1.125 | #9 | 11 | 11 | 29 | 29 | 2500 | 55M |
1.250 | #10 | 12 | 12 | 32 | 32 | ||
1.375 | #11 | 14 | 14 | 35 | 35 | ||
1.500 | #12 | 16 | 16 | 38 | 38 | ||
1.625 | #13 | 18 | 18 | 41 | 41 | ||
1.750 | #14 | 20 | 20 | 44 | 44 | ||
1.875 | #15 | 22 | 22 | 48 | 48 | ||
2.000 | #16 | 25 | 25 | 51 | 51 | ||
2.250 | #18 | 28 | 28 | 57 | 57 | ||
32 | 32 | ||||||
36 | 36 | ||||||
40 | 40 | ||||||
44 | 44 | ||||||
50 | 50 |
Diameter in inch | Size in inch/MM | Weight Lbs/ft & Kg/M |
---|---|---|
1/16 | 0.0625 1.5875 | 0.010 / 0.01488 |
1/8 | 0.125 3.175 | 0.042 / 0.062496 |
3/32 | 0.0938 2.38252 | 0.0240 / 0.035712 |
5/32 | 0.1563 3.97002 | 0.065 / 0.09672 |
7/32 | 0.2188 5.55752 | 0.128 / 0.190464 |
3/16 | 0.1875 4.7625 | 0.094 / 0.139872 |
1/4 | 0.25 6.35 | 0.167 / 0.248496 |
5/16 | 0.3125 7.9375 | 0.260 / 0.38688 |
9/32 | 0.2813 7.14502 | 0.211 / 0.313968 |
3/8 | 0.375 9.525 | 0.376 / 0.559488 |
1/2 | 0.5 12.7 | 0.668 / 0.993984 |
7/16 | 0.4375 11.1125 | 0.512 / 0.761856 |
9/16 | 0.5625 14.2875 | 0.844 / 1.255872 |
11/16 | 0.6875 17.4625 | 1.264 / 1.880832 |
5/8 | 0.625 15.875 | 1.043 / 1.551984 |
3/4 | 0.75 19.05 | 1.502 / 2.234976 |
7/8 | 0.875 22.225 | 2.045 / 3.04296 |
13/16 | 0.8125 20.6375 | 1.761 / 2.620368 |
15/16 | 0.9375 23.8125 | 2.35 / 3.4968 |
1 1/16 | 1.0625 26.9875 | 3.012 / 4.481856 |
1 | 1 25.4 | 2.671 / 3.974448 |
1 1/8 | 1.125 28.575 | 3.38 / 5.02944 |
1 1/4 | 1.25 31.75 | 4.173 / 6.209424 |
1 3/16 | 1.1875 30.1625 | 3.77 / 5.60976 |
1 5/16 | 1.3125 33.3375 | 4.598 / 6.841824 |
HOW TO GET BEST PRICE OF SS 316L ROUND BAR ?
If looking for 316L Bars and Rod in exact length so first check ss 316L price per KG in India and calculate with wight chart before negotiating with your supplier.
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 11.00 – 14.00 | 68.89 min |
Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
SS 316L | 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
We offer a broad range of ASTM A276 SS 316L Round Bars through a worldwide network of stock-keeping branches. These 316L Stainless Steel Round Bar is use in various industries like :
