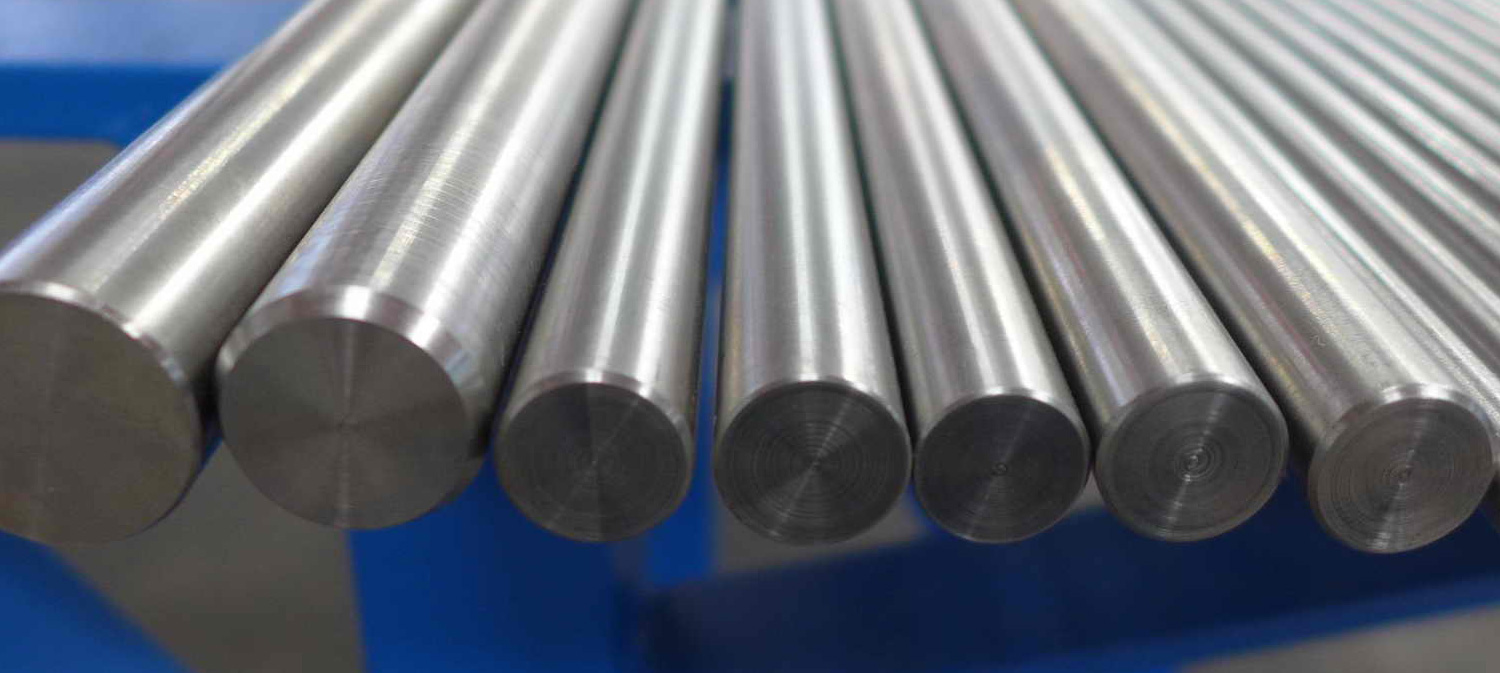

Steelo Fabrica is an established manufacturer and supplier of Stainless Steel 316Ti Round Bar. We are an exporter of these extremely demanded bars with global compliance. We offer excellent quality, efficiency, and durability of these Round Bars. Extensive sizes, designations, and specifications of these Bars are accessed with a custom cut to length benefits. Our Round Bars are largely distributed in corrosion and temperature application industries.
Stainless Steel 316Ti is Titanium deepen alloy with modification in 316 grade. The grade 316Ti is 0.5% of Titanium in the Iron-based composition of Chromium, Molybdenum, and Nickel. The alloy is improved to strength and corrosion opposing qualities. Titanium is the major element introducing the capability of a long-time high-temperature revelation and reduces the risk of sensitization. It also eliminates grain boundary precipitation without reducing the carbon value that supports the strength of the alloy.
Table of Content
Properties:
Stainless Steel 316Ti Round Bar is temperature stabilized with improved corrosion resistance. These bars are formed with excellent grade material to achieve desirable qualities. The Bar is more suitable to use in thermal conditions with excellent heat resistance and superior temperature stability. These bars possess advantageous characteristics of tensile strength, resistance to pitting, and general deterioration resistance. Higher toughness and cold hardened Bar are sustained in higher stress conditions. Intense heat and pressure are ineffective to the performance of these bars.
Stainless Steel 316Ti Round Bar is formed with first-rate accuracy and finish. It is obtained with hot rolled, cold drawn techniques, and the surface is bright, polished, or sandblasting finished. They are improved to maintain surface stability in many chemical surroundings like chlorides, acetic, hydrochloric acids, and sulphuric acids.
316Ti Round Bars are used in:
Specification : ASTM A276, A479 / ASME SA276, SA479
Standard : EN, DIN, JIS, ASTM, BS, ASME, AISI
Round Bars : Outside Diameter in the range of 4mm to 500mm
Bright Bars : Outside Diameter in the range of 4mm to 100mm
Hex Bars : 18mm – 57mm (11/16″ to 2-3/4″)
Square Bars : 18mm – 47mm (11/16″ to 1-3/4″)
Finish : Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish
Length : 1 to 6 Meters, Custom Cut Lengths
Form : Round, Square, Hex (A/F), Rectangle Etc.
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
SS 316Ti | 1.4571 | S31635 | SUS 316Ti | 320S31 | 08Ch17N13M2T | Z6CNDT17‐123 | X6CrNiMoTi17-12-2 |
CD | Cold drawn | P | Polished |
BD | Bright drawn | SRE | Slit rolled edge |
CG | Centreless ground | HF | Hot finished |
CF | Cold finished | HRAP | Hot rolled annealed and pickled |
P&T | Peeled and turned | RT | Rough turned/peeled |
ST | Smooth turned | PR | Peeled and reeled |
US Bar | Metric | Japanese | Canadian/ASTM | ||||
---|---|---|---|---|---|---|---|
Diameter(Inch) | Stainless Steel 316Ti Bar Size | Diameter (millimeter) | Stainless Steel 316Ti Bar Size | Diameter (millimeter) | Stainless Steel 316Ti Bar Size | Diameter (millimeter2) | Stainless Steel 316Ti Bar Size |
0.250 | #2 | 5 | 5 | 6 | 6 | 100 | 10M |
0.375 | #3 | 5.5 | 5.5 | 10 | 10 | 200 | 15M |
0.500 | #4 | 6 | 6 | 13 | 13 | 300 | 20M |
0.625 | #5 | 7 | 7 | 16 | 16 | 500 | 25M |
0.750 | #6 | 8 | 8 | 19 | 19 | 700 | 30M |
0.875 | #7 | 9 | 9 | 22 | 22 | 1000 | 35M |
1.000 | #8 | 10 | 10 | 25 | 25 | 1500 | 45M |
1.125 | #9 | 11 | 11 | 29 | 29 | 2500 | 55M |
1.250 | #10 | 12 | 12 | 32 | 32 | ||
1.375 | #11 | 14 | 14 | 35 | 35 | ||
1.500 | #12 | 16 | 16 | 38 | 38 | ||
1.625 | #13 | 18 | 18 | 41 | 41 | ||
1.750 | #14 | 20 | 20 | 44 | 44 | ||
1.875 | #15 | 22 | 22 | 48 | 48 | ||
2.000 | #16 | 25 | 25 | 51 | 51 | ||
2.250 | #18 | 28 | 28 | 57 | 57 | ||
32 | 32 | ||||||
36 | 36 | ||||||
40 | 40 | ||||||
44 | 44 | ||||||
50 | 50 |
Diameter in inch | Size in inch/MM | Weight Lbs/ft & Kg/M |
---|---|---|
1/16 | 0.0625 1.5875 | 0.010 / 0.01488 |
1/8 | 0.125 3.175 | 0.042 / 0.062496 |
3/32 | 0.0938 2.38252 | 0.0240 / 0.035712 |
5/32 | 0.1563 3.97002 | 0.065 / 0.09672 |
7/32 | 0.2188 5.55752 | 0.128 / 0.190464 |
3/16 | 0.1875 4.7625 | 0.094 / 0.139872 |
1/4 | 0.25 6.35 | 0.167 / 0.248496 |
5/16 | 0.3125 7.9375 | 0.260 / 0.38688 |
9/32 | 0.2813 7.14502 | 0.211 / 0.313968 |
3/8 | 0.375 9.525 | 0.376 / 0.559488 |
1/2 | 0.5 12.7 | 0.668 / 0.993984 |
7/16 | 0.4375 11.1125 | 0.512 / 0.761856 |
9/16 | 0.5625 14.2875 | 0.844 / 1.255872 |
11/16 | 0.6875 17.4625 | 1.264 / 1.880832 |
5/8 | 0.625 15.875 | 1.043 / 1.551984 |
3/4 | 0.75 19.05 | 1.502 / 2.234976 |
7/8 | 0.875 22.225 | 2.045 / 3.04296 |
13/16 | 0.8125 20.6375 | 1.761 / 2.620368 |
15/16 | 0.9375 23.8125 | 2.35 / 3.4968 |
1 1/16 | 1.0625 26.9875 | 3.012 / 4.481856 |
1 | 1 25.4 | 2.671 / 3.974448 |
1 1/8 | 1.125 28.575 | 3.38 / 5.02944 |
1 1/4 | 1.25 31.75 | 4.173 / 6.209424 |
1 3/16 | 1.1875 30.1625 | 3.77 / 5.60976 |
1 5/16 | 1.3125 33.3375 | 4.598 / 6.841824 |
HOW TO GET BEST PRICE OF SS 316Ti ROUND BAR ?
If looking for 316Ti Bars and Rod in exact length so first check ss 316Ti price per KG in India and calculate with wight chart before negotiating with your supplier.
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
SS 316Ti | 0.08 max | 2.0 max | 0.75 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.395 min |
Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
SS 316Ti | 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
We offer a broad range of ASTM A276 SS 316Ti Round Bars through a worldwide network of stock-keeping branches. These 316Ti Stainless Steel Round Bar is use in various industries like :
