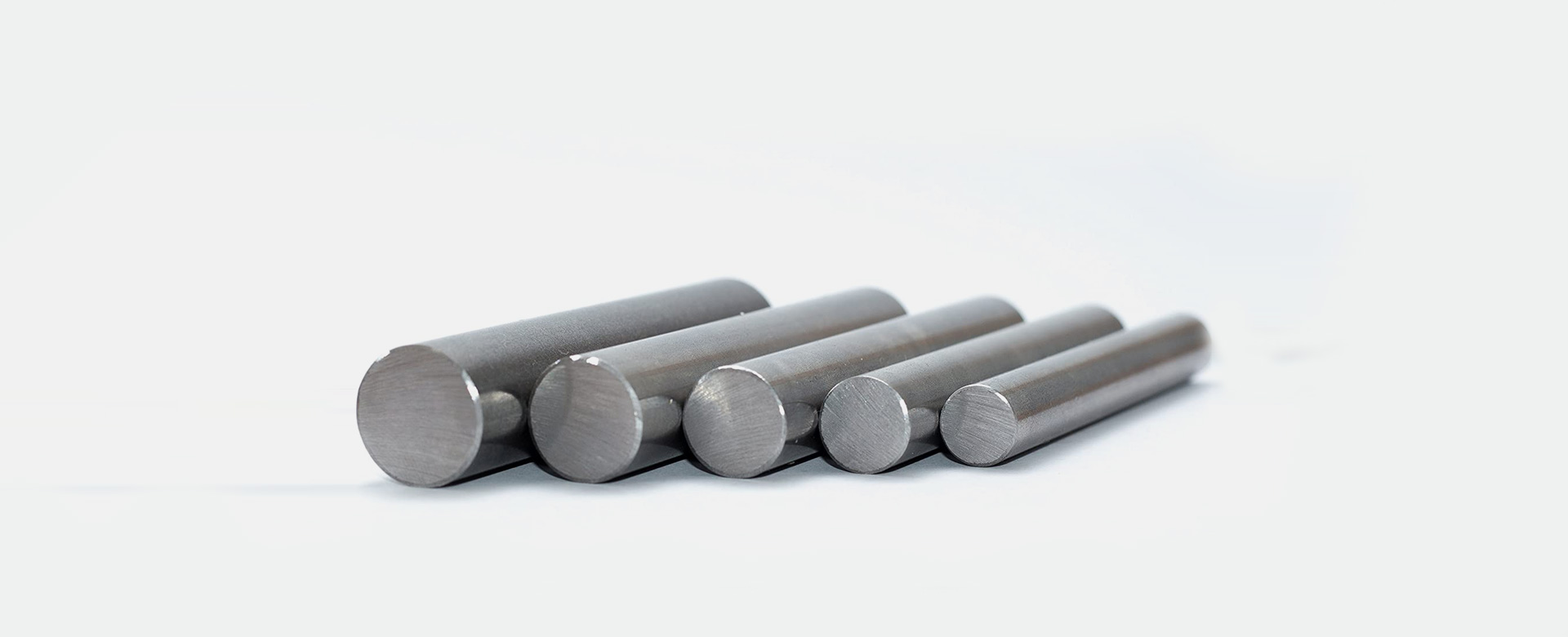

One of the best leading companies, Steelo Fabrica, manufactures Stainless steel 431 Round Bar. We ensure the best quality of the round bars needed for working sectors and their applications. The flowless and durability of these round bar is excellent.
Stainless Steel 431 grade is martensitic stainless steel. This grade is heat-treatable that comes with excellent corrosion resistance, high toughness, torque strength, and tensile properties. The properties of these Stainless Steel 431 grades make them round bar for bolt and shaft applications.
Table of Content
Characteristics of Stainless steel 431 Round Bar:
All these characteristics make these bars ideal for different applications. These Stainless steel 431 Round Bars can be used in critical applications, and they work great with all sorts of applications.
We also manufacture this Stainless steel 431 Round Bar in customized forms, and their thicknesses are also offered as per the demands of applications. The modulus of elasticity, electrical resistivity, density and element is the physical properties offered by our Stainless steel 431 Round Bar.
Stainless steel 431 is then hardened and tempered, but it will be extremely difficult at the time of supplied condition due to the high yield strength. Hence these Stainless steel 431Round Bars are used in all circumstances in such as hardened and tempered ones.
Typical applications of Stainless steel 431 Round Bar include the following:
Manufacturing of these Stainless steel 431 Round Bar is done by using the procedures such as hardening, tempering and weldability. These bars are great for the procedures such as deep drawing, spinning, bending and cold heading. These are the different procedures that are flexibly done by Stainless steel 431 Round Bar.
Stainless steel 431 Round Bar contains a higher carbon content; hence it has a higher hardening capability and greater risk of cracking heating and temperature control during welding. Besides, these bars are slow cooling, and post-weld annealing is the best method to prevent cracking.
Specification : ASTM A276, A479 / ASME SA276, SA479
Standard : EN, DIN, JIS, ASTM, BS, ASME, AISI
Round Bars : Outside Diameter in the range of 4mm to 500mm
Bright Bars : Outside Diameter in the range of 4mm to 100mm
Hex Bars : 18mm – 57mm (11/16″ to 2-3/4″)
Square Bars : 18mm – 47mm (11/16″ to 1-3/4″)
Finish : Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish
Length : 1 to 6 Meters, Custom Cut Lengths
Form : Round, Square, Hex (A/F), Rectangle Etc.
| STANDARD | WERKSTOFF NR. | UNS | GOST | EN | AFNOR | JIS | BS |
| SS 431 | 1.4057 | S43100 | – | 57 | – | SUS 431 |
431S29 |
| CD | Cold drawn | P | Polished |
| BD | Bright drawn | SRE | Slit rolled edge |
| CG | Centreless ground | HF | Hot finished |
| CF | Cold finished | HRAP | Hot rolled annealed and pickled |
| P&T | Peeled and turned | RT | Rough turned/peeled |
| ST | Smooth turned | PR | Peeled and reeled |
| US Bar | Metric | Japanese | Canadian/ASTM | ||||
|---|---|---|---|---|---|---|---|
| Diameter(Inch) | Stainless Steel 431 Bar Size | Diameter (millimeter) | Stainless Steel 431 Bar Size | Diameter (millimeter) | Stainless Steel 431 Bar Size | Diameter (millimeter2) | Stainless Steel 431 Bar Size |
| 0.250 | #2 | 5 | 5 | 6 | 6 | 100 | 10M |
| 0.375 | #3 | 5.5 | 5.5 | 10 | 10 | 200 | 15M |
| 0.500 | #4 | 6 | 6 | 13 | 13 | 300 | 20M |
| 0.625 | #5 | 7 | 7 | 16 | 16 | 500 | 25M |
| 0.750 | #6 | 8 | 8 | 19 | 19 | 700 | 30M |
| 0.875 | #7 | 9 | 9 | 22 | 22 | 1000 | 35M |
| 1.000 | #8 | 10 | 10 | 25 | 25 | 1500 | 45M |
| 1.125 | #9 | 11 | 11 | 29 | 29 | 2500 | 55M |
| 1.250 | #10 | 12 | 12 | 32 | 32 | ||
| 1.375 | #11 | 14 | 14 | 35 | 35 | ||
| 1.500 | #12 | 16 | 16 | 38 | 38 | ||
| 1.625 | #13 | 18 | 18 | 41 | 41 | ||
| 1.750 | #14 | 20 | 20 | 44 | 44 | ||
| 1.875 | #15 | 22 | 22 | 48 | 48 | ||
| 2.000 | #16 | 25 | 25 | 51 | 51 | ||
| 2.250 | #18 | 28 | 28 | 57 | 57 | ||
| 32 | 32 | ||||||
| 36 | 36 | ||||||
| 40 | 40 | ||||||
| 44 | 44 | ||||||
| 50 | 50 | ||||||
| Diameter in inch | Size in inch/MM | Weight Lbs/ft & Kg/M |
|---|---|---|
| 1/16 | 0.0625 1.5875 | 0.010 / 0.01488 |
| 1/8 | 0.125 3.175 | 0.042 / 0.062496 |
| 3/32 | 0.0938 2.38252 | 0.0240 / 0.035712 |
| 5/32 | 0.1563 3.97002 | 0.065 / 0.09672 |
| 7/32 | 0.2188 5.55752 | 0.128 / 0.190464 |
| 3/16 | 0.1875 4.7625 | 0.094 / 0.139872 |
| 1/4 | 0.25 6.35 | 0.167 / 0.248496 |
| 5/16 | 0.3125 7.9375 | 0.260 / 0.38688 |
| 9/32 | 0.2813 7.14502 | 0.211 / 0.313968 |
| 3/8 | 0.375 9.525 | 0.376 / 0.559488 |
| 1/2 | 0.5 12.7 | 0.668 / 0.993984 |
| 7/16 | 0.4375 11.1125 | 0.512 / 0.761856 |
| 9/16 | 0.5625 14.2875 | 0.844 / 1.255872 |
| 11/16 | 0.6875 17.4625 | 1.264 / 1.880832 |
| 5/8 | 0.625 15.875 | 1.043 / 1.551984 |
| 3/4 | 0.75 19.05 | 1.502 / 2.234976 |
| 7/8 | 0.875 22.225 | 2.045 / 3.04296 |
| 13/16 | 0.8125 20.6375 | 1.761 / 2.620368 |
| 15/16 | 0.9375 23.8125 | 2.35 / 3.4968 |
| 1 1/16 | 1.0625 26.9875 | 3.012 / 4.481856 |
| 1 | 1 25.4 | 2.671 / 3.974448 |
| 1 1/8 | 1.125 28.575 | 3.38 / 5.02944 |
| 1 1/4 | 1.25 31.75 | 4.173 / 6.209424 |
| 1 3/16 | 1.1875 30.1625 | 3.77 / 5.60976 |
| 1 5/16 | 1.3125 33.3375 | 4.598 / 6.841824 |
HOW TO GET BEST PRICE OF SS 431 ROUND BAR ?
If looking for 431 Bars and Rod in exact length so first check ss 431 price per KG in India and calculate with wight chart before negotiating with your supplier.
| Grade | C | Mn | Si | P | S | Cr | Ni |
| SS 431 | 0.20 max | 1.00 max | 1.00 max | 0.040 max | 0.030 max | 15.00 – 17.00 | 1.25 – 2.50 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7800 kg/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
We offer a broad range of ASTM A276 SS 431 Round Bars through a worldwide network of stock-keeping branches. These 431 Stainless Steel Round Bar is use in various industries like :
