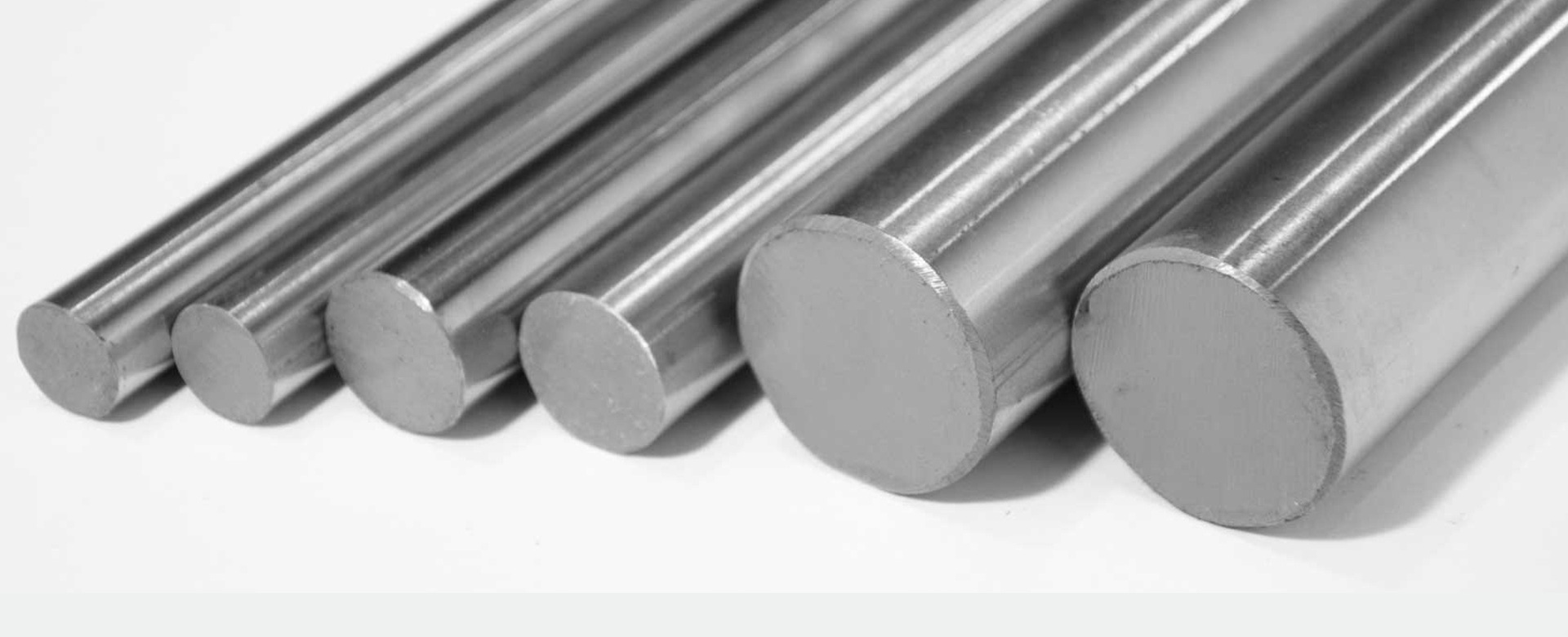

Steelo Fabrica’s stainless steel 440C round bars are best in the industrial sector. We offer a high-quality manufacturer and Supplier product with affordable prices used in a wide range of application industries.
Main Composition:
These are the main components comprised of the stainless steel 440C composition.
Table of Content
Properties of stainless steel 440C round bar:
This 440C grade round bar has the property that it is very easily air-hardened. For welding on this alloy, these 440C round bars should be preheated to a temperature of 260-degree Celsius. In order to post welding treatment, the alloy should be heated between the temperature of 732 -760 degrees Celsius for 6 hours.
In order to Hot Work this 440C Stainless Steel round bar, it is preheated to a temperature of 760 degrees Celsius. During hot working treatment, the temperature can gradually be increased up to a range of 1038 – 1204 degrees Celsius.
Annealing the 440C round Bar can be performed between the temperature ranges of 843-871 degrees Celsius, followed by slowly cooling in the furnace.
Same as that of hot working procedure, the temperature at the time of hardening can be increased up to 1010 degrees Celsius, followed by cooling in air or oil.
However, these stainless steel 440C round Bars exhibit excellent characteristics to work under normal and abnormal conditions. Thus, these rods are able to resist chlorine, oxidizing media, and other critical situations. They do not undergo crevice, pitting, and stress cracking corrosion, mostly desired by the aqueous and saltwater industries.
Application sectors of stainless steel 440C round bars:
Stainless steel 440C round bars can be able to work under conditions of a high temperature, pressure, chemical media, oxidizing media, aggressive chlorine environments, and such applications include:
ASTM A-276
ASME SA-276
UNS S44004
WNR. 1.4125
Specification : ASTM A276, A479 / ASME SA276, SA479
Standard : EN, DIN, JIS, ASTM, BS, ASME, AISI
Round Bars : Outside Diameter in the range of 4mm to 500mm
Bright Bars : Outside Diameter in the range of 4mm to 100mm
Hex Bars : 18mm – 57mm (11/16″ to 2-3/4″)
Square Bars : 18mm – 47mm (11/16″ to 1-3/4″)
Finish : Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish
Length : 1 to 6 Meters, Custom Cut Lengths
Form : Round, Square, Hex (A/F), Rectangle Etc.
| STANDARD | WERKSTOFF NR. | UNS | JIS |
| SS 440C | 1.4125 | S44004 | SUS 440C |
| CD | Cold drawn | P | Polished |
| BD | Bright drawn | SRE | Slit rolled edge |
| CG | Centreless ground | HF | Hot finished |
| CF | Cold finished | HRAP | Hot rolled annealed and pickled |
| P&T | Peeled and turned | RT | Rough turned/peeled |
| ST | Smooth turned | PR | Peeled and reeled |
| US Bar | Metric | Japanese | Canadian/ASTM | ||||
|---|---|---|---|---|---|---|---|
| Diameter(Inch) | Stainless Steel 440C Bar Size | Diameter (millimeter) | Stainless Steel 440C Bar Size | Diameter (millimeter) | Stainless Steel 440C Bar Size | Diameter (millimeter2) | Stainless Steel 440C Bar Size |
| 0.250 | #2 | 5 | 5 | 6 | 6 | 100 | 10M |
| 0.375 | #3 | 5.5 | 5.5 | 10 | 10 | 200 | 15M |
| 0.500 | #4 | 6 | 6 | 13 | 13 | 300 | 20M |
| 0.625 | #5 | 7 | 7 | 16 | 16 | 500 | 25M |
| 0.750 | #6 | 8 | 8 | 19 | 19 | 700 | 30M |
| 0.875 | #7 | 9 | 9 | 22 | 22 | 1000 | 35M |
| 1.000 | #8 | 10 | 10 | 25 | 25 | 1500 | 45M |
| 1.125 | #9 | 11 | 11 | 29 | 29 | 2500 | 55M |
| 1.250 | #10 | 12 | 12 | 32 | 32 | ||
| 1.375 | #11 | 14 | 14 | 35 | 35 | ||
| 1.500 | #12 | 16 | 16 | 38 | 38 | ||
| 1.625 | #13 | 18 | 18 | 41 | 41 | ||
| 1.750 | #14 | 20 | 20 | 44 | 44 | ||
| 1.875 | #15 | 22 | 22 | 48 | 48 | ||
| 2.000 | #16 | 25 | 25 | 51 | 51 | ||
| 2.250 | #18 | 28 | 28 | 57 | 57 | ||
| 32 | 32 | ||||||
| 36 | 36 | ||||||
| 40 | 40 | ||||||
| 44 | 44 | ||||||
| 50 | 50 | ||||||
| Diameter in inch | Size in inch/MM | Weight Lbs/ft & Kg/M |
|---|---|---|
| 1/16 | 0.0625 1.5875 | 0.010 / 0.01488 |
| 1/8 | 0.125 3.175 | 0.042 / 0.062496 |
| 3/32 | 0.0938 2.38252 | 0.0240 / 0.035712 |
| 5/32 | 0.1563 3.97002 | 0.065 / 0.09672 |
| 7/32 | 0.2188 5.55752 | 0.128 / 0.190464 |
| 3/16 | 0.1875 4.7625 | 0.094 / 0.139872 |
| 1/4 | 0.25 6.35 | 0.167 / 0.248496 |
| 5/16 | 0.3125 7.9375 | 0.260 / 0.38688 |
| 9/32 | 0.2813 7.14502 | 0.211 / 0.313968 |
| 3/8 | 0.375 9.525 | 0.376 / 0.559488 |
| 1/2 | 0.5 12.7 | 0.668 / 0.993984 |
| 7/16 | 0.4375 11.1125 | 0.512 / 0.761856 |
| 9/16 | 0.5625 14.2875 | 0.844 / 1.255872 |
| 11/16 | 0.6875 17.4625 | 1.264 / 1.880832 |
| 5/8 | 0.625 15.875 | 1.043 / 1.551984 |
| 3/4 | 0.75 19.05 | 1.502 / 2.234976 |
| 7/8 | 0.875 22.225 | 2.045 / 3.04296 |
| 13/16 | 0.8125 20.6375 | 1.761 / 2.620368 |
| 15/16 | 0.9375 23.8125 | 2.35 / 3.4968 |
| 1 1/16 | 1.0625 26.9875 | 3.012 / 4.481856 |
| 1 | 1 25.4 | 2.671 / 3.974448 |
| 1 1/8 | 1.125 28.575 | 3.38 / 5.02944 |
| 1 1/4 | 1.25 31.75 | 4.173 / 6.209424 |
| 1 3/16 | 1.1875 30.1625 | 3.77 / 5.60976 |
| 1 5/16 | 1.3125 33.3375 | 4.598 / 6.841824 |
HOW TO GET BEST PRICE OF SS 440C ROUND BAR ?
If looking for 440C Bars and Rod in exact length so first check ss 440C price per KG in India and calculate with wight chart before negotiating with your supplier.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni |
| SS 440C | 1.20 max | 1 max | 1 max | 0.04 max | 0.03 min | 16 – 18 | 0 – 0.75 | 1 max |
| Element | Temp°C | Tensile (UTS)N/mm² | 0.2% YieldN/mm² | Elongation(50.8mm) %) | HardnessHRc | Reductionof Area |
| SS 440C | 20 | 1965 | 1896 | 2 | 57 | 10 |
We offer a broad range of ASTM A276 SS 440C Round Bars through a worldwide network of stock-keeping branches. These 440C Stainless Steel Round Bar is use in various industries like :
