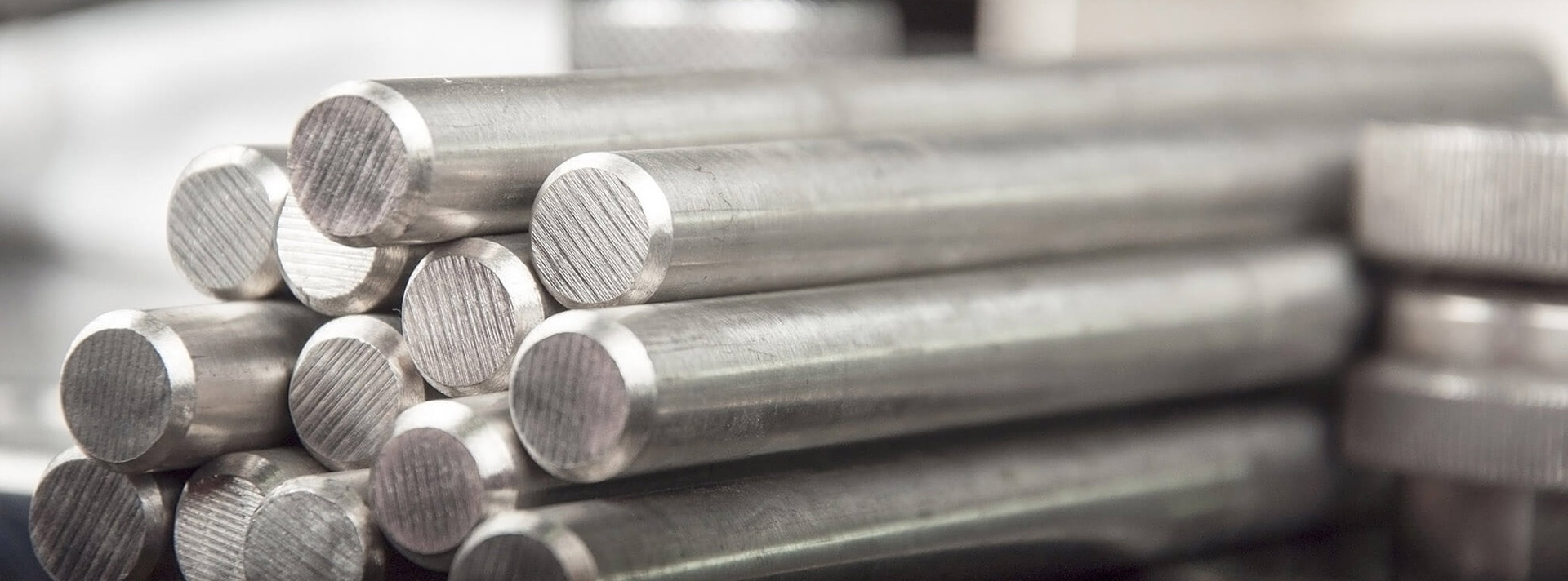

Steelo Fabrica Company is a trustworthy distributor of Stainless Steel 17-4ph Round Bars. We are specialists in producing these round bars. Our company only offers exclusive quality products. We use top quality raw materials for the development of these bars. We purchase these materials from well-known suppliers. Before start the manufacturing process, we check materials. We supply different standards, grades and specifications of these round bars at an attractive price. Our manufacturing plant is well equipped with the latest machinery and tools that help us to make the production in a better way.
What is the chemical composition of Stainless steel 17-4 PH Round Bar?
Stainless steel 17-4ph holds a maximum amount of chromium, nickel and copper. It also contains a minimum of carbon, silicon molybdenum and titanium.
Table of Content
Attributes of Stainless Steel 17-4 PH Round Bar:
These elements provide simple shape, reliability, ease of manufacture, weldability, etc. This Stainless-Steel alloy has mechanical properties. Stainless Steel 17-4ph Round Bars has corrosion resistance at high temperatures. Our company delivering these Round Bars has outstanding corrosion resistance, and it also shows resistance to oxidation in reducing media. These round bars have resistance to chloride corrosion and stress cracking corrosion at high temperatures. The round bars provide high strength and mechanical property due to nickel and chromium alloy. Stainless steel 17-4 Ph round bar features resistance to pitting, cracking, erosion and other environmental rust. These round bars shows resistance to acids in chemical environments. It has good ductility, traction, efficiency and mechanical strength.
Stainless steel 17-4 PH Round bar has various features:
Applications of Stainless steel 17-4 PH Round Bar:
Stainless steel 17-4 PH round rods are used in automotive industry, offshore industry, power generation, pulp, paper industry, etc. It is also used in seawater, marine, chemical, petrochemical and construction applications.
Specification : ASTM A564 / ASME SA564
Standard : EN, DIN, JIS, ASTM, BS, ASME, AISI
Round Bars : Outside Diameter in the range of 4mm to 500mm
Bright Bars : Outside Diameter in the range of 4mm to 100mm
Hex Bars : 18mm – 57mm (11/16″ to 2-3/4″)
Square Bars : 18mm – 47mm (11/16″ to 1-3/4″)
Finish : Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish
Length : 1 to 6 Meters, Custom Cut Lengths
Form : Round, Square, Hex (A/F), Rectangle Etc.
STANDARD | WERKSTOFF NR. | UNS | JIS | AFNOR | EN |
SS 17-4PH | 1.4542 | S17400 | SUS 630 | Z6CNU17-04 | X5CrNiCuNb16.4 |
CD | Cold drawn | P | Polished |
BD | Bright drawn | SRE | Slit rolled edge |
CG | Centreless ground | HF | Hot finished |
CF | Cold finished | HRAP | Hot rolled annealed and pickled |
P&T | Peeled and turned | RT | Rough turned/peeled |
ST | Smooth turned | PR | Peeled and reeled |
US Bar | Metric | Japanese | Canadian/ASTM | ||||
---|---|---|---|---|---|---|---|
Diameter(Inch) | Stainless Steel 17-4PH Bar Size | Diameter (millimeter) | Stainless Steel 17-4PH Bar Size | Diameter (millimeter) | Stainless Steel 17-4PH Bar Size | Diameter (millimeter2) | Stainless Steel 17-4PH Bar Size |
0.250 | #2 | 5 | 5 | 6 | 6 | 100 | 10M |
0.375 | #3 | 5.5 | 5.5 | 10 | 10 | 200 | 15M |
0.500 | #4 | 6 | 6 | 13 | 13 | 300 | 20M |
0.625 | #5 | 7 | 7 | 16 | 16 | 500 | 25M |
0.750 | #6 | 8 | 8 | 19 | 19 | 700 | 30M |
0.875 | #7 | 9 | 9 | 22 | 22 | 1000 | 35M |
1.000 | #8 | 10 | 10 | 25 | 25 | 1500 | 45M |
1.125 | #9 | 11 | 11 | 29 | 29 | 2500 | 55M |
1.250 | #10 | 12 | 12 | 32 | 32 | ||
1.375 | #11 | 14 | 14 | 35 | 35 | ||
1.500 | #12 | 16 | 16 | 38 | 38 | ||
1.625 | #13 | 18 | 18 | 41 | 41 | ||
1.750 | #14 | 20 | 20 | 44 | 44 | ||
1.875 | #15 | 22 | 22 | 48 | 48 | ||
2.000 | #16 | 25 | 25 | 51 | 51 | ||
2.250 | #18 | 28 | 28 | 57 | 57 | ||
32 | 32 | ||||||
36 | 36 | ||||||
40 | 40 | ||||||
44 | 44 | ||||||
50 | 50 |
Diameter in inch | Size in inch/MM | Weight Lbs/ft & Kg/M |
---|---|---|
1/16 | 0.0625 1.5875 | 0.010 / 0.01488 |
1/8 | 0.125 3.175 | 0.042 / 0.062496 |
3/32 | 0.0938 2.38252 | 0.0240 / 0.035712 |
5/32 | 0.1563 3.97002 | 0.065 / 0.09672 |
7/32 | 0.2188 5.55752 | 0.128 / 0.190464 |
3/16 | 0.1875 4.7625 | 0.094 / 0.139872 |
1/4 | 0.25 6.35 | 0.167 / 0.248496 |
5/16 | 0.3125 7.9375 | 0.260 / 0.38688 |
9/32 | 0.2813 7.14502 | 0.211 / 0.313968 |
3/8 | 0.375 9.525 | 0.376 / 0.559488 |
1/2 | 0.5 12.7 | 0.668 / 0.993984 |
7/16 | 0.4375 11.1125 | 0.512 / 0.761856 |
9/16 | 0.5625 14.2875 | 0.844 / 1.255872 |
11/16 | 0.6875 17.4625 | 1.264 / 1.880832 |
5/8 | 0.625 15.875 | 1.043 / 1.551984 |
3/4 | 0.75 19.05 | 1.502 / 2.234976 |
7/8 | 0.875 22.225 | 2.045 / 3.04296 |
13/16 | 0.8125 20.6375 | 1.761 / 2.620368 |
15/16 | 0.9375 23.8125 | 2.35 / 3.4968 |
1 1/16 | 1.0625 26.9875 | 3.012 / 4.481856 |
1 | 1 25.4 | 2.671 / 3.974448 |
1 1/8 | 1.125 28.575 | 3.38 / 5.02944 |
1 1/4 | 1.25 31.75 | 4.173 / 6.209424 |
1 3/16 | 1.1875 30.1625 | 3.77 / 5.60976 |
1 5/16 | 1.3125 33.3375 | 4.598 / 6.841824 |
HOW TO GET BEST PRICE OF SS 17-4PH ROUND BAR ?
If looking for 17-4PH Bars and Rod in exact length so first check SS 17-4PH price per KG in India and calculate with wight chart before negotiating with your supplier.
Grade | C | Mn | Si | P | S | Cr | Mo |
SS 17-4PH | 0.07 max | 1.0 max | 1.0 max | .07 max | .03 max | 17.5 – 15.0 | .05 |
Ultimate Tensile Strength, psi | Yield Strength, psi | Elongation | Rockwell Hardness |
160,000 | 145,000 | 5% | C35 |
We offer a broad range of ASTM A564 SS 17-4PH Round Bars through a worldwide network of stock-keeping branches. These 17-4PH Stainless Steel Round Bar is use in various industries like :
