Steelo Fabrica Company is a prominent developer of Stainless steel 15-5 PH Round Bars. We are export these round bars to an overseas country. We provide these round bars as per requirements for applications. At Steel Fabrica Company, we use high grade raw materials. Our company buy these raw materials from reputable suppliers. The client gets these best quality round bars at a reasonable price. We use stainless steel alloy, which is highly resistant to corrosion and rust.
Table of Content
Why is stainless steel 15-5 PH alloy used?
PH indicates precipitation hardened alloy. These Stainless Steel 15-5 PH alloy shows resistance to corrosion. After heat treatment, the tensile strength and yield strength of this alloy are increased. This alloy is used in industries like oil and gas, nuclear, and aerospace industries. The content chromium and nickel were added to the stainless steel 15-5 PH Round bars. This alloy is easily weldable, and it is possible to the machine. This Stainless steel 15-5 PH alloy has high toughness.

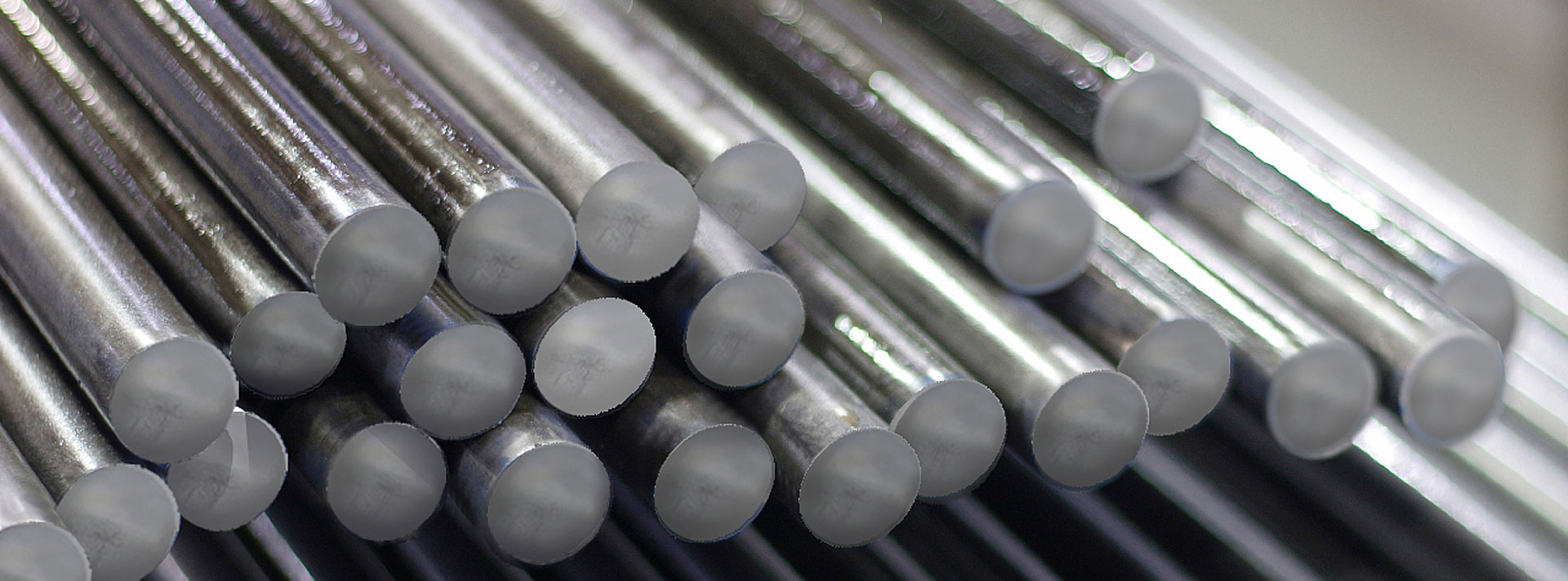

Description of Stainless steel 15-5 PH round bars:
These round bars have good mechanical properties such as reduction of area, elongation, and Brinell hardness. This steel has transverse toughness and flexibility, and hardness capability. 15-5 PH Stainless Steel, as indicated by laboratory tests, shows resistance in both strongly oxidizing and reducing media, as well as by atmospheric exposures. This alloy has good fabrication properties. Fabrication of this alloy can be improved by heat treatment. The manufacturing process of this round bar is machined, forged, and heat treatment. We design Stainless steel 15-5 ph Round bars with various specifications such as dimensions, grade, finish, form and surface.
Applications of Stainless steel 15-5 PH Round Bars:
There are some applications where Stainless steel 15-5 PH round bars are used. The applications are paper mill equipment, engine parts, aircraft components, and fittings, and fasteners.
ASTM A-564
ASME SA-564
UNS S15500
WNR. 1.4545
Specification : ASTM A564 / ASME SA564
Standard : EN, DIN, JIS, ASTM, BS, ASME, AISI
Round Bars : Outside Diameter in the range of 4mm to 500mm
Bright Bars : Outside Diameter in the range of 4mm to 100mm
Hex Bars : 18mm – 57mm (11/16″ to 2-3/4″)
Square Bars : 18mm – 47mm (11/16″ to 1-3/4″)
Finish : Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish
Length : 1 to 6 Meters, Custom Cut Lengths
Form : Round, Square, Hex (A/F), Rectangle Etc.
| STANDARD | WERKSTOFF NR. | UNS |
| SS 15-5PH | 1.4545 | S15500 |
| CD | Cold drawn | P | Polished |
| BD | Bright drawn | SRE | Slit rolled edge |
| CG | Centreless ground | HF | Hot finished |
| CF | Cold finished | HRAP | Hot rolled annealed and pickled |
| P&T | Peeled and turned | RT | Rough turned/peeled |
| ST | Smooth turned | PR | Peeled and reeled |
| US Bar | Metric | Japanese | Canadian/ASTM | ||||
|---|---|---|---|---|---|---|---|
| Diameter(Inch) | Stainless Steel 15-5 PH Bar Size | Diameter (millimeter) | Stainless Steel 15-5 PH Bar Size | Diameter (millimeter) | Stainless Steel 15-5 PH Bar Size | Diameter (millimeter2) | Stainless Steel 15-5 PH Bar Size |
| 0.250 | #2 | 5 | 5 | 6 | 6 | 100 | 10M |
| 0.375 | #3 | 5.5 | 5.5 | 10 | 10 | 200 | 15M |
| 0.500 | #4 | 6 | 6 | 13 | 13 | 300 | 20M |
| 0.625 | #5 | 7 | 7 | 16 | 16 | 500 | 25M |
| 0.750 | #6 | 8 | 8 | 19 | 19 | 700 | 30M |
| 0.875 | #7 | 9 | 9 | 22 | 22 | 1000 | 35M |
| 1.000 | #8 | 10 | 10 | 25 | 25 | 1500 | 45M |
| 1.125 | #9 | 11 | 11 | 29 | 29 | 2500 | 55M |
| 1.250 | #10 | 12 | 12 | 32 | 32 | ||
| 1.375 | #11 | 14 | 14 | 35 | 35 | ||
| 1.500 | #12 | 16 | 16 | 38 | 38 | ||
| 1.625 | #13 | 18 | 18 | 41 | 41 | ||
| 1.750 | #14 | 20 | 20 | 44 | 44 | ||
| 1.875 | #15 | 22 | 22 | 48 | 48 | ||
| 2.000 | #16 | 25 | 25 | 51 | 51 | ||
| 2.250 | #18 | 28 | 28 | 57 | 57 | ||
| 32 | 32 | ||||||
| 36 | 36 | ||||||
| 40 | 40 | ||||||
| 44 | 44 | ||||||
| 50 | 50 | ||||||
| Diameter in inch | Size in inch/MM | Weight Lbs/ft & Kg/M |
|---|---|---|
| 1/16 | 0.0625 1.5875 | 0.010 / 0.01488 |
| 1/8 | 0.125 3.175 | 0.042 / 0.062496 |
| 3/32 | 0.0938 2.38252 | 0.0240 / 0.035712 |
| 5/32 | 0.1563 3.97002 | 0.065 / 0.09672 |
| 7/32 | 0.2188 5.55752 | 0.128 / 0.190464 |
| 3/16 | 0.1875 4.7625 | 0.094 / 0.139872 |
| 1/4 | 0.25 6.35 | 0.167 / 0.248496 |
| 5/16 | 0.3125 7.9375 | 0.260 / 0.38688 |
| 9/32 | 0.2813 7.14502 | 0.211 / 0.313968 |
| 3/8 | 0.375 9.525 | 0.376 / 0.559488 |
| 1/2 | 0.5 12.7 | 0.668 / 0.993984 |
| 7/16 | 0.4375 11.1125 | 0.512 / 0.761856 |
| 9/16 | 0.5625 14.2875 | 0.844 / 1.255872 |
| 11/16 | 0.6875 17.4625 | 1.264 / 1.880832 |
| 5/8 | 0.625 15.875 | 1.043 / 1.551984 |
| 3/4 | 0.75 19.05 | 1.502 / 2.234976 |
| 7/8 | 0.875 22.225 | 2.045 / 3.04296 |
| 13/16 | 0.8125 20.6375 | 1.761 / 2.620368 |
| 15/16 | 0.9375 23.8125 | 2.35 / 3.4968 |
| 1 1/16 | 1.0625 26.9875 | 3.012 / 4.481856 |
| 1 | 1 25.4 | 2.671 / 3.974448 |
| 1 1/8 | 1.125 28.575 | 3.38 / 5.02944 |
| 1 1/4 | 1.25 31.75 | 4.173 / 6.209424 |
| 1 3/16 | 1.1875 30.1625 | 3.77 / 5.60976 |
| 1 5/16 | 1.3125 33.3375 | 4.598 / 6.841824 |
HOW TO GET BEST PRICE OF SS 15-5 PH ROUND BAR ?
If looking for 15-5 PH Bars and Rod in exact length so first check SS 15-5 PH price per KG in India and calculate with wight chart before negotiating with your supplier.
| Grade | C | Mn | Si | P | S | Cr | Cb+Ta |
| SS 15-5PH | .07 max | 1.0 max | 1.0 max | .04 max | .03 max | 15.5 – 14.0 | .45 – .15 |
| Ultimate Tensile Strength, psi | Yield Strength, psi | Elongation | Rockwell Hardness |
| 161,000 | 140,000 | 7.6% | C35 |
We offer a broad range of ASTM A564 SS 15-5 PH Round Bars through a worldwide network of stock-keeping branches. These 15-5 PH Stainless Steel Round Bar is use in various industries like :
