Steelo Fabrica is the most famous manufacturer in the market. We manufacture and supply high quality Phosphor Bronze Rods. We produce these UNS C51000 round bars in different sizes, lengths and as per the request of our clients. We also export phosphor bronze rods, which have become highly popular in markets the world over. We use pure materials to develop these rods.
What is Phosphor Bronze alloy?
This alloy is a member of the copper family, and it contains copper with tin and phosphorous. This alloy has a reddish-orange color. This alloy is very low cost and has many properties. This alloy is mostly used in many applications due to its properties like high fatigue resistance, excellent formability and high corrosion resistance, and Tin content that increases the strength and corrosion resistance properties of this alloy. Phosphor increases the wear resistance and hardness of the alloy. Our company use this alloy to produce rods.
Wide Range of Phosphor Bronze CDA 510 Bar, AMS 4625 Phosphor Bronze CDA 510 Round Bar Suppliers, Phosphor Bronze PB102 Round Bar, ASME SB139 Phosphor Bronze C51000 Rods, CDA 510 Rod, ASTM B139 Phosphor Bronze C510 Round Rod, Phosphor Bronze PB 102 Bars, CuSn5 Round Bars, C51000 Phosphor Bronze Round Bars Supplier in Mumbai, India.
Table of Content
- About Phosphor Bronze C51000 Round Bar Manufacturer
- Phosphor Bronze C51000 Round Bars Specification
- Equivalent Grades of Phosphor Bronze C51000 Round Bars
- Most Selling Types Of Phosphor Bronze C51000 Round Bars
- C51000 Phosphor Bronze Round Bar Sizes
- UNS C51000 Phosphor Bronze Hex Bar Sizes
- CDA 510 Phosphor Bronze Hollow Bar Sizes
- Phosphor Bronze C51000 Square Bar Sizes
- C51000 Phosphor Bronze Alloy Flat Bar Sizes
- Phosphor Bronze C51000 Round Bar Weight Chart
- C51000 Phosphor Bronze Round Rod Chemical Composition Chart
- Phosphor Bronze C51000 Round Rod Mechanical Properties
- Different Types of Phosphor Bronze C51000 Round Bar
- Phosphor Bronze UNS C51000 Round Bar and Rod Applications and Uses

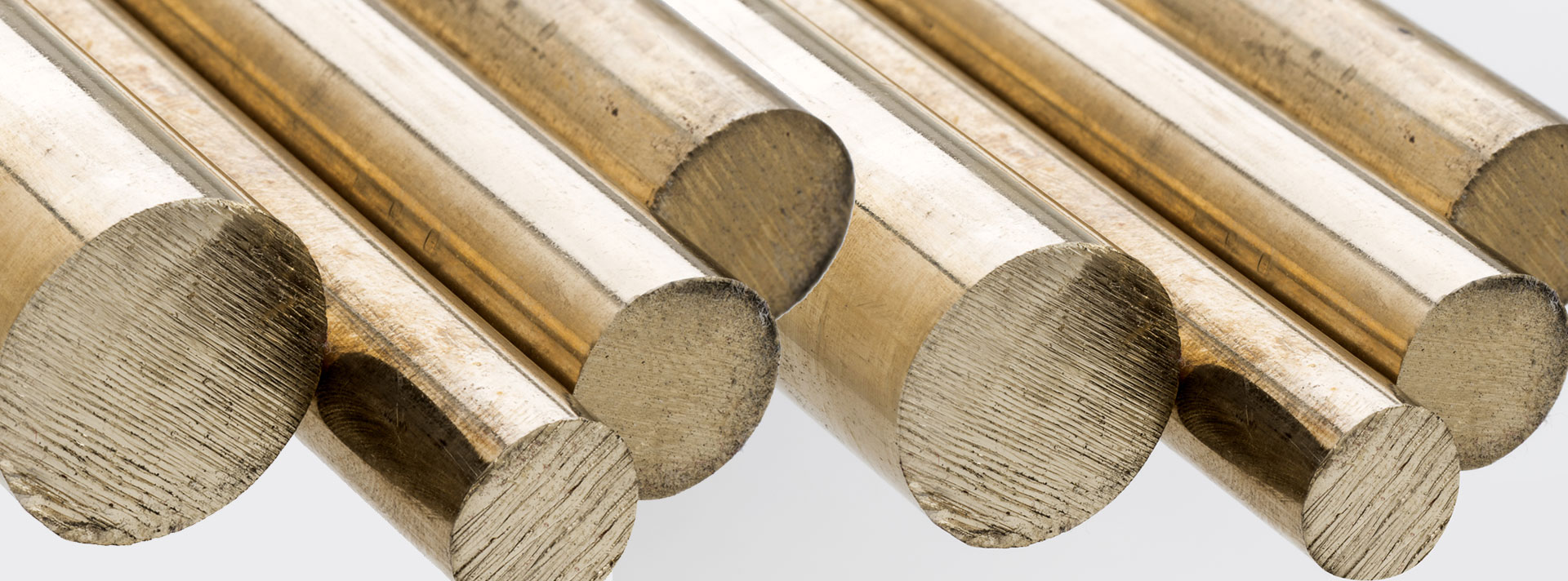

What is the UNS C51000 Round bar?
At Steelo Fabrica, these round bars are available in various shapes and sizes to fulfill our customer need. Our company offers these round bars that are mostly used for electrical devices due to its good spring consistency, outstanding solderability and good corrosion resistance.
These CDA510 Round bars also show good machinability and superior wear resistance. Our round bars are suitable for many applications because it has good physical properties, reasonable cost, and good electrical conductivity. In applications where resistance to fatigue, wear and corrosion is required, then our round bars are used.
Our phosphor bronze rods have features like strong construction, accurate shape and are easy to use. This rod’s main purpose is to join pipes in the middle. Our rods are well-known for its leak-proof property.
Bronze PB102 Bar Stock, Phosphor Bronze UNS C51000 Industrial Bars, Bronze CuSn5 Flat Bars, Phosphor Bronze UNS C51000 Round Bar Supplier, Phosphor Bronze UNS C51000 Rods Supplier, Phosphor Bronze CDA 510 Round Bar Supplier, Phosphor Bronze CDA 510 Rods Supplier, Phosphor Bronze AMS 4625 Round Bar Supplier, Phosphor Bronze C510 Rod Exporter, UNS C51000 Phosphor Bronze Square Bar, Buy Huge Quantity of Bronze C51000 Bars, CW451K Phosphor Bronze Polish Bar Manufacturer, C510 Bronze Hex Bar, Phosphor Bronze C51000 Bar Stockist in India.
Applications of CDA 510 Round bars:
- It is used in structural Pipes
- Power plants
- Water supply system
- Paper and Pulp Industry
- In addition, it can be found in some electrical circuits due to its low resistance to current.
Phosphor Bronze AMS 4625 Rods Supplier, Phosphor Bronze UNS C51000 Round Bar Stockist, Phosphor Bronze UNS C51000 Rods Stockist, Phosphor Bronze CDA 510 Round Bar Stockist, Phosphor Bronze CDA 510 Rods Stockist, Phosphor Bronze AMS 4625 Round Bar Stockist, Phosphor Bronze AMS 4625 Rods Stockist, Phosphor Bronze UNS C51000 Round Bar Manufacturer, Phosphor Bronze UNS C51000 Rods Manufacturer, Phosphor Bronze CDA 510 Round Bar Manufacturer, Phosphor Bronze CDA 510 Rods Manufacturer, Phosphor Bronze AMS 4625 Round Bar Manufacturer, Phosphor Bronze AMS 4625 Rods Manufacturer.
ASTM B139
AMS 4625
UNS C51000
SAE J461, J463
Phosphor Bronze C51000 Round Bars Specification
Specification : AMS 4625, ASTM B139, ASTM B103, QQ-B750, SAE J461, SAE J463
Standard : EN, DIN, JIS, ASTM, BS, ASME, AISI
Round Bars : Outside Diameter in the range of 4mm to 500mm
Hex Bars : 18mm – 57mm (11/16″ to 2-3/4″)
Square Bars : 18mm – 47mm (11/16″ to 1-3/4″)
Length : 1 to 6 Meters, Custom Cut Lengths
Form : Round, Square, Hex (A/F), Rectangle Etc.
Solids : 3/8″ to 2 1/2″ O.D.
Temper : H04 Hard, H08 Spring
Equivalent Grades of Phosphor Bronze C51000 Round Bars
COPPER GRADE | DIN | UNS | EN |
CuSn5 | 17666 | C51000 | CW451K |
C51000 Phosphor Bronze Round Bar & Rod Surface finish
CD | Cold drawn | P | Polished |
BD | Bright drawn | SRE | Slit rolled edge |
CG | Centreless ground | HF | Hot finished |
CF | Cold finished | HRAP | Hot rolled annealed and pickled |
P&T | Peeled and turned | RT | Rough turned/peeled |
ST | Smooth turned | PR | Peeled and reeled |
Most Selling Types Of Phosphor Bronze Rod / UNS C51000 Round Bar
Phosphor Bronze C51000 Flat Bar
- Phosphor Bronze UNS C51000 Flat Bars
- Phosphor Bronze CDA 510 Flat Bars
- Phosphor Bronze PB 102 Flat Bar
- C510 Bronze Alloy Flat Bar
- Phosphor Bronze C510 Flat Bars
Phosphor Bronze C51000 Square Bar
- Phosphor Bronze PB102 Square Bars
- UNS C51000 Bronze Square Rods
- Bronze C51000 CuSn5 Square Bars
- Phosphor Bronze CDA 510 Square Bar
- UNS C51000 Phosphor Bronze Square Bar
Phosphor Bronze C51000 Hex Bar
- C510 Phosphor Bronze Hexagonal Bars
- Bronze CDA 510 Hexagonal Bar In India
- Phosphor Bronze PB 102 Hex Bar
- UNS C51000 Phosphor Bronze Hex Rods
- Phosphor Bronze C51000 Hex Bar Suppliers
Phosphor Bronze C51000 Hollow Bar
- Phosphor Bronze UNS C51000 Hollow Bar
- C51000 Phosphor Bronze Hollow Bars
- CDA 510 Phosphor Bronze Hollow Rods
- C510 Phosphor Bronze Hollow Bar
- Phosphor Bronze Alloy PB102 Hollow Bars
Phosphor Bronze C51000 Rectangular Bar
- UNS C51000 Phosphor Bronze Rectangular Rods
- Bronze CuSn5 Rectangular Bars
- Phosphor Bronze C510 Rectangle Bar
- Phosphor Bronze CDA 510 Rectangle Bars Suppliers
- Phosphor Bronze PB 102 Rectangle Bar
Phosphor Bronze C51000 Rods
- Phosphor Bronze CW451K Rods
- Bronze CuSn5 CDA 510 Round Rod
- Phosphor Bronze C51000 Rod
- ASTM B139 Phosphor Bronze C510 Rods
- Phosphor Bronze UNS C51000 Rods
- PB102 Phosphor Bronze Round Rod
C51000 Phosphor Bronze Round Bar Sizes
Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
---|---|---|---|
Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Phosphor Bronze Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).
5.0 | 45.0 |
6.0 | 50.0 |
7.0 | 55.0 |
8.0 | 60.0 |
9.0 | 65.0 |
10.0 | 70.0 |
12.0 | 75.0 |
16.0 | 80.0 |
20.0 | 90.0 |
25.0 | 100.0 |
30.0 | 130.0 |
35.0 | 160.0 |
40.0 | 200.0 |
Phosphor Bronze C51000 Hex Bar Sizes
Size Chart in Millimeter | Weight Chart (Kilogram/meter) | Size Chart in Milimeter | Weight Chart (Kilogram/meter) | Size Chart in Milimeter | Weight Chart (Kilogram/meter) |
---|---|---|---|---|---|
7 x 7 | 0.337 | 19 x 19 | 2.479 | 38 x 38 | 9.916 |
8 x 8 | 0.44 | 20 x 20 | 2.747 | 40 x 40 | 10.988 |
9 x 9 | 0.556 | 21 x 21 | 3.029 | 42 x 42 | 12.114 |
10 x 10 | 0.687 | 22 x 22 | 3.324 | 45 x 45 | 13.906 |
11 x 11 | 0.831 | 24 x 24 | 3.956 | 48 x 48 | 15.822 |
12 x 12 | 0.989 | 25 x 25 | 4.292 | 50 x 50 | 17.168 |
13 x 13 | 1.161 | 26 x 26 | 4.642 | 53 x 53 | 19.29 |
14 x 14 | 1.346 | 28 x 28 | 5.384 | 55 x 55 | 20.774 |
15 x 15 | 1.545 | 30 x 30 | 6.181 | 60 x 60 | 24.723 |
16 x 16 | 1.758 | 32 x 32 | 7.032 | 65 x 65 | 29.015 |
17 x 17 | 1.985 | 34 x 34 | 7.939 | 70 x 70 | 33.65 |
18 x 18 | 2.225 | 36 x 36 | 8.9 | 75 x 75 | 38.629 |
CDA 510 Phosphor Bronze Hollow Bar Sizes
Size Table in MM | Chucked true to Outside Dia in MM | Chucked true to Inside Dia in MM and Inch | |||||||
---|---|---|---|---|---|---|---|---|---|
Outside Dia, Millimeter |
Inside Dia, Millimeter |
Maximum Outside Dia, Millimeter |
Minimum. Inside Dia, Millimeter |
Maximum Outside Dia, Inches. |
Minimum. Inside Dia, Inches |
Maximum Outside Dia, Millimeter |
Minimum. Inside Dia, Millimeter |
Maximum Outside Dia, Inches |
Minimum. Inside Dia, Inches |
32 | 20 | 31 | 21.9 | 1.220 | 0.862 | 30 | 21 | 1.185 | 0.827 |
32 | 16 | 31 | 18 | 1.220 | 0.709 | 30 | 17 | 1.181 | 0.669 |
36 | 25 | 35 | 26.9 | 1.378 | 1.059 | 34.1 | 26 | 1.343 | 1.024 |
36 | 20 | 35 | 22 | 1.378 | 0.866 | 34 | 21 | 1.339 | 0.827 |
36 | 16 | 35 | 18.1 | 1.378 | 0.713 | 33.9 | 17 | 1.335 | 0.669 |
40 | 28 | 39 | 29.9 | 1.535 | 1.177 | 38.1 | 29 | 1.500 | 1.142 |
40 | 25 | 39 | 27 | 1.535 | 1.063 | 38 | 26 | 1.496 | 1.024 |
40 | 20 | 39 | 22.1 | 1.535 | 0.870 | 37.9 | 21 | 1.492 | 0.827 |
45 | 32 | 44 | 33.9 | 1.732 | 1.335 | 43.1 | 33 | 1.697 | 1.299 |
45 | 28 | 44 | 30 | 1.732 | 1.181 | 43 | 29 | 1.693 | 1.142 |
45 | 20 | 44 | 22.2 | 1.732 | 0.874 | 42.8 | 21 | 1.685 | 0.827 |
50 | 36 | 49 | 38 | 1.929 | 1.496 | 48 | 37 | 1.890 | 1.457 |
50 | 32 | 49 | 34.1 | 1.929 | 1.343 | 47.9 | 33 | 1.886 | 1.299 |
50 | 25 | 49 | 27.2 | 1.929 | 1.071 | 47.8 | 26 | 1.882 | 1.024 |
56 | 40 | 55 | 42 | 2.165 | 1.654 | 54 | 41 | 2.126 | 1.614 |
56 | 36 | 55 | 38.1 | 2.165 | 1.500 | 53.9 | 37 | 2.122 | 1.457 |
56 | 28 | 55 | 30.3 | 2.165 | 1.193 | 53.7 | 29 | 2.114 | 1.142 |
63 | 50 | 62 | 51.9 | 2.441 | 2.043 | 61.1 | 51 | 2.406 | 2.008 |
63 | 45 | 62 | 47 | 2.441 | 1.850 | 61 | 46 | 2.402 | 1.811 |
63 | 40 | 62 | 42.2 | 2.441 | 1.661 | 60.8 | 41 | 2.394 | 1.614 |
63 | 36 | 62 | 38.3 | 2.441 | 1.508 | 60.7 | 37 | 2.390 | 1.457 |
63 | 32 | 62 | 34.4 | 2.441 | 1.354 | 60.6 | 33 | 2.386 | 1.299 |
71 | 56 | 69.9 | 58 | 2.752 | 2.283 | 68.9 | 57 | 2.713 | 2.244 |
71 | 45 | 69.9 | 47.3 | 2.752 | 1.862 | 68.6 | 46 | 2.701 | 1.811 |
71 | 40 | 69.9 | 42.4 | 2.752 | 1.669 | 68.5 | 41 | 2.697 | 1.614 |
71 | 36 | 69.9 | 38.5 | 2.752 | 1.516 | 68.4 | 37 | 2.693 | 1.457 |
75 | 60 | 73.8 | 62 | 2.906 | 2.441 | 72.8 | 61 | 2.866 | 2.402 |
75 | 50 | 73.8 | 52.2 | 2.906 | 2.055 | 72.6 | 51 | 2.858 | 2.008 |
75 | 40 | 73.8 | 42.5 | 2.906 | 1.673 | 72.3 | 41 | 2.846 | 1.614 |
80 | 63 | 78.8 | 65 | 3.102 | 2.559 | 77.8 | 64 | 3.063 | 2.520 |
80 | 50 | 78.8 | 52.4 | 3.102 | 2.053 | 77.4 | 51 | 3.047 | 2.008 |
80 | 45 | 78.8 | 47.5 | 3.102 | 1.870 | 77.3 | 46 | 3.043 | 1.811 |
80 | 40 | 78.8 | 42.6 | 3.102 | 1.677 | 77.2 | 41 | 3.039 | 1.614 |
85 | 67 | 83.7 | 69.1 | 3.295 | 2.720 | 82.6 | 68 | 3.252 | 2.677 |
85 | 55 | 83.7 | 57.4 | 3.295 | 2.260 | 82.3 | 56.0 | 3.240 | 2.205 |
85 | 45 | 83.7 | 47.6 | 3.295 | 1.874 | 82.1 | 46.0 | 3.232 | 1.811 |
90 | 71 | 88.6 | 73.1 | 3.488 | 2.878 | 87.6 | 72.1 | 3.449 | 2.839 |
90 | 63 | 88.6 | 65.3 | 3.488 | 2.571 | 87.3 | 64.0 | 3.437 | 2.520 |
90 | 56 | 88.6 | 58.5 | 3.488 | 2.303 | 87.1 | 57.0 | 3.429 | 2.244 |
90 | 50 | 88.6 | 52.6 | 3.488 | 2.071 | 87.0 | 51.0 | 3.425 | 2.008 |
95 | 75 | 93.5 | 77.3 | 3.681 | 3.041 | 92.4 | 76.2 | 3.641 | 2.997 |
95 | 67 | 93.5 | 69.3 | 3.681 | 2.728 | 92.2 | 68.0 | 3.630 | 2.677 |
95 | 50 | 93.5 | 52.7 | 3.681 | 2.075 | 91.8 | 51.0 | 3.614 | 2.008 |
100 | 80 | 98.5 | 82.3 | 3.878 | 3.240 | 97.4 | 81.2 | 3.835 | 3.197 |
100 | 71 | 98.5 | 73.4 | 3.878 | 2.890 | 97.2 | 72.1 | 3.827 | 2.839 |
100 | 63 | 98.5 | 65.5 | 3.878 | 2.579 | 97.0 | 64.0 | 3.819 | 2.520 |
100 | 56 | 98.5 | 58.7 | 3.878 | 2.311 | 96.8 | 57.0 | 3.811 | 2.244 |
106 | 80 | 104.4 | 82.5 | 4.110 | 3.248 | 103.1 | 81.2 | 4.059 | 3.197 |
106 | 71 | 104.4 | 73.5 | 4.110 | 2.894 | 103.0 | 72.1 | 4.055 | 2.839 |
106 | 63 | 104.4 | 65.7 | 4.110 | 2.587 | 102.7 | 64.0 | 4.043 | 2.520 |
106 | 56 | 104.4 | 58.9 | 4.110 | 2.319 | 102.5 | 57.0 | 4.035 | 2.244 |
112 | 90 | 110.3 | 92.5 | 4.343 | 3.642 | 109.2 | 91.4 | 4.299 | 3.598 |
112 | 80 | 110.3 | 82.6 | 4.343 | 3.252 | 108.9 | 81.2 | 4.287 | 3.197 |
112 | 71 | 110.3 | 73.7 | 4.343 | 2.902 | 108.7 | 72.1 | 4.280 | 2.839 |
112 | 63 | 110.3 | 65.8 | 4.343 | 2.591 | 108.5 | 64.0 | 4.272 | 2.520 |
118 | 90 | 116.2 | 92.7 | 4.575 | 3.650 | 114.9 | 91.4 | 4.524 | 3.598 |
118 | 80 | 116.2 | 82.8 | 4.575 | 3.260 | 114.6 | 81.2 | 4.512 | 3.197 |
118 | 71 | 116.2 | 73.8 | 4.575 | 2.906 | 114.5 | 72.1 | 4.508 | 2.839 |
118 | 63 | 116.2 | 66.0 | 4.575 | 2.598 | 114.2 | 64.0 | 4.496 | 2.520 |
125 | 100 | 123.1 | 102.7 | 4.846 | 4.043 | 121.9 | 101.5 | 4.799 | 3.996 |
125 | 90 | 123.1 | 92.8 | 4.846 | 3.654 | 121.7 | 91.4 | 4.791 | 3.598 |
125 | 80 | 123.1 | 82.9 | 4.846 | 3.264 | 121.4 | 81.2 | 4.780 | 3.197 |
125 | 71 | 123.1 | 74.0 | 4.846 | 2.913 | 121.3 | 72.1 | 4.772 | 2.839 |
132 | 106 | 130.0 | 108.8 | 5.118 | 4.283 | 128.8 | 107.6 | 5.071 | 4.236 |
132 | 90 | 130.0 | 93.0 | 5.118 | 3.661 | 128.4 | 91.4 | 5.055 | 3.598 |
132 | 80 | 130.0 | 83.1 | 5.118 | 3.272 | 128.1 | 81.2 | 5.043 | 3.197 |
132 | 71 | 130.0 | 74.2 | 5.118 | 2.921 | 121.2 | 72.1 | 5.035 | 2.839 |
140 | 112 | 137.9 | 115 | 5.429 | 4.528 | 136.6 | 113.7 | 5.378 | 4.476 |
140 | 100 | 137.9 | 103.1 | 5.429 | 4.059 | 136.3 | 101.5 | 5.366 | 3.996 |
140 | 90 | 137.9 | 93.2 | 5.429 | 3.669 | 136.1 | 91.4 | 5.358 | 3.598 |
140 | 80 | 137.9 | 83.3 | 5.429 | 3.280 | 135.8 | 81.2 | 5.346 | 3.197 |
150 | 125 | 147.7 | 128.1 | 5.815 | 5.043 | 146.5 | 126.9 | 5.768 | 4.996 |
150 | 106 | 147.7 | 109.3 | 5.815 | 4.303 | 146 | 107.6 | 5.748 | 4.236 |
150 | 95 | 147.7 | 98.4 | 5.815 | 3.874 | 145.7 | 96.4 | 5.736 | 3.795 |
150 | 80 | 147.7 | 83.6 | 5.815 | 3.291 | 145.3 | 81.2 | 5.720 | 3.197 |
160 | 132 | 157.6 | 135.3 | 6.205 | 5.327 | 156.3 | 134 | 6.154 | 5.276 |
160 | 122 | 157.6 | 125.4 | 6.205 | 4.937 | 156 | 123.8 | 6.142 | 4.874 |
Phosphor Bronze C51000 Square Bar Sizes
Size Chart in Millimeter | Weight Chart per Meter (Kilogram) | Size Chart in Millimeter | Weight Chart per Meter (Kilogram) |
---|---|---|---|
12 x 12 | 1.14 | 30×30 | 7.11 |
16 x 16 | 2.02 | 40 x 40 | 12.60 |
20 x 20 | 3.16 | 50 x 50 | 19.80 |
25 x 25 | 4.94 |
Phosphor Bronze UNS C51000 Flat Bar Sizes
Sizes Chart in Millimeter | Sizes in Inch | Thickness Chart In MM | Thickness Chart In Inches |
---|---|---|---|
22 | 7/8 | 17 & 18 | 2/3 – 5/7 |
25 | 1 | 5 to 20 | 3/16 – 4/5 |
30 | 1-3/16 | 5 to 20 | 3/16 – 4/5 |
32 | 1-1/4 | 6 to 20 | 1/4 – 4/5 |
35 | 1-3/8 | 5 to 20 | 3/16 – 3/16 |
40 | 1-4/7 | 5 to 25 | 3/16 – 1 |
45 | 1-7/9 | 5 to 25 | 3/16 – 1 |
47 | 1-6/7 | 17,25 & 32 | 2/3, 1 & 1-1/4 |
50 | 2 | 5 to 32 | 3/16 – 1-1/4 |
55 | 2-1/16 | 5 to 25 | 3/16 – 1 |
57 | 2-1/4 | 32 | 1-1/4 |
60 | 2-3/8 | 5 to 35 | 3/16 – 1-3/8 |
63 | 2-1/2 | 10 to 30 | 3/8 – 1-3/16 |
65 | 2-5/9 | 10 to 30 & 35 | 3/8 – 1-3/16, & 1-3/8 |
70 | 2-3/4 | 6 to 25 & 40 | 1/4 – 1, & 1-4/7 |
75 | 3 | 8 to 25 | 5/16 – 1 |
80 | 3-1/8 | 8 to 20 | 5/16 – 4/5 |
90 | 3-1/2 | 8 to 20 | 5/16- 4/5 |
100 | 4 | 8, 10, 12 | 5/16, 3/8, 1/2 |
UNS C51000 Phosphor Bronze Round Bar Weight Chart
Diameter in Inches | Diameter (in/mm) | Weight Chart | Weight per 12′ Length |
3/32 inches | 0.0938 inches 2.38252 mm | 0.0247 lbs/ft 0.03675854 kg/m | 0.297 lbs 0.1346895 kg |
1/8 inches | 0.125 inches 3.175 mm | 0.0439 lbs/ft 0.06533198 kg/m | 0.527 lbs 0.2389945 kg |
3/16 inches | 0.1875 inches 4.7625 mm | 0.0987 lbs/ft 0.14688534 kg/m | 1.185 lbs 0.5373975 kg |
1/4 inches | 0.25 inches 6.35 mm | 0.1755 lbs/ft 0.2611791 kg/m | 2.106 lbs 0.955071 kg |
7/16 inches | 0.4375 inches 11.1125 mm | 0.5376 lbs/ft 0.80005632 kg/m | 6.451 lbs 2.9255285 kg |
15/32 inches | 0.4688 inches 11.90752 mm | 0.6173 lbs/ft 0.91866586 kg/m | 7.407 lbs 3.3590745 kg |
17/32 inches | 0.5313 inches 13.49502 mm | 0.7928 lbs/ft 1.17984496 kg/m | 9.514 lbs 4.314599 kg |
9/16 inches | 0.5625 inches 14.2875 mm | 0.8887 lbs/ft 1.32256334 kg/m | 10.664 lbs 4.836124 kg |
5/8 inches | 0.625 inches 15.875 mm | 1.0971 lbs/ft 1.63270422 kg/m | 13.165 lbs 5.9703275 kg |
3/4 inches | 0.75 inches 19.05 mm | 1.5798 lbs/ft 2.35105836 kg/m | 18.958 lbs 8.597453 kg |
13/16 inches | 0.8125 inches 20.6375 mm | 1.8541 lbs/ft 2.75927162 kg/m | 22.249 lbs 10.0899215 kg |
7/8 inches | 0.875 inches 22.225 mm | 2.1503 lbs/ft 3.20007646 kg/m | 25.804 lbs 11.702114 kg |
15/16 inches | 0.9375 inches 23.8125 mm | 2.4685 lbs/ft 3.6736217 kg/m | 29.622 lbs 13.433577 kg |
1 inches | 1 inches 25.4 mm | 2.8086 lbs/ft 4.17975852 kg/m | 33.703 lbs 15.2843105 kg |
1 1/16 inches | 1.0625 inches 26.9875 mm | 3.1706 lbs/ft 4.71848692 kg/m | 38.048 lbs 17.254768 kg |
1 1/8 inches | 1.125 inches 28.575 mm | 3.5546 lbs/ft 5.28995572 kg/m | 42.655 lbs 19.3440425 kg |
1 3/16 inches | 1.1875 inches 30.1625 mm | 3.9606 lbs/ft 5.89416492 kg/m | 47.527 lbs 21.5534945 kg |
1 1/4 inches | 1.25 inches 31.75 mm | 4.3884 lbs/ft 6.53081688 kg/m | 52.661 lbs 23.8817635 kg |
1 5/16 inches | 1.3125 inches 33.3375 mm | 4.8382 lbs/ft 7.20020924 kg/m | 58.059 lbs 26.3297565 kg |
1 3/8 inches | 1.375 inches 34.925 mm | 5.31 lbs/ft 7.902342 kg/m | 63.720 lbs 28.89702 kg |
1 1/2 inches | 1.5 inches 38.1 mm | 6.3193 lbs/ft 9.40438226 kg/m | 75.832 lbs 34.389812 kg |
1 5/8 inches | 1.625 inches 41.275 mm | 7.4164 lbs/ft 11.03708648 kg/m | 88.997 lbs 40.3601395 kg |
1 3/4 inches | 1.75 inches 44.45 mm | 8.6013 lbs/ft 12.80045466 kg/m | 103.216 lbs 46.808456 kg |
1 7/8 inches | 1.875 inches 47.625 mm | 9.8740 lbs/ft 14.6944868 kg/m | 118.487 lbs 53.7338545 kg |
2 inches | 2 inches 50.8 mm | 11.2344 lbs/ft 16.71903408 kg/m | 134.812 lbs 61.137242 kg |
HOW TO GET BEST PRICE OF PHOSPHOR BRONZE C51000 ROUND BAR ?
If looking for C51000 Bars and Rod in exact length so first check Phosphor Bronze CDA 510 price per KG in India and calculate with wight chart before negotiating with your supplier.
Phosphor Bronze C51000 Round Bar Chemical Composition Chart
CU | FE | PB | P | SN | ZN | |
Min/Max | Rem | 0.1 | 0.05 | 0.03 – 0.35 | 4.2 – 5.8 | 0.3 |
Nominals | 94.8000 | – | – | 0.2000 | 5.0000 | – |
Phosphor Bronze C51000 Round Bar / Rod Mechanical Properties
Temper Designation | Diameter or Distance Between Parallel Surfaces,A in. | Tensile Strength, ksi | Elongation in 43 Diameter or Thickness of Specimen, min, %B | ||
---|---|---|---|---|---|
Code | Name | min | max | ||
Copper Alloy UNS No. C51000 | |||||
060 | soft anneal | rod: round under 1⁄4 | 40 | 58 | … |
H04 | hard | rod: round under 1⁄4 | 80 | 128 | … |
round and hexagonal: | |||||
1/4 to1⁄2 , incl | 70 | … | 13 | ||
over 1⁄2 to 1, incl | 60 | … | 15 | ||
over 1 | 55 | … | 18 | ||
bar: square and rectangular: | |||||
1⁄4 to 3⁄8 ,incl | 60 | … | 10 | ||
over 3⁄8 | 55 | … | 15 | ||
H08 | spring | rod: round: | |||
0.026 to1⁄16 ,incl | 115 | … | … | ||
over 1⁄16 to 1⁄8 , incl | 110 | … | … | ||
over 1⁄8 to 1/4 , incl | 105 | … | 3.5 | ||
over 1/4 to 3/8 ,incl | 100 | … | 5.0 | ||
over 3/8 to1/2 ,incl | 90 | … | 9.0 | ||
Copper Alloy UNS No. C52100 | |||||
060 | soft anneal | rod: round under 1⁄4 | 53 | 68 | … |
H04 | hard | rod: round under 1⁄4 | 105 | 150 | … |
round and hexagonal: | |||||
1⁄4 to 1⁄2, incl | 85 | … | 12 | ||
over 1⁄2 to 1, incl | 75 | … | 15 | ||
over 1 | 60 | … | 20 | ||
bar: square and rectangular: | |||||
1⁄4 to 3⁄8 , incl | 68 | … | 10 | ||
over 3⁄8 | 60 | … | 15 | ||
Copper Alloy UNS No. C52400 | |||||
060 | soft anneal | rod: round under 1⁄4 | 60 | 75 | … |
H04 | hard | rod: round under 1⁄4 | 105 | 160 | … |
round and hexagonal: | |||||
1⁄4 to 1⁄2 , incl | 95 | … | 10 | ||
over 1⁄2 to 1,incl | 85 | … | 12 | ||
over 1 | 70 | … | 15 | ||
bar: square and rectangular: | |||||
1⁄4 to 3⁄8 , incl | 76 | … | 10 | ||
over 3⁄8 | 70 | … | 15 | ||
Copper Alloy UNS Nos. C53400 and C54400 | |||||
H04 | hard | rod: round and hexagonal: | |||
1⁄16 to1⁄4 ,incl | 65 | … | 8 | ||
over 1/4 to1⁄2 incl | 60 | … | 10 | ||
over 1⁄2 to 1, incl | 55 | … | 12 | ||
over 1 | 50 | 15 | |||
bar:square and rectangular: | |||||
1/4 to 3⁄8 ,incl | 55 | … | 10 | ||
over 3⁄8 | 50 | … | 15 |
Different Types of Phosphor Bronze Round Bar / UNS C51000 / CDA 510 Rod
- Phosphor Bronze C51000 Hollow Bar
- Phosphor Bronze CW451K Rectangular Bar
- CDA 510 Phosphor Bronze Hexagonal Bar
- C51000 Phosphor Bronze Polished Bar
- Phosphor Bronze C51000 Hex Bar Manufacturer
- Phosphor Bronze C51000 Round Bar
- CuSn5 UNS C51000 Cold Rolled Bar
- C51000 Phosphor Bronze Flat Bar
- CDA 510 Phosphor Bronze Industrial Bars
- Phosphor Bronze UNS C51000 Rods
- CW451K Phosphor Bronze Round Bars
- Phosphor Bronze C510 Bright Bar
- Phosphor Bronze Alloy CDA 510 Bar
- Phosphor Bronze UNS C51000 Triangle Bar
- C51000 Phosphor Bronze Bar
- Phosphor Bronze PB102 Forged Bar
- Phosphor Bronze CW451K Bars Stockist
- Phosphor Bronze PB 102 Flat Bar Supplier
- C51000 Phosphor Bronze Half-Round Bars
- C510 Bronze Alloy Rods
- Phosphor Bronze C51000 Bars Dealers
- Phosphor Bronze PB 102 Bar
- Phosphor Bronze UNS C51000 Round Bar
- PB102 Phosphor Bronze Cold Drawn Round bar
- CDA 510 Phosphor Bronze Bar
- C51000 Phosphor Bronze Bars Exporter
Phosphor Bronze UNS C51000 / CDA 510 Round Bar & Rod Applications and Uses
We offer a broad range of Phosphor Bronze PB102, UNS C51000 Round Bars through a worldwide network of stock-keeping branches. These Phosphor Bronze CDA 510 Rod is use in various industries like
- Oil and Gas Pipeline
- Chemical Industry
- Power Plant
- Pulp and paper industry
- Energy industries
- Dairy and food Processing
Products
- Round Bar
- Stainless Steel Round Bar
- Alloy A286 Round Bar
- Duplex Steel Round Bar
- Inconel Round Bars
- Monel Round Bar
- Hastelloy Round Bar
- Brass Round Bar
- Copper Round Bar
- Nickel Round Bar
- Tantalum Round Bar
- Tungsten Round Bar
- Maraging Round Bar
- SMO 254 Round Bar
- Titanium Round Bar
- Alloy 20 Round Bar
- Aluminium Round Bar
- Bronze Round Bar
- Nickel Aluminium Bronze C63020 Rod
- Nickel Aluminium Bronze C63000 Rod
- Nickel Aluminium Bronze C95510 Rod
- Nickel Aluminium Bronze C95520 Rod
- Bronze Casting Alloy Round Bar
- Tin Bronze UNS C90300 Round Bar
- Nickel Aluminium Bronze UNS C95800 Round Bar
- Manganese Bronze UNS C86300 Round Bar
- Aluminium Bronze CA104 Round Bar
- Phosphor Bronze CDA510 Round Bar
- Phosphor Bronze PB 104 Round Bar
- Phosphor Bronze Leaded Tin UNS C54400 Round Bar
- Silicon Bronze Alloy UNS C65620 Round Bar
- Silicon Aluminium Bronze UNS C64200 Round Bar
- Aircraft Bronze Alloy UZ19AL6 Round Bar
- Leaded Tin Bronze Alloy Round Bar
- Aircraft Bronze Alloy NFL14706 Round Bar
- High Silicone Bronze ‘A’ UNS C65500 Round Bar
- Nickel Aluminium Bronze C95400 Round Bar
- Nickel Aluminium Bronze NES 833 PART 2 / DSTAN 02-833 RODS
- Grade 10-5-5 NICKEL ALUMINIUM BRONZE RODS
- Cobalt Alloy Round Bar
- Alloy Steel Round Bar
- Carbon Steel Round Bar
- Other Round Bar
- Forged Bars
- Flat Bars
- Wires
Worldwide Supply
Countries Where We Export
Sweden, Kazakhstan, Tunisia, Oman, Egypt, Nigeria, Peru, Vietnam, Mexico, Malaysia, Belarus, Iran, Ukraine, Afghanistan, Chile, United States, New Zealand, Yemen, Colombia, Bahrain, France, Brazil, Sri Lanka, Trinidad & Tobago, Thailand, Norway, Philippines, Serbia, Bhutan, Poland, Japan, United Kingdom, Australia, United Arab Emirates, Turkey, Azerbaijan, South Africa, Czech Republic, Libya, Iran, Kenya, Costa Rica, Ghana, Switzerland, Saudi Arabia, Croatia, Nigeria, Poland, Belgium, Slovakia, Italy, Pakistan, Venezuela, Lithuania, South Korea, Taiwan, Chile, Ecuador, Romania, Mongolia, Greece, Algeria, Portugal, Angola, Hong Kong, Israel, Austria, Jordan, RuInconel ia, Estonia, Finland, China, Kuwait, Qatar, Bolivia, Morocco, Argentina, Bulgaria, Iraq, Bangladesh, Canada, Singapore, Gabon, Mexico, Denmark, Hungary, Netherlands, Lebanon, Spain, Indonesia.
Cities Where We Export
Sharjah, Thane, Seoul, Thiruvananthapuram, Aberdeen, Granada, Toronto, Gurgaon, Mumbai, Chiyoda, Visakhapatnam, Muscat, Kuwait City, Coimbatore, Tehran, Houston, Chandigarh, Courbevoie, Indore, Atyrau, Surat, Ernakulam, Nagpur, Milan, Jakarta, Ulsan, Navi Mumbai, Hyderabad, Jeddah, New Delhi, Howrah, Brisbane, Madrid, Kanpur, Vadodara, Algiers, Dallas, Noida, Rajkot, Manama, Caracas, Istanbul, Rio de Janeiro, Calgary, Jamshedpur, Jaipur, Chennai, Ahmedabad, Port-of-Spain, New York, Ranchi, Haryana, Nashik, Abu Dhabi, Pimpri-Chinchwad, Cairo, Al Jubail, Doha, Ludhiana, Melbourne, Secunderabad, Bhopal, Dammam, Karachi, Pune, Ho Chi Minh City, Bogota, Bengaluru, Ankara, Lagos, Riyadh, Faridabad, Bangkok, Kolkata, Baroda, Busan, Ahvaz, Edmonton.
CONTACT
27 2nd Floor Rangwala Building, N D Road, 58, Islampura Street, Cawasji Patel Tank, Bhuleshwar, Mumbai, Maharashtra 400004
