Steelo Fabrica is prominent manufacture and seller of Nickel Aluminium Bronze Rod. We are producing the authentic quality of UNS 95520 Rods using the best quality of raw materials. We have the most delicate infrastructure and an excellent team of workers striving very hard to bring out the best materials.
Table of Content

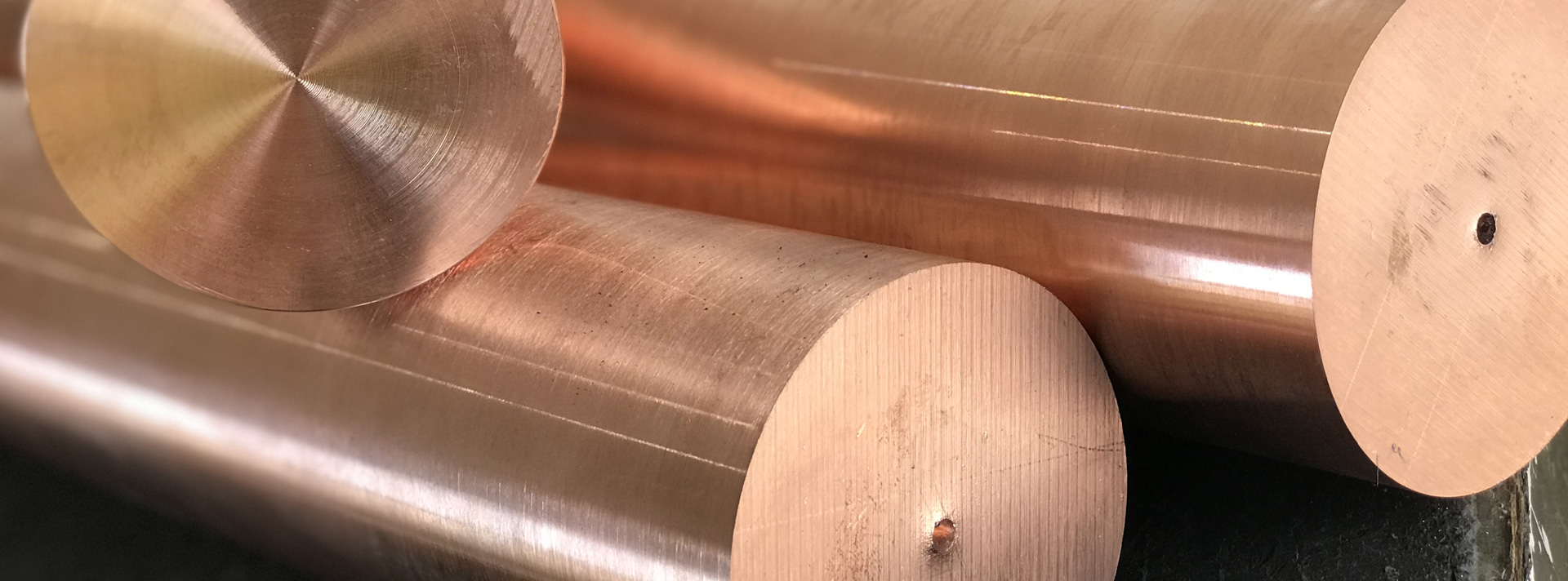

Nickel Aluminium Bronze Rod: Nickel Aluminium Bronze Rod presents a good combination of corrosion resistance and strength. This Rod is still prone to various forms of corrosion, such as stagnant seawater corrosion, selective phase corrosion, and cavitation erosion. The nickel aluminium bronze rod contains 6-13% aluminium and up to 7% iron, and 7% nickel. The other common alloys typically have 3-6% of each of these two elements. In addition, manganese up to approximately 1.5% is also added, both as an oxidant and a powerful feature.
UNS 95520 Rods :UNS 95520 Rod is a bronze formulated for casting. Cited features are appropriate for the heat-treated (HT) condition of UNS 95520 Rods. It has a very high heat capacity among the other cast bronzes. In addition to it, it has an excellent tensile force and deficient elasticity.
UNS 95520 is one of the most recognized landing gear bushing materials specified today, along with bronze material. This permanent/centrifugal cast alloy is heat-treated and exhibits high mechanical strength, which meets the properties of other recognized alloys. In many cases, UNS 95520 can be substituted for C63000 with the advantage of this material being available in a hollow bar, which provides economic cost savings for the customer.
Uses of UNS 95520:
Aerospace: Landing Gear Bushings & Bearings
Industrial uses: Corrosion Resistant Parts, Wear Rings
Marine application: Propeller Hubs, Wear Rings, Hardware
The different types of nickel aluminium bronze rods are a popular choice for industrial applications such as Worm Gears, Shafts, Sleeves and other products for the aerospace industry.
Specification : ASTM B150 / ASME SB150
Standard : EN, DIN, JIS, ASTM, BS, ASME, AISI
Rods : 6mm To 130 mm
Hex Rods : 5mm To 60mm
Square Rods : 4mm To 60mm
Ingots: AS per Specification
Length : 8mm To 70 mm
Diameter : 8mm To 70 mm
Form : Round, Square, Hex (A/F), Rectangle Etc.
|BD||Bright drawn||SRE||Slit rolled edge|
|CG||Centreless ground||HF||Hot finished|
|CF||Cold finished||HRAP||Hot rolled annealed and pickled|
|P&T||Peeled and turned||RT||Rough turned/peeled|
|ST||Smooth turned||PR||Peeled and reeled|
|78.0 min.||2.0 – 3.5||9.7 – 10.9||4.5 – 5.5*||1.50 max.||0.30 max.||0.20 max.|
|Sum of all named elements = 99.8%|
|Tensile Strength, min||Yield Strength, at 0.2% Offset, min||Elongation, in 4D, min||Brinell Hardness||Remarks|
|Ksi||MPa||Ksi||MPa||%||min to max BHN|
|105.0||724||62.5||431||9||192 to 248||Castings <4.0,
|95.0||655||56.0||386||9||192 to 248||Castings 4.0+,
We offer a broad range of ASTM B150 Nickel Aluminium Bronze C95520 Rods through a worldwide network of stock-keeping branches. These C95520 Nickel Aluminium Bronze Rods is use in various industries like :
