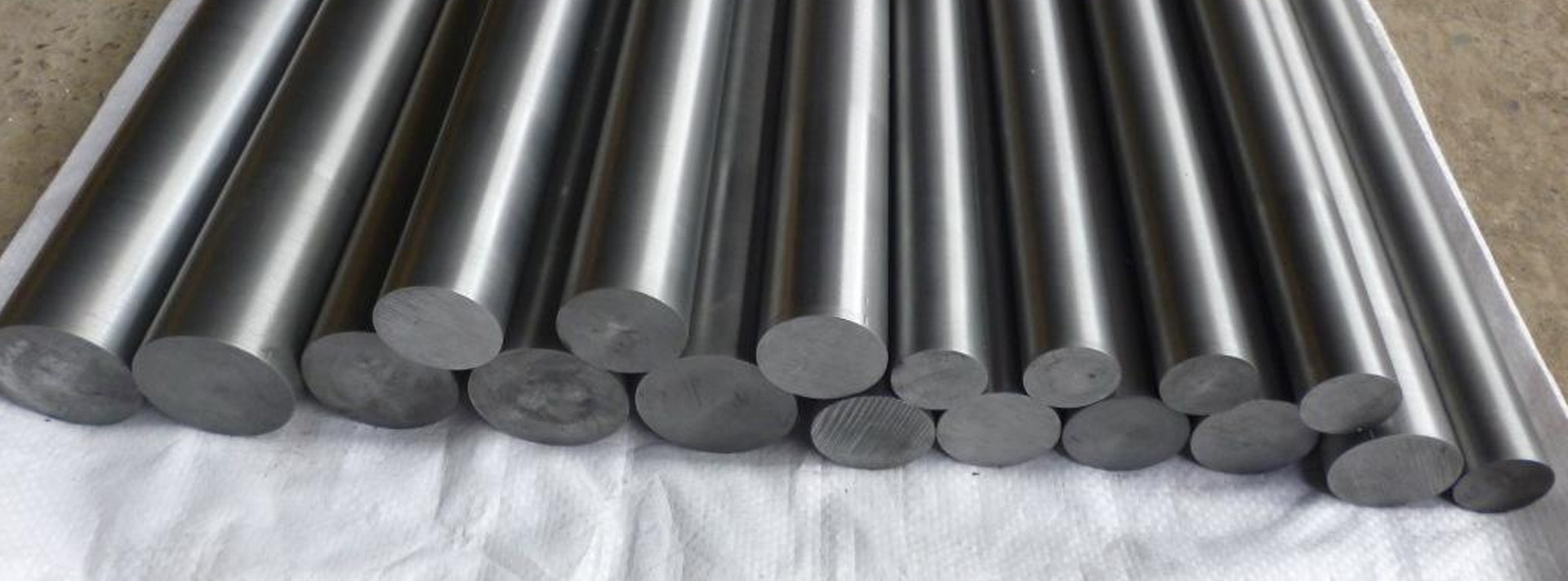

Steelo Fabrica is a great exporter, manufacturer, and dealer of Tungsten class 2, class 3, class 4 Round Bars. We use national and international standards to manufacture these round bars. There are different specifications of these round bars like different lengths, sizes, surface finish, and widths. These tungsten class 3 round bars offer different surface finish like black surface finish, cleaned surface finish, and Shiny surface finish.
What is Tungsten Class 2 round bar?
Our company manufacture these round bars are available in different sizes, lengths and widths. Due to tungsten class 2 alloy, our round bars have a high melting point and density. Our round bar has different surfaces like a Sintering surface, Forged surface and ground surface and polished surface. It also shows resistance to creep and high temperature. Our round bar shows resistance to attack by most mineral acids. Our round bars have high tensile strength.
Table of Content
What is Tungsten alloy?
Tungsten alloy is made up of using tungsten, iron, copper, nickel, cobalt and molybdenum. It contains cobalt to increase strength and ductility. This metal is very affordable. There are four classes of tungsten such as class 1, class 2, class 3 and class 4. Class 2 has low density than other classes of tungsten. Class 3 has a high density that is easier to produce and machine relative to pure tungsten. It is often used for x-rays, radiation, and other medical shielding applications. This tungsten Class 4 shows high density and high tensile strength. This alloy is very easy to machine and produce. The benefit of tungsten is its extremely low vapor pressure, even at high temperatures.
Properties of Tungsten Class 3 round bars:
Tungsten class 3 round bars have many special properties such as wear resistance, high tensile strength, good elongation capacity, low vapour pressure, excellent thermal stability and high radiation absorption capacity, etc.
Applications of Tungsten Class 4 Round bars:
ASTM B-777
TUNGSTEN Class 2 Class 3 Class 4
UNS
WNR.
Specification :EN, DIN, JIS, ASTM, BS, ASME, AISI
Standard Specification : ASTM B777
Size : 15NB to 150NB IN
Diameter : 3.17mm to 350mm diameter
Length : 100 mm to 3000 mm Long & Above
Tolerance : H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements
Finish : Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish
Form : Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc
Surface : Hot Rolled Pickled or Sand Blasting Finished, Cold Drawn, Bright, Polished, Hairline
Condition : Cold Drawnd Pulished Cold Drawn Centreless Ground & Polished
| CD | Cold drawn | P | Polished |
| BD | Bright drawn | SRE | Slit rolled edge |
| CG | Centreless ground | HF | Hot finished |
| CF | Cold finished | HRAP | Hot rolled annealed and pickled |
| P&T | Peeled and turned | RT | Rough turned/peeled |
| ST | Smooth turned | PR | Peeled and reeled |
| Type | SIZES in milimeter | SIZES in inches | Tolerance |
|---|---|---|---|
| Peeled and Polished | 40.00 – 150.00 | 1.50 – 6.00 | h11, h11-DIN 1013 |
| Cold Drawn and Polish | 3.00 to 75.00 | 1/8 to3.00 | h8 to h11 |
| Cold Drawn and Ground | 10.00 to 75.00 | 5/6 to 2.50 | h8 to h11 |
| Peeled nd Ground | 20.00 – 50.00 | 3/4 – 2.00 | h9 to h11 |
| Grade | ASTM B-777 | AMS 7725E | MIL-T-21014D | W content, wt.% | Ni content, wt.% | Fe content, wt.% | Density, g/cm3 | UTS, ksi | UTS, MPa | YS, ksi | YS, MPa | Elongation, % | Hardness, HRC | Mag. perm. |
| ET92.5 | Class 2 | Class 2 Type 2 | Class 2 | 92.5 | 5.3 | 2.2 | 17.5 | ≥ 110 | ≥ 758 | ≥ 75 | ≥ 648 | ≥ 5 | ≤ 33 | > 1.05 |
| ET92.5NM | Class 2/td> | Class 2 Type 1 | Class 2 | 92.5 | 6.7 | 0.8 | 17.5 | ≥ 110 | ≥ 758 | ≥ 75 | ≥ 648 | ≥ 5 | ≤ 33 | ≤ 1.05 |
HOW TO GET BEST PRICE OF TUNGSTEN CLASS 2 ROUND BAR ?
If looking for Alloy Bars and Rod in exact length so first check Tungsten price per KG in India and calculate with wight chart before negotiating with your supplier.
Grade |
ET90 | ET90NM | ET92.5 | ET92.5NM | ET93 | ET95 | ET95NM | ET97 |
ASTM B-777 |
Class 1 | Class 1 | Class 2 | Class 2 | – | Class 3 | Class 3 | Class 4 |
|
AMS 7725E |
Class 1
Type 2 |
Class 1
Type 1 |
Class 2
Type 2 |
Class 2
Type 1 |
– |
Class 3
Type 2 |
Class 3
Type 1 |
Class 4 Type 2 |
MIL-T-21014D |
Class 1 | Class 1 | Class 2 | Class 2 | – | Class 3 | Class 3 | Class 4 |
| W content, wt.% | 90 | 90 | 92.5 | 92.5 | 93 | 95 | 95 | 97 |
Ni content, wt.% |
7.0 | 8.9 | 5.3 | 6.7 | 5.6 | 3.5 | 4.4 | 2.1 |
Fe content, wt.% |
3.0 | 1.1 | 2.2 | 0.8 | 1.4 | 1.5 | 0.6 | 0.9 |
Density, g/cm3 |
17.0 | 17.0 | 17.5 | 17.5 | 17.7 | 18.0 | 18.0 | 18.5 |
UTS, ksi |
≥ 110 | ≥ 110 | ≥ 110 | ≥ 110 | ≥ 110 | ≥ 105 | ≥ 105 | ≥ 100 |
UTS, MPa |
≥ 758 | ≥ 758 | ≥ 758 | ≥ 758 | ≥ 758 | ≥ 724 | ≥ 724 | ≥ 689 |
YS, ksi |
≥ 75 | ≥ 75 | ≥ 75 | ≥ 75 | ≥ 75 | ≥ 75 | ≥ 75 | ≥ 75 |
YS, MPa |
≥ 648 | ≥ 648 | ≥ 648 | ≥ 648 | ≥ 648 | ≥ 648 | ≥ 648 | ≥ 648 |
Elongation, % |
≥ 5 | ≥ 5 | ≥ 5 | ≥ 5 | ≥ 5 | ≥ 3 | ≥ 3 | ≥ 2 |
Hardness, HRC |
≤ 32 | ≤ 32 | ≤ 33 | ≤ 33 | ≤ 33 | ≤ 34 | ≤ 34 | ≤ 35 |
Mag. perm. |
> 1.05 | ≤ 1.05 | > 1.05 | ≤ 1.05 | > 1.05 | > 1.05 | ≤ 1.05 | > 1.05 |
We offer a broad range of ASTM B777 Tungsten Round Bars through a worldwide network of stock-keeping branches. These Tungsten Round Bar is use in various industries like :
Sweden, Kazakhstan, Tunisia, Oman, Egypt, Nigeria, Peru, Vietnam, Mexico, Malaysia, Belarus, Iran, Ukraine, Afghanistan, Chile, United States, New Zealand, Yemen, Colombia, Bahrain, France, Brazil, Sri Lanka, Trinidad & Tobago, Thailand, Norway, Philippines, Serbia, Bhutan, Poland, Japan, United Kingdom, Australia, United Arab Emirates, Turkey, Azerbaijan, South Africa, Czech Republic, Libya, Iran, Kenya, Costa Rica, Ghana, Switzerland, Saudi Arabia, Croatia, Nigeria, Poland, Belgium, Slovakia, Italy, Pakistan, Venezuela, Lithuania, South Korea, Taiwan, Chile, Ecuador, Romania, Mongolia, Greece, Algeria, Portugal, Angola, Hong Kong, Israel, Austria, Jordan, RuInconel ia, Estonia, Finland, China, Kuwait, Qatar, Bolivia, Morocco, Argentina, Bulgaria, Iraq, Bangladesh, Canada, Singapore, Gabon, Mexico, Denmark, Hungary, Netherlands, Lebanon, Spain, Indonesia.
Sharjah, Thane, Seoul, Thiruvananthapuram, Aberdeen, Granada, Toronto, Gurgaon, Mumbai, Chiyoda, Visakhapatnam, Muscat, Kuwait City, Coimbatore, Tehran, Houston, Chandigarh, Courbevoie, Indore, Atyrau, Surat, Ernakulam, Nagpur, Milan, Jakarta, Ulsan, Navi Mumbai, Hyderabad, Jeddah, New Delhi, Howrah, Brisbane, Madrid, Kanpur, Vadodara, Algiers, Dallas, Noida, Rajkot, Manama, Caracas, Istanbul, Rio de Janeiro, Calgary, Jamshedpur, Jaipur, Chennai, Ahmedabad, Port-of-Spain, New York, Ranchi, Haryana, Nashik, Abu Dhabi, Pimpri-Chinchwad, Cairo, Al Jubail, Doha, Ludhiana, Melbourne, Secunderabad, Bhopal, Dammam, Karachi, Pune, Ho Chi Minh City, Bogota, Bengaluru, Ankara, Lagos, Riyadh, Faridabad, Bangkok, Kolkata, Baroda, Busan, Ahvaz, Edmonton.
Steelo Fabrica is an ISO 9001:2015 Certified Manufacturer, Wholesaler, Supplier, Importer, Exporter, and Trader of a wide range of Bars and wires in a variety of materials like Stainless Steel, Duplex Steel, Inconel, Nickel, Hastelloy Titanium and Tantalum, Carbon Steel and more.
