Steelo Fabrica is a manufacturer and leading supplier of Round Bar of Ferralium 255 and Ferralium UNS S32550. These are superb quality bars produced at our large production unit. These are extensively claimed in numerous applications. We accomplish the requirement with a wide stock of Bar specifications, dimensions, and forms. Our consumers select appropriate Bar with domestic or global standards. We ensure the performance and quality of the Bar.
Attributes of Ferralium 255 Round Bar:
Table of Content

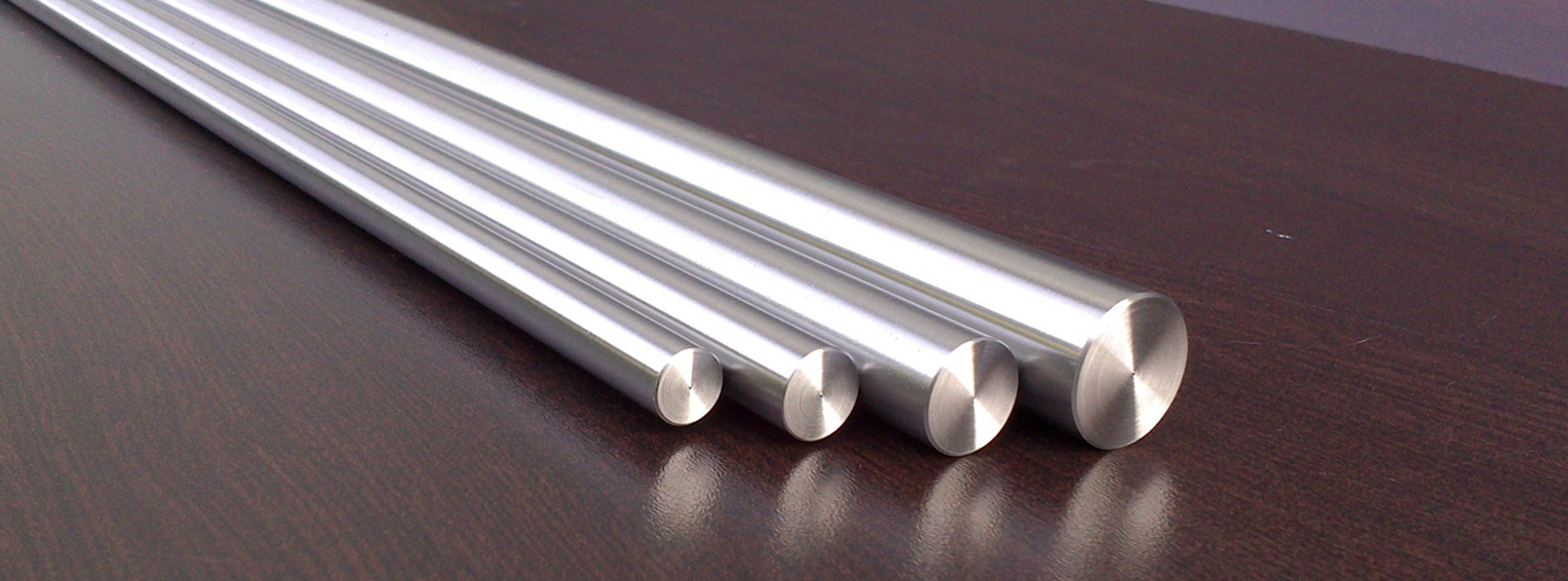

Ferralium 255 Round Bar is a cylindrical structure of material as long Bar made from grade Ferralium 255 material. It is either cold drawn or heat-treated with proper surface polish. The excellent rough turned surface of the Bar offers a fine appearance. Also, the faultless surface improves efficiency and surface stability.
Ferralium 255 is superior Chromium Duplex Steel that offers outstanding resistance against corrosion with exceptional strength. 25% of Chromium is added to improve these features. It has increased in Nickel, Molybdenum content in addition to the integration of Nitrogen.
It possesses attributes like:
Ferralium UNS S32550 is identical to 255-grade composition and purposed for superior performance in chloride surroundings. It offers outstanding resistance to deterioration in many chemical environments. It also reduces crevice and acid effects.
Ferralium UNS S32550 Round Bar is a tough and durable Bar used in many industrial and commercial applications. These Bars are easily Formable and adaptable in many systems. Ease of connection of Bar with threaded Bar is suitable in many complex systems. These Bars are utilized in a corrosive atmosphere and resist deterioration in acids, alkalis, and chlorides.
Ferralium 255 Round Bar is stabilized with Molybdenum improving pitting and crevice protection of the Bar. It is tough to sustain stress under high-pressure conditions. Exceptional resistance to brine increases the demand for these bars in oceanic applications. The Bar is immune to general oxidation conditions, rust, and chloride corrosion. It prevents stress cracking and decay in harsh acids like sulphuric acids and nitric acids.
Uses of Ferralium 255/UNS S32550 Round Bar:
ASTM A-276
ASME SA-276
UNS S32550
WNR. 1.4507
Specification : ASTM A276 / ASME SA276
Standard : EN, DIN, JIS, ASTM, BS, ASME, AISI
Round Bars : Outside Diameter in the range of 4mm to 500mm
Bright Bars : Outside Diameter in the range of 4mm to 100mm
Hex Bars : 18mm – 57mm (11/16″ to 2-3/4″)
Square Bars : 18mm – 47mm (11/16″ to 1-3/4″)
Finish : Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish
Length : 1 to 6 Meters, Custom Cut Lengths
Form : Round, Square, Hex (A/F), Rectangle Etc.
GRADE | STANDARD | WERKSTOFF NR. | UNS |
---|---|---|---|
Ferralium 255 | SD50 (Super Duplex 255) | 1.4507 | S32550 |
CD | Cold drawn | P | Polished |
BD | Bright drawn | SRE | Slit rolled edge |
CG | Centreless ground | HF | Hot finished |
CF | Cold finished | HRAP | Hot rolled annealed and pickled |
P&T | Peeled and turned | RT | Rough turned/peeled |
ST | Smooth turned | PR | Peeled and reeled |
US Bar | Metric | Japanese | Canadian/ASTM | ||||
---|---|---|---|---|---|---|---|
Diameter(Inch) | Super Duplex Ferralium 255 Bar Size | Diameter (millimeter) | Super Duplex Ferralium 255 Bar Size | Diameter (millimeter) | Super Duplex Ferralium 255 Bar Size | Diameter (millimeter2) | Super Duplex Ferralium 255 |
0.250 | #2 | 5 | 5 | 6 | 6 | 100 | 10M |
0.375 | #3 | 5.5 | 5.5 | 10 | 10 | 200 | 15M |
0.500 | #4 | 6 | 6 | 13 | 13 | 300 | 20M |
0.625 | #5 | 7 | 7 | 16 | 16 | 500 | 25M |
0.750 | #6 | 8 | 8 | 19 | 19 | 700 | 30M |
0.875 | #7 | 9 | 9 | 22 | 22 | 1000 | 35M |
1.000 | #8 | 10 | 10 | 25 | 25 | 1500 | 45M |
1.125 | #9 | 11 | 11 | 29 | 29 | 2500 | 55M |
1.250 | #10 | 12 | 12 | 32 | 32 | ||
1.375 | #11 | 14 | 14 | 35 | 35 | ||
1.500 | #12 | 16 | 16 | 38 | 38 | ||
1.625 | #13 | 18 | 18 | 41 | 41 | ||
1.750 | #14 | 20 | 20 | 44 | 44 | ||
1.875 | #15 | 22 | 22 | 48 | 48 | ||
2.000 | #16 | 25 | 25 | 51 | 51 | ||
2.250 | #18 | 28 | 28 | 57 | 57 | ||
32 | 32 | ||||||
36 | 36 | ||||||
40 | 40 | ||||||
44 | 44 | ||||||
50 | 50 |
Diameter in inch | Size in inch/MM | Weight Lbs/ft & Kg/M |
---|---|---|
1/16 | 0.0625 1.5875 | 0.010 / 0.01488 |
1/8 | 0.125 3.175 | 0.042 / 0.062496 |
3/32 | 0.0938 2.38252 | 0.0240 / 0.035712 |
5/32 | 0.1563 3.97002 | 0.065 / 0.09672 |
7/32 | 0.2188 5.55752 | 0.128 / 0.190464 |
3/16 | 0.1875 4.7625 | 0.094 / 0.139872 |
1/4 | 0.25 6.35 | 0.167 / 0.248496 |
5/16 | 0.3125 7.9375 | 0.260 / 0.38688 |
9/32 | 0.2813 7.14502 | 0.211 / 0.313968 |
3/8 | 0.375 9.525 | 0.376 / 0.559488 |
1/2 | 0.5 12.7 | 0.668 / 0.993984 |
7/16 | 0.4375 11.1125 | 0.512 / 0.761856 |
9/16 | 0.5625 14.2875 | 0.844 / 1.255872 |
11/16 | 0.6875 17.4625 | 1.264 / 1.880832 |
5/8 | 0.625 15.875 | 1.043 / 1.551984 |
3/4 | 0.75 19.05 | 1.502 / 2.234976 |
7/8 | 0.875 22.225 | 2.045 / 3.04296 |
13/16 | 0.8125 20.6375 | 1.761 / 2.620368 |
15/16 | 0.9375 23.8125 | 2.35 / 3.4968 |
1 1/16 | 1.0625 26.9875 | 3.012 / 4.481856 |
1 | 1 25.4 | 2.671 / 3.974448 |
1 1/8 | 1.125 28.575 | 3.38 / 5.02944 |
1 1/4 | 1.25 31.75 | 4.173 / 6.209424 |
1 3/16 | 1.1875 30.1625 | 3.77 / 5.60976 |
1 5/16 | 1.3125 33.3375 | 4.598 / 6.841824 |
HOW TO GET BEST PRICE OF SDSS Ferralium 255 ROUND BAR ?
If looking for Ferralium 255 Bars and Rod in exact length so first check SDSS Ferralium 255 price per KG in India and calculate with wight chart before negotiating with your supplier.
% | Cr | Ni | Mo | Cu | W | C | N | Mn | Si | P | S | Fe |
---|---|---|---|---|---|---|---|---|---|---|---|---|
Min | 24 | 6 | 3 | 0.5 | 0.5 | – | 0.2 | – | – | – | – | – |
Max | 26 | 8 | 4 | 1 | 1 | 0.03 | 0.3 | 1 | 1 | 0.030 | 0.010 | Balance |
Grades | Yield Strength (0.2%Offset) | .Tensile Strength | Elongation |
Ferralium 255 | MPa – 570-600 | MPa – 790 | 25 % |
We offer a broad range of ASTM A276 SDSS Ferralium 255 Round Bars through a worldwide network of stock-keeping branches. These Ferralium 255 Super Duplex Steel Round Bar is use in various industries like :
