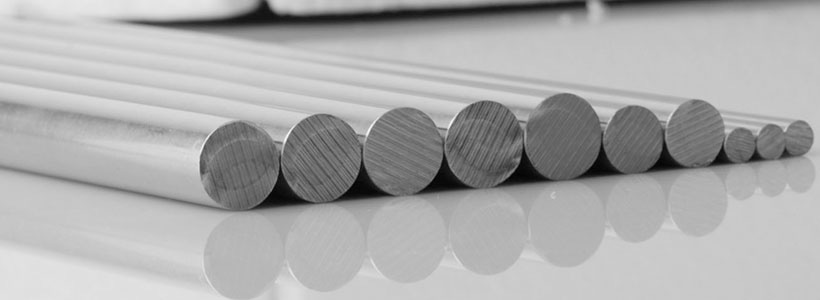

Steelo Fabrica is the leading fabricator and supplier of stainless-steel custom 455 ASTM forged bars or rods.
Generally, forged bars and rods are used for multiple-piece requirements for the manufacturing industry in a customized way.
Chemical composition of the UNS S45500 rods:
Table of Content
Why stainless steel custom 455 forged bars?
In the precipitation hardening stainless steel sectors it is considered as it is an advanced martensitic alloy. This material has excellent corrosion resistance, one-step age hardenability, and higher yield strength, making it preferable for certain applications.
Advantages of the stainless steel custom 455 rods:
Characteristics of the ASTM F-899 UNS S45500 forged bars:
UNS S45500 material has been machined successfully using similar methods for other high-strength alloys with strong work supports, slower speeds, and a better quantity of coolant.
ASTM F-899 UNS S45500 forged bars can be satisfactorily welded using shielded fusion and resistance welding process.
This alloy can be easily forged within the temperature range of 899 to 1260 degrees Celsius.
This stainless steel can be easily cold worked performed although it is martensitic in the annealed condition.
This grade material does not respond to heat treatment.
Application field of custom 455 forged rods:
Stainless steel grade custom 455 is widely used in applications where standard austenitic grades do not perform well, such as high strength required in corrosive environments.
We provide stainless steel 455 products in customizing dimensions for various industrial purposes.
ASTM F-899
AMS 5617
UNS S45500
WNR. 1.4543
Specification : ASTM F-899 / AMS 5617
Standard : EN, DIN, JIS, ASTM, BS, ASME, AISI
Size : 1000 MM TO 7000 MM
Outer Diameter : 100MM TO 400 mm Max OD
Weight : 1000 to 6000 Kg
Finish : Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish
Tolerance : 0/+2-3mm
STANDARD | Material No | UNS |
Custom 455 | 1.4543 | S45500 |
US Bar | Metric | Japanese | Canadian/ASTM | ||||
---|---|---|---|---|---|---|---|
Diameter(Inch) | Size | Diameter (millimeter) | Size | Diameter (millimeter) | Size | Diameter (millimeter2) | Size |
0.250 | #2 | 5 | 5 | 6 | 6 | 100 | 10M |
0.375 | #3 | 5.5 | 5.5 | 10 | 10 | 200 | 15M |
0.500 | #4 | 6 | 6 | 13 | 13 | 300 | 20M |
0.625 | #5 | 7 | 7 | 16 | 16 | 500 | 25M |
0.750 | #6 | 8 | 8 | 19 | 19 | 700 | 30M |
0.875 | #7 | 9 | 9 | 22 | 22 | 1000 | 35M |
1.000 | #8 | 10 | 10 | 25 | 25 | 1500 | 45M |
1.125 | #9 | 11 | 11 | 29 | 29 | 2500 | 55M |
1.250 | #10 | 12 | 12 | 32 | 32 | ||
1.375 | #11 | 14 | 14 | 35 | 35 | ||
1.500 | #12 | 16 | 16 | 38 | 38 | ||
1.625 | #13 | 18 | 18 | 41 | 41 | ||
1.750 | #14 | 20 | 20 | 44 | 44 | ||
1.875 | #15 | 22 | 22 | 48 | 48 | ||
2.000 | #16 | 25 | 25 | 51 | 51 | ||
2.250 | #18 | 28 | 28 | 57 | 57 | ||
32 | 32 | ||||||
36 | 36 | ||||||
40 | 40 | ||||||
44 | 44 | ||||||
50 | 50 |
Size | kilogram / Meter | kilogram / Foot | Size | kilogram / Meter | kilogram / Foot | Size | kilogram / Meter | kilogram / Foot |
---|---|---|---|---|---|---|---|---|
1/8″ | 0.062 | 0.019 | 22 millimeter | 2.979 | 0.908 | 3 to 1/4″ | 41.996 | 12.800 |
3 millimeter | 0.055 | 0.017 | 20 millimeter | 2.470 | 0.753 | 3″ | 35.762 | 10.900 |
4 millimeter | 0.098 | 0.030 | 24 millimeter | 3.543 | 1.080 | 3 to 3/4″ | 55.780 | 17.001 |
5/32″ | 0.095 | 0.029 | 7/8″ | 3.038 | 0.926 | 3 to 1/2″ | 48.772 | 14.850 |
5 millimeter | 0.154 | 0.047 | 1″ | 3.970 | 1.210 | 4 to 1/4″ | 72.249 | 21.908 |
3/16″ | 0.141 | 0.043 | 25 millimeter | 3.871 | 1.180 | 4″ | 63.340 | 19.306 |
6 millimeter | 0.223 | 0.068 | 27 millimeter | 4.490 | 1.368 | 4 to 3/4″ | 90.249 | 27.366 |
7/32″ | 0.190 | 0.058 | 26 millimeter | 4.170 | 1.271 | 4 to 1/2″ | 80.340 | 24.4487 |
7 millimeter | 0.298 | 0.091 | 30 millimeter | 5.548 | 1.691 | 5 to 1/2″ | 121.000 | 36.690 |
1/4″ | 0.249 | 0.076 | 1 to 1/8″ | 5.033 | 1.534 | 5″ | 99.940 | 30.461 |
8 millimeter | 0.398 | 0.120 | 32 millimeter | 6.314 | 1.894 | 6 to 1/2″ | 167.630 | 51.093 |
5/16″ | 0.387 | 0.118 | 1 to 1/4″ | 6.349 | 1.924 | 6″ | 143.900 | 43.860 |
3/8″ | 0.557 | 0.170 | 35 millimeter | 7.553 | 2.390 | 7 to 1/2″ | 225.000 | 68.226 |
9 millimeter | 0.498 | 0.152 | 1 to 3/8″ | 7.550 | 2.303 | 7″ | 196.000 | 59.432 |
11 millimeter | 0.748 | 0.228 | 38 millimeter | 8.903 | 2.792 | 10″ | 397.140 | 121.048 |
10 millimeter | 0.620 | 0.189 | 36 millimeter | 7.999 | 2.438 | 8″ | 254.55 | 77.586 |
12 millimeter | 0.889 | 0.271 | 40 millimeter | 9.872 | 3.009 | |||
7/16″ | 0.761 | 0.232 | 1 to 1/2″ | 8.951 | 2.715 | |||
13 millimeter | 1.043 | 0.318 | 1 to 3/4″ | 12.179 | 3.712 | |||
1/2″ | 0.994 | 0.303 | 1 to 5/8″ | 10.449 | 3.200 | |||
9/16″ | 1.256 | 0.383 | 1 to 7/8″ | 13.977 | 4.260 | |||
14 millimeter | 1.207 | 0.368 | 45 millimeter | 12.555 | 3.807 | |||
5/8″ | 1.551 | 0.473 | 50 millimeter | 15.414 | 4.698 | |||
15 millimeter | 1.391 | 0.424 | 48 millimeter | 14.205 | 4.330 | |||
17 millimeter | 1.791 | 0.543 | 2 to 1/8″ | 17.963 | 5.475 | |||
16 millimeter | 1.578 | 0.481 | 2″ | 15.906 | 4.848 | |||
18 millimeter | 2.001 | 0.610 | 60 millimeter | 22.205 | 6.768 | |||
11/16″ | 1.880 | 0.573 | 2 to 1/4″ | 20.128 | 6.135 | |||
3/4″ | 2.237 | 0.682 | 2 to 3/8″ | 22.435 | 6.838 | |||
2 to 1/2″ | 24.856 | 7.576 | ||||||
2 to 5/8″ | 27.409 | 8.354 | ||||||
2 to 3/4″ | 30.083 | 9.169 |
HOW TO GET BEST PRICE OF SS Custom 455 FORGED BAR ?
If looking for Custom 455 Forged Bars and Rod in exact length so first check SS Custom 455 price per KG in India and calculate with wight chart before negotiating with your supplier.
Chemical Composition Limits | ||||||||||||
Weight% | C | P | Si | Ni | Cu | Cb + Ta | Mn | S | Cr | Mo | Ti | Fe |
Alloy 455 | 0.05 max | 0.040 max | 0.50 max | 7.5-9.5 | 1.5-2.5 | 0.10-0.50 | 0.50 max | 0.030 max | 11.0-12.5 | 0.50 max | 0.80-1.4 | Bal |
Material | Condition |
0.2 % Yield Strength (Mpa) | Ultimate Tensile Strength (Mpa) | Notch Tensile Strength | % Elongation in 4D | % Reduction of Area | Rockwell C Hardness | Charpy V Notch Impact Strength (ft-lbs) |
Alloy 455 Bar 1″ Section Custom 455® |
A | 793 | 1000 | 1585 | 14 | 60 | 31 | 70 |
Alloy 455 Bar 1″ Section Custom 455® |
H900 | 1689 | 1724 | 1792 | 10 | 45 | 49 | 9 |
Alloy 455 Bar 1″ Section Custom 455® |
H950 | 1551 | 1620 | 2068 | 12 | 50 | 48 | 14 |
Alloy 455 Bar 1″ Section Custom 455® |
H1000 | 1379 | 1448 | 2000 | 14 | 55 | 45 | 20 |
Alloy 455 Bar 1″ Section Custom 455® |
H1050 | 1207 | 1310 | 1793 | 15 | 55 | 40 | 35 |
We offer a broad range of ASTM F-899 SS Custom 455 Forged Bars through a worldwide network of stock-keeping branches. These Custom 455 Stainless Steel Forged Rods is use in various industries like :
