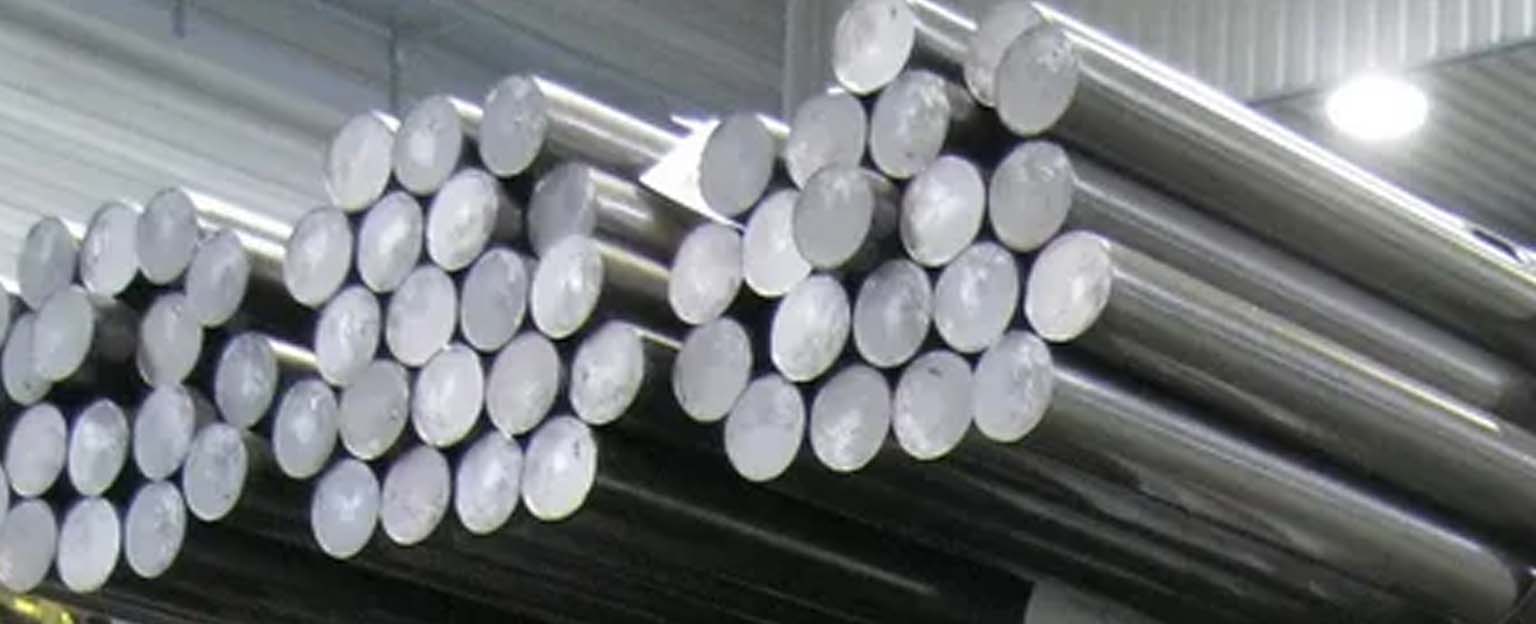

Steel Fabrica is one of the renowned exporters, manufacturers and suppliers of Monel Alloy K500 Round Bars globally. Our Monel K500 Round Bars are accessible to our valuable customers in a different range of diameters, wall thicknesses and sizes in customized form and at quite affordable rates. We are using the most excellent quality of raw material For manufacturing the Monel K500 Round Bars.
Table of Content
What is Monel K500 Round Bars?
Monel K500 Round Bars are a nickel-copper alloy, precipitation hardenable with the accumulation of titanium and aluminum. Monel K500 Round Bars retains the outstanding corrosion-resistant characteristics of Monel 400 and has better power and rigidness after precipitation hardening when compared with Alloy 400. Monel K500 Round Bars is generally well applicable for centrifugal pumps in the marine area due to its high force and low corrosion rates in high-velocity seawater. These Monel K500 Round Bars are also known as UNS N04405 Round Bars.
Features Of Monel K500 Round Bars:
Application of Monel K500 Round Bars
Typical usage for Monel K500 Round Bars includes many industrial applications. For instance, the Monel K500 Round Bars can be used to construct impellers, propeller shafts, pump shafts. The Monel K500 Round Bars could also be used to manufacture valve components for ships and offshore drilling towers, bolting and oil well drill collars and instrumentation components meant for production in the oil and gas industry.
What are the available sizes and forms of Monel K500 Round Bar?
Monel K500 Round Bar is available in various sizes & forms. The diameter sizes typically range from small diameters, such as 6 mm (0.24 inches), to larger diameters like 300 mm (11.81 inches). It can be obtained in different lengths including standard lengths of 3 meters (10 feet) or custom lengths. Monel K500 Round Bars are commonly supplied in the form of straight bars.
Can Monel K500 Round Bar be heat treated?
Yes, Monel K500 Round Bar can undergo heat treatment to enhance its mechanical properties. It can be age-hardened by heating & cooling to room temperature to achieve greater strength & hardness. Heat treatment should be performed by following specific procedures to obtain the desired material characteristics.
What are the advantages of using Monel K500 Bar?
Monel K500 Bar has excellent resistance to corrosion including in marine and acidic environments. It maintains its mechanical properties at high temperatures, making it suitable for high-temperature applications. Monel K500 Bar is known for its high strength and toughness providing reliability & durability in demanding conditions.
Specification : ASTM B865/ ASME SB865
Standard : EN, DIN, JIS, ASTM, BS, ASME, AISI
Round Bars : Outside Diameter in the range of 4mm to 500mm
Bright Bars : Outside Diameter in the range of 4mm to 100mm
Hex Bars : 18mm – 57mm (11/16″ to 2-3/4″)
Square Bars : 18mm – 47mm (11/16″ to 1-3/4″)
Finish : Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish
Length : 1 to 6 Meters, Custom Cut Lengths
Form : Round, Square, Hex (A/F), Rectangle Etc.
| STANDARD | WERKSTOFF NR. | UNS |
| Monel K500 | 2.4375 | N05500 |
| CD | Cold drawn | P | Polished |
| BD | Bright drawn | SRE | Slit rolled edge |
| CG | Centreless ground | HF | Hot finished |
| CF | Cold finished | HRAP | Hot rolled annealed and pickled |
| P&T | Peeled and turned | RT | Rough turned/peeled |
| ST | Smooth turned | PR | Peeled and reeled |
| Monel K500 Round bar Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Alloy K500 Cold Drawn and Polish Round Bar | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
| Nickel Alloy K500 Cold Drawn and Ground Bar | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| UNS N05500 Peeled and Polished Round Bar | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Monel K500 Peeled and Ground Bar | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
| Monel K500 Round bar | ||||||||
|---|---|---|---|---|---|---|---|---|
| Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr |
| 3mm | 0.017 | 0.055 | 20mm | 0.753 | 2.470 | 3″ | 10.900 | 35.762 |
| 1/8″ | 0.019 | 0.062 | 22mm | 0.908 | 2.979 | 3-1/4″ | 12.800 | 41.996 |
| 5/32″ | 0.029 | 0.095 | 7/8″ | 0.926 | 3.038 | 3-1/2″ | 14.850 | 48.772 |
| 4mm | 0.030 | 0.098 | 24mm | 1.080 | 3.543 | 3-3/4″ | 17.001 | 55.780 |
| 3/16″ | 0.043 | 0.141 | 25mm | 1.180 | 3.871 | 4″ | 19.306 | 63.340 |
| 5mm | 0.047 | 0.154 | 1″ | 1.210 | 3.970 | 4-1/4″ | 21.908 | 72.249 |
| 7/32″ | 0.058 | 0.190 | 26mm | 1.271 | 4.170 | 4-1/2″ | 24.4487 | 80.340 |
| 6mm | 0.068 | 0.223 | 27mm | 1.368 | 4.490 | 4-3/4″ | 27.366 | 90.249 |
| 1/4″ | 0.076 | 0.249 | 1-1/8″ | 1.534 | 5.033 | 5″ | 30.461 | 99.940 |
| 7mm | 0.091 | 0.298 | 30mm | 1.691 | 5.548 | 5-1/2″ | 36.690 | 121.000 |
| 5/16″ | 0.118 | 0.387 | 1-1/4″ | 1.924 | 6.349 | 6″ | 43.860 | 143.900 |
| 8mm | 0.120 | 0.398 | 32mm | 1.894 | 6.314 | 6-1/2″ | 51.093 | 167.630 |
| 9mm | 0.152 | 0.498 | 1-3/8″ | 2.303 | 7.550 | 7″ | 59.432 | 196.000 |
| 3/8″ | 0.170 | 0.557 | 35mm | 2.390 | 7.553 | 7-1/2″ | 68.226 | 225.000 |
| 10mm | 0.189 | 0.620 | 36mm | 2.438 | 7.999 | 8″ | 77.586 | 254.55 |
| 11mm | 0.228 | 0.748 | 38mm | 2.792 | 8.903 | 10″ | 121.048 | 397.140 |
| 7/16″ | 0.232 | 0.761 | 1-1/2″ | 2.715 | 8.951 | |||
| 12mm | 0.271 | 0.889 | 40mm | 3.009 | 9.872 | |||
| 1/2″ | 0.303 | 0.994 | 1-5/8″ | 3.200 | 10.449 | |||
| 13mm | 0.318 | 1.043 | 1-3/4″ | 3.712 | 12.179 | |||
| 14mm | 0.368 | 1.207 | 45mm | 3.807 | 12.555 | |||
| 9/16″ | 0.383 | 1.256 | 1-7/8″ | 4.260 | 13.977 | |||
| 15mm | 0.424 | 1.391 | 48mm | 4.330 | 14.205 | |||
| 5/8″ | 0.473 | 1.551 | 50mm | 4.698 | 15.414 | |||
| 16mm | 0.481 | 1.578 | 2″ | 4.848 | 15.906 | |||
| 17mm | 0.543 | 1.791 | 2-1/8″ | 5.475 | 17.963 | |||
| 11/16″ | 0.573 | 1.880 | 2-1/4″ | 6.135 | 20.128 | |||
| 18mm | 0.610 | 2.001 | 60mm | 6.768 | 22.205 | |||
| 3/4″ | 0.682 | 2.237 | 2-3/8″ | 6.838 | 22.435 | |||
| 2-1/2″ | 7.576 | 24.856 | ||||||
| 2-5/8″ | 8.354 | 27.409 | ||||||
| 2-3/4″ | 9.169 | 30.083 | ||||||
HOW TO GET BEST PRICE OF MONEL K500 ROUND BAR ?
If looking for Alloy Bars and Rod in exact length so first check Monel K500 price per KG in India and calculate with wight chart before negotiating with your supplier.
| Grade | Ni | Fe | C | Mn | Si | Cu | Al | S | Ti |
| Monel K500 | 63.0 min | 0.5 – 2 | 0.25 max | 1.5 max | 0.5 max | 27.0 – 33.0 | 2.3 – 3.15 | 0.010 max | 0.35 – 0.85 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.44 g/cm3 | 1350 °C (2460 °F) | Psi – 160000 , MPa – 1100 | Psi – 115000 , MPa – 790 | 20 % |
We offer a broad range of ASTM B865 Monel K500 Round Bars through a worldwide network of stock-keeping branches. These K500 Monel Round Bar is use in various industries like :
