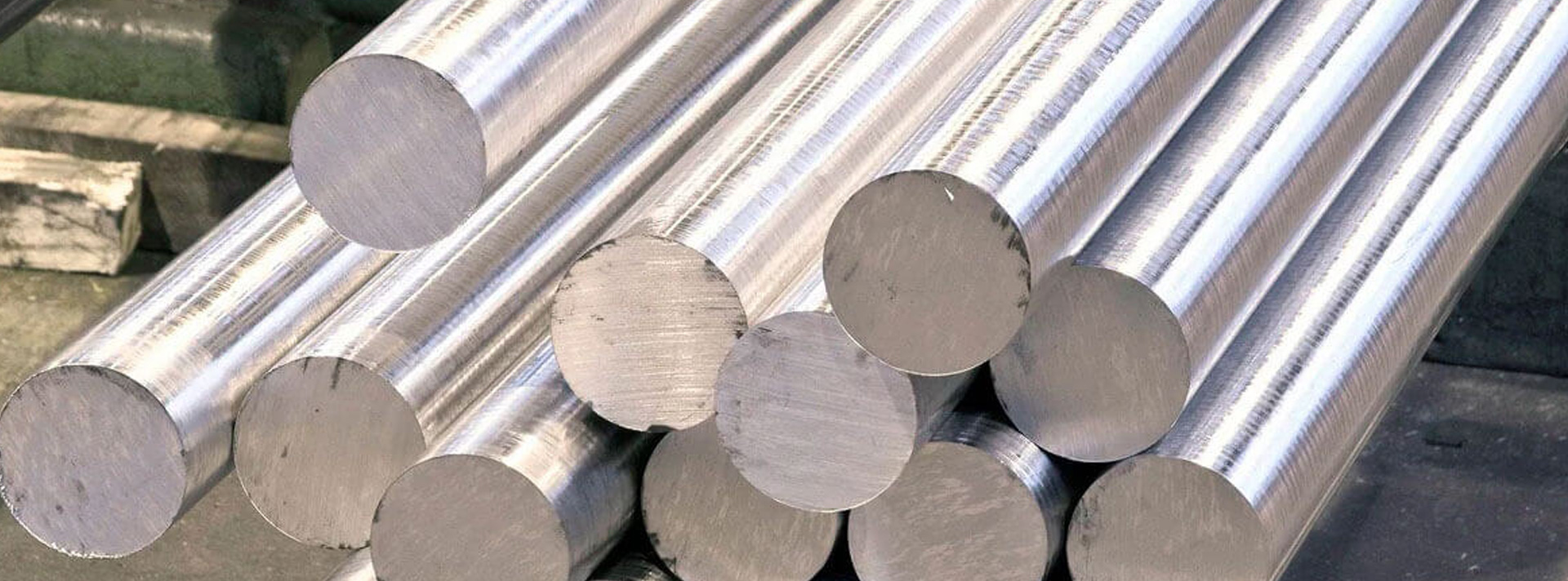

Super Duplex F55 Forged Bar/rod
We at Steelo Fabrica are the well-known fabricator, distributor, and exporter of Super duplex F55 forged bars and rods. We are supplying these forged bars in many demanded dimensions to offer the perfect solution for various industries.
Super duplex F55 is one of the suitable grades for forged bar manufacturing. These bars are usually used for manufacturing and engineering industries.
Chemical composition of the F55 rods:
The chemical composition of the F55 rods includes carbon, iron, chromium, Copper, Molybdenum, Manganese, Nitrogen, and other metals.
Table of Content
Addition of the nickel and copper in the rod enhances the corrosion resistance property.
These materials in the component rod enhance the properties of the rod in various applications.
Few benefits of the forged bar:
What are the features of the super duplex F55 forged bar?
These rods have many mechanical properties that make them more popular among other types of material. These are best suitable for different processes like bending, fusion welding, and forming process.
We are offering rods which delivers the best mechanical properties and corrosion resistance property. These F55 rods also have qualities such as dimensional accuracy, smooth finish, toughness, high strength, and resistance corrosion strength.
Super duplex F55 rods deliver excellent resistance compared to pitting corrosion, chloride stress corrosion cracking, and crevice corrosion cracking. These high-grade forged bars are perfect for use in varied applications where resistance against oxidation is necessary for proper working.
Molybdenum content in the forged bar lends a hand for resistance against embrittlement. Other elements such as cerium, zirconium are added to raise the hardiness for controlling inclusions.
What are the applications of the F55 forged bars?
Some of the significant application areas are listed as below:
ASTM A-182
ASME SA-182
UNS S32760
WNR. 1.4501
Specification : ASTM A182 / ASME SA182
Standard : EN, DIN, JIS, ASTM, BS, ASME, AISI
Size : 1000 MM TO 7000 MM
Outer Diameter : 100MM TO 400 mm Max OD
Weight : 1000 to 6000 Kg
Finish : Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish
Tolerance : 0/+2-3mm
| STANDARD | WERKSTOFF NR. | UNS |
| Super Duplex F55 | 1.4501 | S32760 |
| US Bar | Metric | Japanese | Canadian/ASTM | ||||
|---|---|---|---|---|---|---|---|
| Diameter(Inch) | Size | Diameter (millimeter) | Size | Diameter (millimeter) | Size | Diameter (millimeter2) | Size |
| 0.250 | #2 | 5 | 5 | 6 | 6 | 100 | 10M |
| 0.375 | #3 | 5.5 | 5.5 | 10 | 10 | 200 | 15M |
| 0.500 | #4 | 6 | 6 | 13 | 13 | 300 | 20M |
| 0.625 | #5 | 7 | 7 | 16 | 16 | 500 | 25M |
| 0.750 | #6 | 8 | 8 | 19 | 19 | 700 | 30M |
| 0.875 | #7 | 9 | 9 | 22 | 22 | 1000 | 35M |
| 1.000 | #8 | 10 | 10 | 25 | 25 | 1500 | 45M |
| 1.125 | #9 | 11 | 11 | 29 | 29 | 2500 | 55M |
| 1.250 | #10 | 12 | 12 | 32 | 32 | ||
| 1.375 | #11 | 14 | 14 | 35 | 35 | ||
| 1.500 | #12 | 16 | 16 | 38 | 38 | ||
| 1.625 | #13 | 18 | 18 | 41 | 41 | ||
| 1.750 | #14 | 20 | 20 | 44 | 44 | ||
| 1.875 | #15 | 22 | 22 | 48 | 48 | ||
| 2.000 | #16 | 25 | 25 | 51 | 51 | ||
| 2.250 | #18 | 28 | 28 | 57 | 57 | ||
| 32 | 32 | ||||||
| 36 | 36 | ||||||
| 40 | 40 | ||||||
| 44 | 44 | ||||||
| 50 | 50 | ||||||
| Size | kilogram / Meter | kilogram / Foot | Size | kilogram / Meter | kilogram / Foot | Size | kilogram / Meter | kilogram / Foot |
|---|---|---|---|---|---|---|---|---|
| 1/8″ | 0.062 | 0.019 | 22 millimeter | 2.979 | 0.908 | 3 to 1/4″ | 41.996 | 12.800 |
| 3 millimeter | 0.055 | 0.017 | 20 millimeter | 2.470 | 0.753 | 3″ | 35.762 | 10.900 |
| 4 millimeter | 0.098 | 0.030 | 24 millimeter | 3.543 | 1.080 | 3 to 3/4″ | 55.780 | 17.001 |
| 5/32″ | 0.095 | 0.029 | 7/8″ | 3.038 | 0.926 | 3 to 1/2″ | 48.772 | 14.850 |
| 5 millimeter | 0.154 | 0.047 | 1″ | 3.970 | 1.210 | 4 to 1/4″ | 72.249 | 21.908 |
| 3/16″ | 0.141 | 0.043 | 25 millimeter | 3.871 | 1.180 | 4″ | 63.340 | 19.306 |
| 6 millimeter | 0.223 | 0.068 | 27 millimeter | 4.490 | 1.368 | 4 to 3/4″ | 90.249 | 27.366 |
| 7/32″ | 0.190 | 0.058 | 26 millimeter | 4.170 | 1.271 | 4 to 1/2″ | 80.340 | 24.4487 |
| 7 millimeter | 0.298 | 0.091 | 30 millimeter | 5.548 | 1.691 | 5 to 1/2″ | 121.000 | 36.690 |
| 1/4″ | 0.249 | 0.076 | 1 to 1/8″ | 5.033 | 1.534 | 5″ | 99.940 | 30.461 |
| 8 millimeter | 0.398 | 0.120 | 32 millimeter | 6.314 | 1.894 | 6 to 1/2″ | 167.630 | 51.093 |
| 5/16″ | 0.387 | 0.118 | 1 to 1/4″ | 6.349 | 1.924 | 6″ | 143.900 | 43.860 |
| 3/8″ | 0.557 | 0.170 | 35 millimeter | 7.553 | 2.390 | 7 to 1/2″ | 225.000 | 68.226 |
| 9 millimeter | 0.498 | 0.152 | 1 to 3/8″ | 7.550 | 2.303 | 7″ | 196.000 | 59.432 |
| 11 millimeter | 0.748 | 0.228 | 38 millimeter | 8.903 | 2.792 | 10″ | 397.140 | 121.048 |
| 10 millimeter | 0.620 | 0.189 | 36 millimeter | 7.999 | 2.438 | 8″ | 254.55 | 77.586 |
| 12 millimeter | 0.889 | 0.271 | 40 millimeter | 9.872 | 3.009 | |||
| 7/16″ | 0.761 | 0.232 | 1 to 1/2″ | 8.951 | 2.715 | |||
| 13 millimeter | 1.043 | 0.318 | 1 to 3/4″ | 12.179 | 3.712 | |||
| 1/2″ | 0.994 | 0.303 | 1 to 5/8″ | 10.449 | 3.200 | |||
| 9/16″ | 1.256 | 0.383 | 1 to 7/8″ | 13.977 | 4.260 | |||
| 14 millimeter | 1.207 | 0.368 | 45 millimeter | 12.555 | 3.807 | |||
| 5/8″ | 1.551 | 0.473 | 50 millimeter | 15.414 | 4.698 | |||
| 15 millimeter | 1.391 | 0.424 | 48 millimeter | 14.205 | 4.330 | |||
| 17 millimeter | 1.791 | 0.543 | 2 to 1/8″ | 17.963 | 5.475 | |||
| 16 millimeter | 1.578 | 0.481 | 2″ | 15.906 | 4.848 | |||
| 18 millimeter | 2.001 | 0.610 | 60 millimeter | 22.205 | 6.768 | |||
| 11/16″ | 1.880 | 0.573 | 2 to 1/4″ | 20.128 | 6.135 | |||
| 3/4″ | 2.237 | 0.682 | 2 to 3/8″ | 22.435 | 6.838 | |||
| 2 to 1/2″ | 24.856 | 7.576 | ||||||
| 2 to 5/8″ | 27.409 | 8.354 | ||||||
| 2 to 3/4″ | 30.083 | 9.169 |
HOW TO GET BEST PRICE OF SDSS F55 FORGED BAR ?
If looking for F55 Forged Bars and Rod in exact length so first check SDSS F55 price per KG in India and calculate with wight chart before negotiating with your supplier.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| F55 | 0.03 max | 2.0 Max | 1 Max | 0.03 Max | 0.02 Max | 21 – 23 | 2.5 – 3.5 | 4.5 – 6.5 | 0.80 – 0.20 | – |
| Grades | Tensile Strength (ksi) min | Elongation (% in 50mm) min | Yield Strength 0.2% Proof (ksi) min | Hardness |
| F55 | 105 | 35 | 43 | 255 |
We offer a broad range of ASTM A182 SDSS F55 Forged Bars through a worldwide network of stock-keeping branches. These F55 Super Duplex Steel Forged Rods is use in various industries like :
