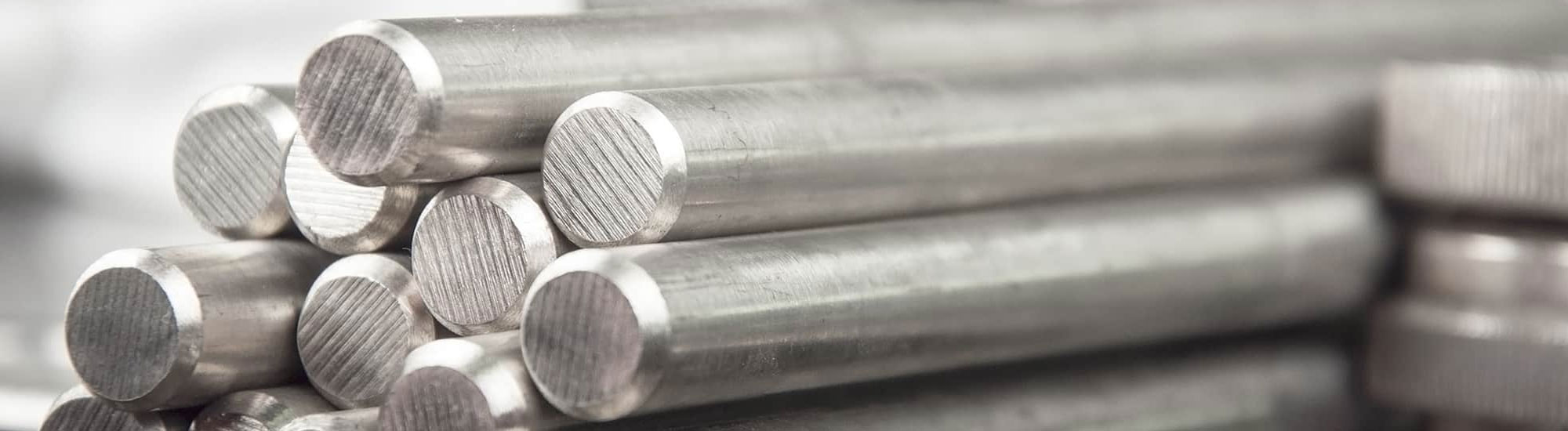

Hastelloy B2 Forged Bar is a high-performance alloy bar made primarily of nickel and molybdenum with significant corrosion resistance, especially in reducing environments. It undergoes a forging process to attain its desired shape, which enhances its mechanical properties, including high tensile strength and exceptional resistance to various forms of chemical corrosion, such as acids and oxidizing agents.
Hastelloy B2 Forged Bars are commonly used in chemical processing, petrochemical, and pharmaceutical industries due to their superior corrosion resistance and reliability in aggressive chemical environments. They are a top choice for critical applications where corrosion resistance is paramount.
Table of Content
Hastelloy B2 Forged Bars offer a range of significant benefits, primarily due to their exceptional corrosion resistance properties. They excel in harsh chemical environments, standing up to strong acids, bases, and oxidizing agents. This resistance ensures a longer service life, reducing maintenance and replacement costs. The Hastelloy B2 Round Bar is a corrosion-resistant alloy designed for exceptional resistance to various acidic environments, making it ideal for chemical processing and pharmaceutical applications. Its round profile and Hastelloy B2 composition ensure reliability and longevity in highly corrosive conditions.
These bars maintain their mechanical strength and corrosion resistance even at elevated temperatures, making them suitable for high-temperature applications. Their versatility extends across various industries, including chemical processing, petrochemical, pharmaceutical, and more, making Hastelloy B2 Forged Bars a top choice for critical applications where corrosion resistance and durability are paramount.
Hastelloy B2 Forged Bars have various applications across industries due to their exceptional corrosion resistance properties. They are extensively used in chemical processing plants, providing reliable resistance to various aggressive chemicals, including sulfuric acid, hydrochloric acid, and phosphoric acid. The Hastelloy B3 Forged Bar is a specialized alloy known for its superior resistance to a wide range of corrosive chemicals, making it a vital choice for chemical processing equipment and industrial applications. Its precisely forged construction ensures durability and reliability even in highly aggressive environments.
These bars find use in the pharmaceutical and petrochemical industries and applications involving flue gas desulfurization systems, heat exchangers, and reaction vessels. Their versatility and ability to maintain structural integrity at high temperatures make Hastelloy B2 Forged Bars a crucial component in critical environments where corrosion resistance is paramount.
Hastelloy B2 Forged Bars possess a unique combination of properties that make them highly desirable in demanding industrial applications. One of their most notable properties is exceptional corrosion resistance, particularly in reducing environments. They exhibit resistance to various aggressive chemicals, including sulfuric acid, hydrochloric acid, and phosphoric acid, making them ideal for chemical processing and petrochemical applications.
Hastelloy B2 Forged Bars offer excellent resistance to pitting, crevice corrosion, and stress-corrosion cracking. They maintain their mechanical strength and corrosion resistance even at elevated temperatures, enhancing their suitability for high-temperature applications.
Their high tensile and yield strength provide structural integrity, and they can be easily fabricated into various shapes and sizes through forging processes. These bars are known for their versatility, making them valuable components in chemical processing, pharmaceuticals, and flue gas desulfurization systems.
Can Hastelloy B2 Forged Bar be used in high-temperature applications?
Yes, Hastelloy B2 Forged Bar is well-suited for high-temperature applications. It offers excellent thermal stability & maintains its mechanical properties at elevated temperatures. The alloy can withstand temperatures up to around 1040°C (1900°F) without significant loss of strength & corrosion resistance, making it suitable for use in various high-temperature environments.
What are Hastelloy Alloy B2 Forged Rods?
Hastelloy Alloy B2 Forged Rods are rods made from Hastelloy B2, a nickel-based alloy known for its exceptional resistance to various corrosive environments. These rods are produced through the forging process, producing a strong & reliable product suitable for demanding applications.
What sizes are available for Hastelloy Alloy B2 Forged Rods?
Hastelloy Alloy B2 Forged Rods are available in various sizes to accommodate different requirements. The diameter of the rods typically ranges from smaller sizes, such as 1/4 inch or 6 mm, to larger diameters, such as 10 inches or 250 mm. The length of the rods can vary based on specific customer needs & supplier capabilities.
ASTM B-335
ASME SB-335
UNS N10665
WNR. 2.4617
Specification : ASTM B335 / ASME SB335
Standard : EN, DIN, JIS, ASTM, BS, ASME, AISI
Size : 1000 MM TO 7000 MM
Outer Diameter : 100MM TO 400 mm Max OD
Weight : 1000 to 6000 Kg
Finish : Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish
Tolerance : 0/+2-3mm
| STANDARD | WERKSTOFF NR. | UNS |
| Hastelloy B2 | 2.4617 | N10665 |
| Size & Dimensions of Hastelloy B2 round bar | |||||||
|---|---|---|---|---|---|---|---|
| Metric | US Bar | ASTM/ Canadian | Japanese | ||||
| Bar Size | Diam. (mm) | Bar Size | Diam. (Inch) | Bar Size | Diam. (mm2) | Bar Size | Diam. (mm) |
| 5 | 5 | #2 | 0.250 | 10M | 100 | 6 | 6 |
| 5.5 | 5.5 | #3 | 0.375 | 15M | 200 | 10 | 10 |
| 6 | 6 | #4 | 0.500 | 20M | 300 | 13 | 13 |
| 7 | 7 | #5 | 0.600 | 25M | 500 | 16 | 16 |
| 8 | 8 | #6 | 0.750 | 30M | 700 | 19 | 19 |
| 9 | 9 | #7 | 0.875 | 35M | 1000 | 22 | 22 |
| 10 | 10 | #8 | 1.000 | 45M | 1500 | 25 | 25 |
| 11 | 11 | #9 | 1.125 | 55M | 2500 | 29 | 29 |
| 12 | 12 | #10 | 1.250 | 32 | 32 | ||
| 14 | 14 | #11 | 1.375 | 35 | 35 | ||
| 16 | 16 | #12 | 1.500 | 38 | 38 | ||
| 18 | 18 | #13 | 1.600 | 41 | 41 | ||
| 20 | 20 | #14 | 1.750 | 44 | 44 | ||
| 22 | 22 | #15 | 1.875 | 48 | 48 | ||
| 25 | 25 | #16 | 2.000 | 51 | 51 | ||
| 28 | 28 | #18 | 2.250 | 57 | 57 | ||
| 32 | 32 | ||||||
| 36 | 36 | ||||||
| 40 | 40 | ||||||
| 44 | 44 | ||||||
| 50 | 50 | ||||||
| Round Bar | ||||||||
|---|---|---|---|---|---|---|---|---|
| Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr |
| 3mm | 0.017 | 0.055 | 20mm | 0.753 | 2.470 | 3″ | 10.900 | 35.762 |
| 1/8″ | 0.019 | 0.062 | 22mm | 0.908 | 2.979 | 3-1/4″ | 12.800 | 41.996 |
| 5/32″ | 0.029 | 0.095 | 7/8″ | 0.926 | 3.038 | 3-1/2″ | 14.850 | 48.772 |
| 4mm | 0.030 | 0.098 | 24mm | 1.080 | 3.543 | 3-3/4″ | 17.001 | 55.780 |
| 3/16″ | 0.043 | 0.141 | 25mm | 1.180 | 3.871 | 4″ | 19.306 | 63.340 |
| 5mm | 0.047 | 0.154 | 1″ | 1.210 | 3.970 | 4-1/4″ | 21.908 | 72.249 |
| 7/32″ | 0.058 | 0.190 | 26mm | 1.271 | 4.170 | 4-1/2″ | 24.4487 | 80.340 |
| 6mm | 0.068 | 0.223 | 27mm | 1.368 | 4.490 | 4-3/4″ | 27.366 | 90.249 |
| 1/4″ | 0.076 | 0.249 | 1-1/8″ | 1.534 | 5.033 | 5″ | 30.461 | 99.940 |
| 7mm | 0.091 | 0.298 | 30mm | 1.691 | 5.548 | 5-1/2″ | 36.690 | 121.000 |
| 5/16″ | 0.118 | 0.387 | 1-1/4″ | 1.924 | 6.349 | 6″ | 43.860 | 143.900 |
| 8mm | 0.120 | 0.398 | 32mm | 1.894 | 6.314 | 6-1/2″ | 51.093 | 167.630 |
| 9mm | 0.152 | 0.498 | 1-3/8″ | 2.303 | 7.550 | 7″ | 59.432 | 196.000 |
| 3/8″ | 0.170 | 0.557 | 35mm | 2.390 | 7.553 | 7-1/2″ | 68.226 | 225.000 |
| 10mm | 0.189 | 0.620 | 36mm | 2.438 | 7.999 | 8″ | 77.586 | 254.55 |
| 11mm | 0.228 | 0.748 | 38mm | 2.792 | 8.903 | 10″ | 121.048 | 397.140 |
| 7/16″ | 0.232 | 0.761 | 1-1/2″ | 2.715 | 8.951 | |||
| 12mm | 0.271 | 0.889 | 40mm | 3.009 | 9.872 | |||
| 1/2″ | 0.303 | 0.994 | 1-5/8″ | 3.200 | 10.449 | |||
| 13mm | 0.318 | 1.043 | 1-3/4″ | 3.712 | 12.179 | |||
| 14mm | 0.368 | 1.207 | 45mm | 3.807 | 12.555 | |||
| 9/16″ | 0.383 | 1.256 | 1-7/8″ | 4.260 | 13.977 | |||
| 15mm | 0.424 | 1.391 | 48mm | 4.330 | 14.205 | |||
| 5/8″ | 0.473 | 1.551 | 50mm | 4.698 | 15.414 | |||
| 16mm | 0.481 | 1.578 | 2″ | 4.848 | 15.906 | |||
| 17mm | 0.543 | 1.791 | 2-1/8″ | 5.475 | 17.963 | |||
| 11/16″ | 0.573 | 1.880 | 2-1/4″ | 6.135 | 20.128 | |||
| 18mm | 0.610 | 2.001 | 60mm | 6.768 | 22.205 | |||
| 3/4″ | 0.682 | 2.237 | 2-3/8″ | 6.838 | 22.435 | |||
| 2-1/2″ | 7.576 | 24.856 | ||||||
| 2-5/8″ | 8.354 | 27.409 | ||||||
| 2-3/4″ | 9.169 | 30.083 | ||||||
HOW TO GET BEST PRICE OF HASTELLOY B2 FORGED BAR ?
If looking for Alloy B2 Forged Bars and Rod in exact length so first check Hastelloy B2 price per KG in India and calculate with wight chart before negotiating with your supplier.
| Grade | Ni | Mo | Cr | Fe | Mn | C | P | S | Si |
| Hastelloy B2 | Bal | 26 – 30 | 1.0 | – | 0.1 | 0.02 | 0.04 | 0.03 | 0.1 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 9.2 g/cm3 | 1370 °C (2550 °F) | Psi – 1,15,000 , MPa –760 | Psi – 52,000 , MPa – 350 | 40% |
