Steelo Fabrica offers the great range of industrial products that include rods, bars and other forms of industrial products. We manufacture them with the help of great mechanical and chemical compositions, superior forms of grades and surface finishings. We take care of all properties, and features of Vascomax C350 Forged Bar and Vascomax C350 Forged Rods.
In addition to strength, two other critical properties are coming with the Vascomax C350 Forged Bar, such as fracture toughness and corrosion resistance. The corrosion current density taken from PDP scans was used as a pointer of corrosion resistance.

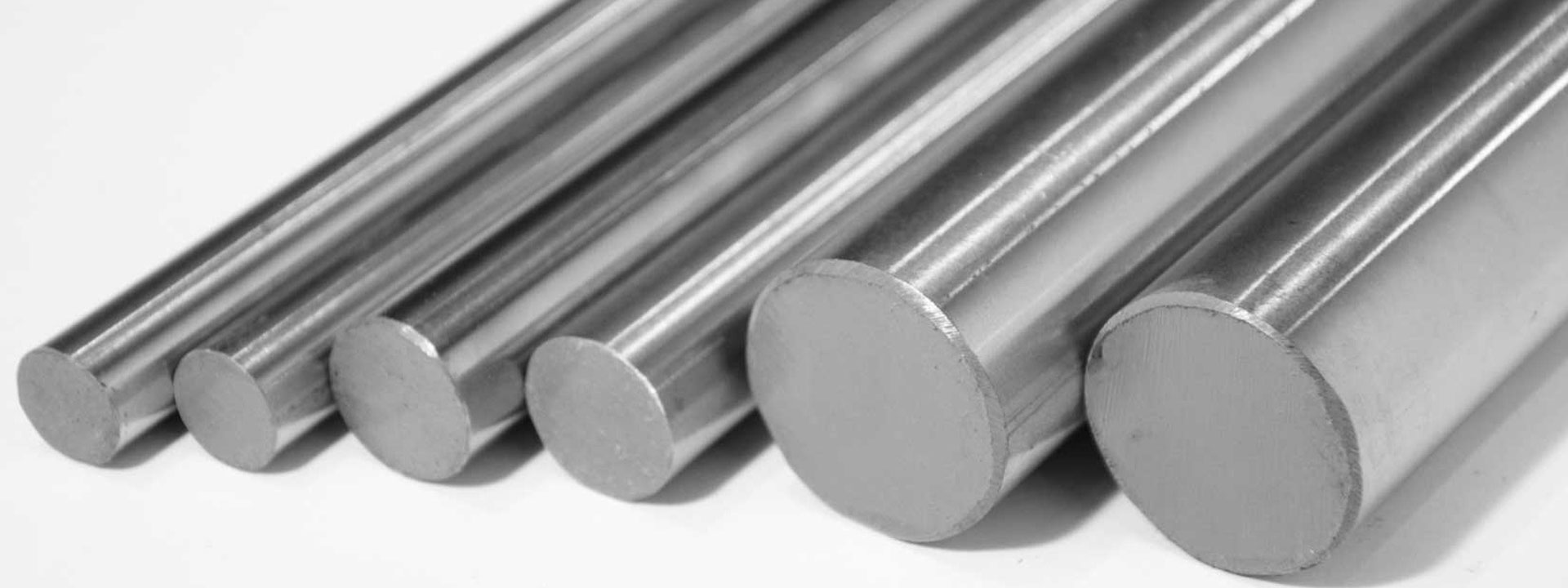

Maraging C350 Forged Bar is a nickel and cobalt steel alloy that is essentially carbon-free; other alloying elements contain moly, aluminum and titanium. Following is the material composition of the Maraging C350 Forged Bar.
Table of Content
The material composition of Vascomax C350 Forged Bar:
• Molybdenum
• Nickel
• Cobalt
• Titanium
• Aluminum
• Boron
• Zirconium
• Calcium
• Carbon
• Silicon
• Manganese
• Sulfur
• Phosphorus
• Iron balance
Minimum properties of Maraging C350 Forged Bar:
• Hardness level
• Charpy v-notch
• Reduction of area
• Elongation
• Yield strength
• Fracture toughness
The physical and mechanical properties of this bar and rod is superior as compared to other alloys. They are great for their use in critical applications as they work reliably with all forms of industrial applications.
Applications of Vascomax C350 Forged Bar and Maraging C350 Forged Bar:
• Extrusion tooling
• Pins
• Forging inserts and dies
• Shear blades
• Mechanized equipment
• Aerospace components
In the form of machining, the maraging material in the annealed condition is comparable to other alloys. However, when maraging is aged, the type of cutting tool and speeds change. Rigid equipment, firm tool supports, sharp tools and abundant coolant are essential.
In the form of welding, maraging is weldable without preheating in both the annealed and aged conditions. For Maraging C350 Forged Bar, only an aging heat treatment is needed to restore the weld.
AMS 6512
BS S162
UNS K92890
WNR. 1.6359
Specification : AMS 6512, MIL-S-46850, ASTM A538
Standard : EN, DIN, JIS, ASTM, BS, ASME, AISI
Round Bars : Outside Diameter in the range of 4mm to 500mm
Bright Bars : Outside Diameter in the range of 4mm to 100mm
Hex Bars : 18mm – 57mm (11/16″ to 2-3/4″)
Square Bars : 18mm – 47mm (11/16″ to 1-3/4″)
Finish : Black, Bright, Rough Turned, NO.4 Finish, Matt Finish, BA Finish
Length : 1 to 6 Meters, Custom Cut Lengths
Form : Round, Square, Hex (A/F), Rectangle Etc.
STANDARD | WERKSTOFF NR. | UNS | GB | BS |
Vascomax 250 | 1.6359 | K92890 | 1Cr18Ni9 | S162 |
CD | Cold drawn | P | Polished |
BD | Bright drawn | SRE | Slit rolled edge |
CG | Centreless ground | HF | Hot finished |
CF | Cold finished | HRAP | Hot rolled annealed and pickled |
P&T | Peeled and turned | RT | Rough turned/peeled |
ST | Smooth turned | PR | Peeled and reeled |
Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
---|---|---|---|
Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Maraging C350 Forged Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).
5.0 | 45.0 |
6.0 | 50.0 |
7.0 | 55.0 |
8.0 | 60.0 |
9.0 | 65.0 |
10.0 | 70.0 |
12.0 | 75.0 |
16.0 | 80.0 |
20.0 | 90.0 |
25.0 | 100.0 |
30.0 | 130.0 |
35.0 | 160.0 |
40.0 | 200.0 |
Size Chart in Millimeter | Weight Chart (Kilogram/meter) | Size Chart in Milimeter | Weight Chart (Kilogram/meter) | Size Chart in Milimeter | Weight Chart (Kilogram/meter) |
---|---|---|---|---|---|
7 x 7 | 0.337 | 19 x 19 | 2.479 | 38 x 38 | 9.916 |
8 x 8 | 0.44 | 20 x 20 | 2.747 | 40 x 40 | 10.988 |
9 x 9 | 0.556 | 21 x 21 | 3.029 | 42 x 42 | 12.114 |
10 x 10 | 0.687 | 22 x 22 | 3.324 | 45 x 45 | 13.906 |
11 x 11 | 0.831 | 24 x 24 | 3.956 | 48 x 48 | 15.822 |
12 x 12 | 0.989 | 25 x 25 | 4.292 | 50 x 50 | 17.168 |
13 x 13 | 1.161 | 26 x 26 | 4.642 | 53 x 53 | 19.29 |
14 x 14 | 1.346 | 28 x 28 | 5.384 | 55 x 55 | 20.774 |
15 x 15 | 1.545 | 30 x 30 | 6.181 | 60 x 60 | 24.723 |
16 x 16 | 1.758 | 32 x 32 | 7.032 | 65 x 65 | 29.015 |
17 x 17 | 1.985 | 34 x 34 | 7.939 | 70 x 70 | 33.65 |
18 x 18 | 2.225 | 36 x 36 | 8.9 | 75 x 75 | 38.629 |
Size Table in MM | Chucked true to Outside Dia in MM | Chucked true to Inside Dia in MM and Inch | |||||||
---|---|---|---|---|---|---|---|---|---|
Outside Dia, Millimeter |
Inside Dia, Millimeter |
Maximum Outside Dia, Millimeter |
Minimum. Inside Dia, Millimeter |
Maximum Outside Dia, Inches. |
Minimum. Inside Dia, Inches |
Maximum Outside Dia, Millimeter |
Minimum. Inside Dia, Millimeter |
Maximum Outside Dia, Inches |
Minimum. Inside Dia, Inches |
32 | 20 | 31 | 21.9 | 1.220 | 0.862 | 30 | 21 | 1.185 | 0.827 |
32 | 16 | 31 | 18 | 1.220 | 0.709 | 30 | 17 | 1.181 | 0.669 |
36 | 25 | 35 | 26.9 | 1.378 | 1.059 | 34.1 | 26 | 1.343 | 1.024 |
36 | 20 | 35 | 22 | 1.378 | 0.866 | 34 | 21 | 1.339 | 0.827 |
36 | 16 | 35 | 18.1 | 1.378 | 0.713 | 33.9 | 17 | 1.335 | 0.669 |
40 | 28 | 39 | 29.9 | 1.535 | 1.177 | 38.1 | 29 | 1.500 | 1.142 |
40 | 25 | 39 | 27 | 1.535 | 1.063 | 38 | 26 | 1.496 | 1.024 |
40 | 20 | 39 | 22.1 | 1.535 | 0.870 | 37.9 | 21 | 1.492 | 0.827 |
45 | 32 | 44 | 33.9 | 1.732 | 1.335 | 43.1 | 33 | 1.697 | 1.299 |
45 | 28 | 44 | 30 | 1.732 | 1.181 | 43 | 29 | 1.693 | 1.142 |
45 | 20 | 44 | 22.2 | 1.732 | 0.874 | 42.8 | 21 | 1.685 | 0.827 |
50 | 36 | 49 | 38 | 1.929 | 1.496 | 48 | 37 | 1.890 | 1.457 |
50 | 32 | 49 | 34.1 | 1.929 | 1.343 | 47.9 | 33 | 1.886 | 1.299 |
50 | 25 | 49 | 27.2 | 1.929 | 1.071 | 47.8 | 26 | 1.882 | 1.024 |
56 | 40 | 55 | 42 | 2.165 | 1.654 | 54 | 41 | 2.126 | 1.614 |
56 | 36 | 55 | 38.1 | 2.165 | 1.500 | 53.9 | 37 | 2.122 | 1.457 |
56 | 28 | 55 | 30.3 | 2.165 | 1.193 | 53.7 | 29 | 2.114 | 1.142 |
63 | 50 | 62 | 51.9 | 2.441 | 2.043 | 61.1 | 51 | 2.406 | 2.008 |
63 | 45 | 62 | 47 | 2.441 | 1.850 | 61 | 46 | 2.402 | 1.811 |
63 | 40 | 62 | 42.2 | 2.441 | 1.661 | 60.8 | 41 | 2.394 | 1.614 |
63 | 36 | 62 | 38.3 | 2.441 | 1.508 | 60.7 | 37 | 2.390 | 1.457 |
63 | 32 | 62 | 34.4 | 2.441 | 1.354 | 60.6 | 33 | 2.386 | 1.299 |
71 | 56 | 69.9 | 58 | 2.752 | 2.283 | 68.9 | 57 | 2.713 | 2.244 |
71 | 45 | 69.9 | 47.3 | 2.752 | 1.862 | 68.6 | 46 | 2.701 | 1.811 |
71 | 40 | 69.9 | 42.4 | 2.752 | 1.669 | 68.5 | 41 | 2.697 | 1.614 |
71 | 36 | 69.9 | 38.5 | 2.752 | 1.516 | 68.4 | 37 | 2.693 | 1.457 |
75 | 60 | 73.8 | 62 | 2.906 | 2.441 | 72.8 | 61 | 2.866 | 2.402 |
75 | 50 | 73.8 | 52.2 | 2.906 | 2.055 | 72.6 | 51 | 2.858 | 2.008 |
75 | 40 | 73.8 | 42.5 | 2.906 | 1.673 | 72.3 | 41 | 2.846 | 1.614 |
80 | 63 | 78.8 | 65 | 3.102 | 2.559 | 77.8 | 64 | 3.063 | 2.520 |
80 | 50 | 78.8 | 52.4 | 3.102 | 2.053 | 77.4 | 51 | 3.047 | 2.008 |
80 | 45 | 78.8 | 47.5 | 3.102 | 1.870 | 77.3 | 46 | 3.043 | 1.811 |
80 | 40 | 78.8 | 42.6 | 3.102 | 1.677 | 77.2 | 41 | 3.039 | 1.614 |
85 | 67 | 83.7 | 69.1 | 3.295 | 2.720 | 82.6 | 68 | 3.252 | 2.677 |
85 | 55 | 83.7 | 57.4 | 3.295 | 2.260 | 82.3 | 56.0 | 3.240 | 2.205 |
85 | 45 | 83.7 | 47.6 | 3.295 | 1.874 | 82.1 | 46.0 | 3.232 | 1.811 |
90 | 71 | 88.6 | 73.1 | 3.488 | 2.878 | 87.6 | 72.1 | 3.449 | 2.839 |
90 | 63 | 88.6 | 65.3 | 3.488 | 2.571 | 87.3 | 64.0 | 3.437 | 2.520 |
90 | 56 | 88.6 | 58.5 | 3.488 | 2.303 | 87.1 | 57.0 | 3.429 | 2.244 |
90 | 50 | 88.6 | 52.6 | 3.488 | 2.071 | 87.0 | 51.0 | 3.425 | 2.008 |
95 | 75 | 93.5 | 77.3 | 3.681 | 3.041 | 92.4 | 76.2 | 3.641 | 2.997 |
95 | 67 | 93.5 | 69.3 | 3.681 | 2.728 | 92.2 | 68.0 | 3.630 | 2.677 |
95 | 50 | 93.5 | 52.7 | 3.681 | 2.075 | 91.8 | 51.0 | 3.614 | 2.008 |
100 | 80 | 98.5 | 82.3 | 3.878 | 3.240 | 97.4 | 81.2 | 3.835 | 3.197 |
100 | 71 | 98.5 | 73.4 | 3.878 | 2.890 | 97.2 | 72.1 | 3.827 | 2.839 |
100 | 63 | 98.5 | 65.5 | 3.878 | 2.579 | 97.0 | 64.0 | 3.819 | 2.520 |
100 | 56 | 98.5 | 58.7 | 3.878 | 2.311 | 96.8 | 57.0 | 3.811 | 2.244 |
106 | 80 | 104.4 | 82.5 | 4.110 | 3.248 | 103.1 | 81.2 | 4.059 | 3.197 |
106 | 71 | 104.4 | 73.5 | 4.110 | 2.894 | 103.0 | 72.1 | 4.055 | 2.839 |
106 | 63 | 104.4 | 65.7 | 4.110 | 2.587 | 102.7 | 64.0 | 4.043 | 2.520 |
106 | 56 | 104.4 | 58.9 | 4.110 | 2.319 | 102.5 | 57.0 | 4.035 | 2.244 |
112 | 90 | 110.3 | 92.5 | 4.343 | 3.642 | 109.2 | 91.4 | 4.299 | 3.598 |
112 | 80 | 110.3 | 82.6 | 4.343 | 3.252 | 108.9 | 81.2 | 4.287 | 3.197 |
112 | 71 | 110.3 | 73.7 | 4.343 | 2.902 | 108.7 | 72.1 | 4.280 | 2.839 |
112 | 63 | 110.3 | 65.8 | 4.343 | 2.591 | 108.5 | 64.0 | 4.272 | 2.520 |
118 | 90 | 116.2 | 92.7 | 4.575 | 3.650 | 114.9 | 91.4 | 4.524 | 3.598 |
118 | 80 | 116.2 | 82.8 | 4.575 | 3.260 | 114.6 | 81.2 | 4.512 | 3.197 |
118 | 71 | 116.2 | 73.8 | 4.575 | 2.906 | 114.5 | 72.1 | 4.508 | 2.839 |
118 | 63 | 116.2 | 66.0 | 4.575 | 2.598 | 114.2 | 64.0 | 4.496 | 2.520 |
125 | 100 | 123.1 | 102.7 | 4.846 | 4.043 | 121.9 | 101.5 | 4.799 | 3.996 |
125 | 90 | 123.1 | 92.8 | 4.846 | 3.654 | 121.7 | 91.4 | 4.791 | 3.598 |
125 | 80 | 123.1 | 82.9 | 4.846 | 3.264 | 121.4 | 81.2 | 4.780 | 3.197 |
125 | 71 | 123.1 | 74.0 | 4.846 | 2.913 | 121.3 | 72.1 | 4.772 | 2.839 |
132 | 106 | 130.0 | 108.8 | 5.118 | 4.283 | 128.8 | 107.6 | 5.071 | 4.236 |
132 | 90 | 130.0 | 93.0 | 5.118 | 3.661 | 128.4 | 91.4 | 5.055 | 3.598 |
132 | 80 | 130.0 | 83.1 | 5.118 | 3.272 | 128.1 | 81.2 | 5.043 | 3.197 |
132 | 71 | 130.0 | 74.2 | 5.118 | 2.921 | 121.2 | 72.1 | 5.035 | 2.839 |
140 | 112 | 137.9 | 115 | 5.429 | 4.528 | 136.6 | 113.7 | 5.378 | 4.476 |
140 | 100 | 137.9 | 103.1 | 5.429 | 4.059 | 136.3 | 101.5 | 5.366 | 3.996 |
140 | 90 | 137.9 | 93.2 | 5.429 | 3.669 | 136.1 | 91.4 | 5.358 | 3.598 |
140 | 80 | 137.9 | 83.3 | 5.429 | 3.280 | 135.8 | 81.2 | 5.346 | 3.197 |
150 | 125 | 147.7 | 128.1 | 5.815 | 5.043 | 146.5 | 126.9 | 5.768 | 4.996 |
150 | 106 | 147.7 | 109.3 | 5.815 | 4.303 | 146 | 107.6 | 5.748 | 4.236 |
150 | 95 | 147.7 | 98.4 | 5.815 | 3.874 | 145.7 | 96.4 | 5.736 | 3.795 |
150 | 80 | 147.7 | 83.6 | 5.815 | 3.291 | 145.3 | 81.2 | 5.720 | 3.197 |
160 | 132 | 157.6 | 135.3 | 6.205 | 5.327 | 156.3 | 134 | 6.154 | 5.276 |
160 | 122 | 157.6 | 125.4 | 6.205 | 4.937 | 156 | 123.8 | 6.142 | 4.874 |
Size Chart in Millimeter | Weight Chart per Meter (Kilogram) | Size Chart in Millimeter | Weight Chart per Meter (Kilogram) |
---|---|---|---|
12 x 12 | 1.14 | 30×30 | 7.11 |
16 x 16 | 2.02 | 40 x 40 | 12.60 |
20 x 20 | 3.16 | 50 x 50 | 19.80 |
25 x 25 | 4.94 |
Sizes Chart in Millimeter | Sizes in Inch | Thickness Chart In MM | Thickness Chart In Inches |
---|---|---|---|
22 | 7/8 | 17 & 18 | 2/3 – 5/7 |
25 | 1 | 5 to 20 | 3/16 – 4/5 |
30 | 1-3/16 | 5 to 20 | 3/16 – 4/5 |
32 | 1-1/4 | 6 to 20 | 1/4 – 4/5 |
35 | 1-3/8 | 5 to 20 | 3/16 – 3/16 |
40 | 1-4/7 | 5 to 25 | 3/16 – 1 |
45 | 1-7/9 | 5 to 25 | 3/16 – 1 |
47 | 1-6/7 | 17,25 & 32 | 2/3, 1 & 1-1/4 |
50 | 2 | 5 to 32 | 3/16 – 1-1/4 |
55 | 2-1/16 | 5 to 25 | 3/16 – 1 |
57 | 2-1/4 | 32 | 1-1/4 |
60 | 2-3/8 | 5 to 35 | 3/16 – 1-3/8 |
63 | 2-1/2 | 10 to 30 | 3/8 – 1-3/16 |
65 | 2-5/9 | 10 to 30 & 35 | 3/8 – 1-3/16, & 1-3/8 |
70 | 2-3/4 | 6 to 25 & 40 | 1/4 – 1, & 1-4/7 |
75 | 3 | 8 to 25 | 5/16 – 1 |
80 | 3-1/8 | 8 to 20 | 5/16 – 4/5 |
90 | 3-1/2 | 8 to 20 | 5/16- 4/5 |
100 | 4 | 8, 10, 12 | 5/16, 3/8, 1/2 |
Diameter in Inches | Diameter (in/mm) | Weight Chart | Weight per 12′ Length |
3/32 inches | 0.0938 inches 2.38252 mm | 0.0247 lbs/ft 0.03675854 kg/m | 0.297 lbs 0.1346895 kg |
1/8 inches | 0.125 inches 3.175 mm | 0.0439 lbs/ft 0.06533198 kg/m | 0.527 lbs 0.2389945 kg |
3/16 inches | 0.1875 inches 4.7625 mm | 0.0987 lbs/ft 0.14688534 kg/m | 1.185 lbs 0.5373975 kg |
1/4 inches | 0.25 inches 6.35 mm | 0.1755 lbs/ft 0.2611791 kg/m | 2.106 lbs 0.955071 kg |
7/16 inches | 0.4375 inches 11.1125 mm | 0.5376 lbs/ft 0.80005632 kg/m | 6.451 lbs 2.9255285 kg |
15/32 inches | 0.4688 inches 11.90752 mm | 0.6173 lbs/ft 0.91866586 kg/m | 7.407 lbs 3.3590745 kg |
17/32 inches | 0.5313 inches 13.49502 mm | 0.7928 lbs/ft 1.17984496 kg/m | 9.514 lbs 4.314599 kg |
9/16 inches | 0.5625 inches 14.2875 mm | 0.8887 lbs/ft 1.32256334 kg/m | 10.664 lbs 4.836124 kg |
5/8 inches | 0.625 inches 15.875 mm | 1.0971 lbs/ft 1.63270422 kg/m | 13.165 lbs 5.9703275 kg |
3/4 inches | 0.75 inches 19.05 mm | 1.5798 lbs/ft 2.35105836 kg/m | 18.958 lbs 8.597453 kg |
13/16 inches | 0.8125 inches 20.6375 mm | 1.8541 lbs/ft 2.75927162 kg/m | 22.249 lbs 10.0899215 kg |
7/8 inches | 0.875 inches 22.225 mm | 2.1503 lbs/ft 3.20007646 kg/m | 25.804 lbs 11.702114 kg |
15/16 inches | 0.9375 inches 23.8125 mm | 2.4685 lbs/ft 3.6736217 kg/m | 29.622 lbs 13.433577 kg |
1 inches | 1 inches 25.4 mm | 2.8086 lbs/ft 4.17975852 kg/m | 33.703 lbs 15.2843105 kg |
1 1/16 inches | 1.0625 inches 26.9875 mm | 3.1706 lbs/ft 4.71848692 kg/m | 38.048 lbs 17.254768 kg |
1 1/8 inches | 1.125 inches 28.575 mm | 3.5546 lbs/ft 5.28995572 kg/m | 42.655 lbs 19.3440425 kg |
1 3/16 inches | 1.1875 inches 30.1625 mm | 3.9606 lbs/ft 5.89416492 kg/m | 47.527 lbs 21.5534945 kg |
1 1/4 inches | 1.25 inches 31.75 mm | 4.3884 lbs/ft 6.53081688 kg/m | 52.661 lbs 23.8817635 kg |
1 5/16 inches | 1.3125 inches 33.3375 mm | 4.8382 lbs/ft 7.20020924 kg/m | 58.059 lbs 26.3297565 kg |
1 3/8 inches | 1.375 inches 34.925 mm | 5.31 lbs/ft 7.902342 kg/m | 63.720 lbs 28.89702 kg |
1 1/2 inches | 1.5 inches 38.1 mm | 6.3193 lbs/ft 9.40438226 kg/m | 75.832 lbs 34.389812 kg |
1 5/8 inches | 1.625 inches 41.275 mm | 7.4164 lbs/ft 11.03708648 kg/m | 88.997 lbs 40.3601395 kg |
1 3/4 inches | 1.75 inches 44.45 mm | 8.6013 lbs/ft 12.80045466 kg/m | 103.216 lbs 46.808456 kg |
1 7/8 inches | 1.875 inches 47.625 mm | 9.8740 lbs/ft 14.6944868 kg/m | 118.487 lbs 53.7338545 kg |
2 inches | 2 inches 50.8 mm | 11.2344 lbs/ft 16.71903408 kg/m | 134.812 lbs 61.137242 kg |
HOW TO GET BEST PRICE OF MARAGING C350 / VASCOMAX C350 FORGED ROD ?
If looking for Maraging C350 Forged Bars and Forged Rod in exact length so first check Vascomax C350 price per KG in India and calculate with wight chart before negotiating with your supplier.
Weight% | Ni | Co | Mn | Si | C | Al | Mo | S | P | Ti | Fe | Cr | Cu |
C250 | 17.0 / 19.0 | 7.0 / 8.5 | 0.10 max | 0.10 max | 0.03 max | 0.05 / 0.15 | 4.6 / 5.2 | 0.010 max | 0.010 max | 0.3 / 0.5 | Bal | 0.50 | 0.50 |
Material | Condition | Ultimate Tensile (min) | Yield Strength (Min) | Elongation in 4D % (min) | Hardness | ||
Mpa | Ksi | Mpa | Ksi | ||||
Maraging C350 | After Maraging heat treatment 900°F | 1758 | 255 | 1724 | 250 | 6 | ≥ 48 HRC |
We offer a broad range of Maraging 350 Forged Round Bars through a worldwide network of stock-keeping branches. These Vascomax 350 Round Forged Bar is use in various industries like :
27 2nd Floor Rangwala Building, N D Road, 58, Islampura Street, Cawasji Patel Tank, Bhuleshwar, Mumbai, Maharashtra 400004
