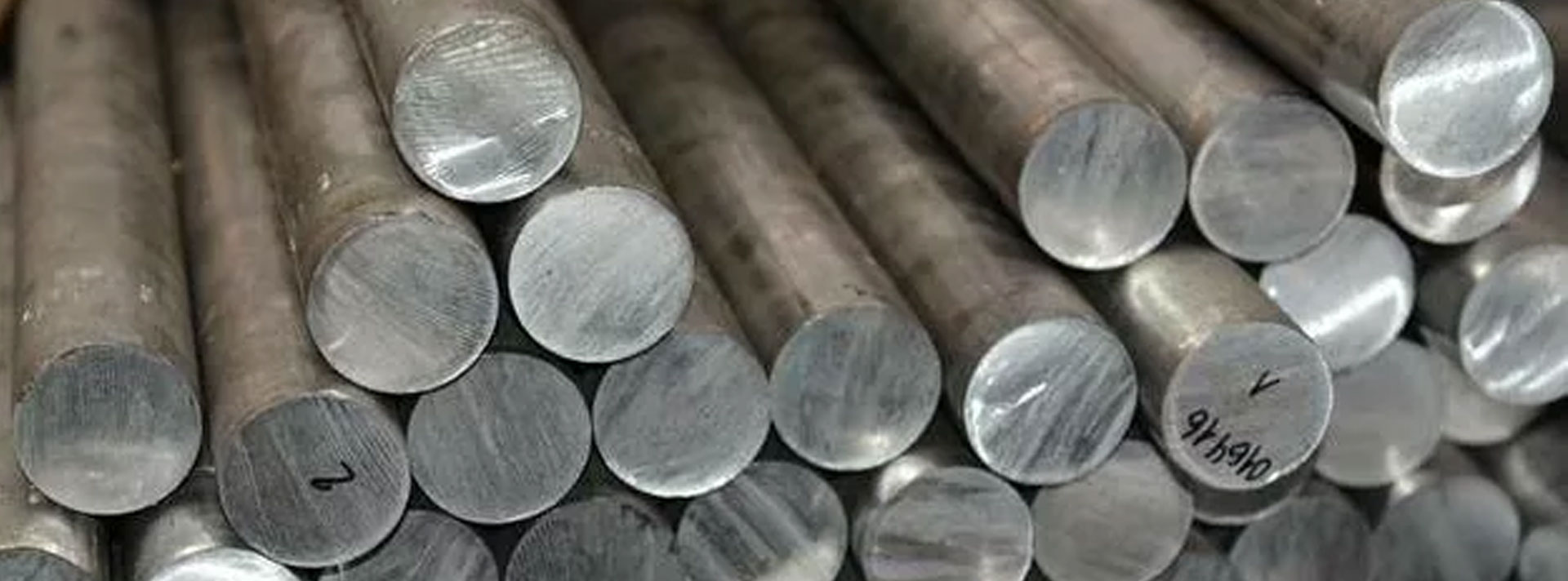

Inconel Alloy 718 Forged Bars are high-performance nickel-chromium-based superalloys renowned for their exceptional mechanical properties and corrosion resistance, particularly in high-temperature and aggressive environments. The Inconel 718 Forged Bars, also referred to as Inconel 718 Forged Rods, are designed to excel in demanding environments where a combination of high strength, corrosion resistance, and heat stability is crucial. Meeting the ASTM B637 Inconel 718 Forged Bars and ASME SB637 Inconel 718 Forged Bars standards, these bars adhere to industry benchmarks, guaranteeing a product of the highest quality and consistency.
Table of Content
The manufacturing process involves precision forging, which imparts exceptional mechanical properties to the bars. These qualities are essential in aerospace components, gas turbine engines, and various high-stress applications. The versatility of the Inconel 718 Forged Bar extends to a wide size range, typically featuring diameters from 10mm to 500mm and lengths exceeding 6 meters.
Noteworthy is the customisation capability, allowing for tailored solutions to meet specific requirements. Renowned for their exceptional performance, these Inconel Alloy 718 Forged Rods underscore their importance in industries where uncompromised strength and corrosion resistance are paramount. The 718 Inconel Alloy Forged Bars are often used with Inconel 600 Forged Bar and Inconel 601 Forged Bars, showcasing the extensive capabilities within the Inconel alloy family. Whether utilised as Inconel 718 Flat Bar or 718 Inconel Round Bar, these forged bars epitomise the pinnacle of material engineering, providing a robust and dependable solution for industries that demand unparalleled performance in challenging and extreme conditions.
Inconel 718 Forged Rods are meticulously crafted through a precise forging process involving the shaping of the material under high pressure and temperature. This method enhances the inherent strength and durability of the 718 Inconel Forged Rods, making them suitable for critical applications in aerospace, gas turbine engines, and other industries requiring superior performance under extreme conditions. The 718 Inconel Forged Bars exhibit remarkable tensile, fatigue, and creep-rupture strength, making them indispensable in environments with elevated temperatures and corrosive elements.
718 Inconel Alloy Forged Rods offer versatility for various applications with a size range typically encompassing diameters from 10mm to 500mm and lengths exceeding 6 meters. In addition to their impressive properties, the UNS N07718 Forged Bar can be customised to meet specific requirements, including dimensions, tolerances, and additional processing, such as heat treatment. We, Steelo Fabrica, manufacture Inconel 600 Forged Bar, Inconel 601 Forged Bars and other premium 718 Inconel Round Bars.
What are the key features of Inconel 718 Forged Bars?
At elevated temperatures, Inconel 718 Forged Bars exhibit exceptional tensile, fatigue, and creep-rupture strength. They also offer excellent corrosion resistance, making them suitable for demanding applications in aerospace, gas turbine engines, and other high-stress environments.
What sizes are available for 718 Inconel Forged Bars?
The size range for 718 Inconel Forged Bars can vary, but typical dimensions include diameters ranging from 10mm to 500mm and lengths up to 6 meters or more, depending on the manufacturer.
Can 718 Inconel Forged Bars be used in cryogenic applications?
Yes, 718 Inconel Forged Bars are well-suited for cryogenic applications due to their high strength and toughness at low temperatures.
ASTM B-637
ASME SB-637
UNS N07718
WNR. 2.4668
Specification : ASTM B637 / ASME SB637
Standard : EN, DIN, JIS, ASTM, BS, ASME, AISI
Size : 1000 MM TO 7000 MM
Outer Diameter : 100MM TO 400 mm Max OD
Weight : 1000 to 6000 Kg
Finish : Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish
Tolerance : 0/+2-3mm
STANDARD | WERKSTOFF NR. | UNS |
Inconel 718 | 2.4668 | N07718 |
Size & Dimensions of inconel 718 round bar | |||||||
---|---|---|---|---|---|---|---|
Metric | US Bar | ASTM/ Canadian | Japanese | ||||
Bar Size | Diam. (mm) | Bar Size | Diam. (Inch) | Bar Size | Diam. (mm2) | Bar Size | Diam. (mm) |
5 | 5 | #2 | 0.250 | 10M | 100 | 6 | 6 |
5.5 | 5.5 | #3 | 0.375 | 15M | 200 | 10 | 10 |
6 | 6 | #4 | 0.500 | 20M | 300 | 13 | 13 |
7 | 7 | #5 | 0.600 | 25M | 500 | 16 | 16 |
8 | 8 | #6 | 0.750 | 30M | 700 | 19 | 19 |
9 | 9 | #7 | 0.875 | 35M | 1000 | 22 | 22 |
10 | 10 | #8 | 1.000 | 45M | 1500 | 25 | 25 |
11 | 11 | #9 | 1.125 | 55M | 2500 | 29 | 29 |
12 | 12 | #10 | 1.250 | 32 | 32 | ||
14 | 14 | #11 | 1.375 | 35 | 35 | ||
16 | 16 | #12 | 1.500 | 38 | 38 | ||
18 | 18 | #13 | 1.600 | 41 | 41 | ||
20 | 20 | #14 | 1.750 | 44 | 44 | ||
22 | 22 | #15 | 1.875 | 48 | 48 | ||
25 | 25 | #16 | 2.000 | 51 | 51 | ||
28 | 28 | #18 | 2.250 | 57 | 57 | ||
32 | 32 | ||||||
36 | 36 | ||||||
40 | 40 | ||||||
44 | 44 | ||||||
50 | 50 |
Round Bar | ||||||||
---|---|---|---|---|---|---|---|---|
Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr |
3mm | 0.017 | 0.055 | 20mm | 0.753 | 2.470 | 3″ | 10.900 | 35.762 |
1/8″ | 0.019 | 0.062 | 22mm | 0.908 | 2.979 | 3-1/4″ | 12.800 | 41.996 |
5/32″ | 0.029 | 0.095 | 7/8″ | 0.926 | 3.038 | 3-1/2″ | 14.850 | 48.772 |
4mm | 0.030 | 0.098 | 24mm | 1.080 | 3.543 | 3-3/4″ | 17.001 | 55.780 |
3/16″ | 0.043 | 0.141 | 25mm | 1.180 | 3.871 | 4″ | 19.306 | 63.340 |
5mm | 0.047 | 0.154 | 1″ | 1.210 | 3.970 | 4-1/4″ | 21.908 | 72.249 |
7/32″ | 0.058 | 0.190 | 26mm | 1.271 | 4.170 | 4-1/2″ | 24.4487 | 80.340 |
6mm | 0.068 | 0.223 | 27mm | 1.368 | 4.490 | 4-3/4″ | 27.366 | 90.249 |
1/4″ | 0.076 | 0.249 | 1-1/8″ | 1.534 | 5.033 | 5″ | 30.461 | 99.940 |
7mm | 0.091 | 0.298 | 30mm | 1.691 | 5.548 | 5-1/2″ | 36.690 | 121.000 |
5/16″ | 0.118 | 0.387 | 1-1/4″ | 1.924 | 6.349 | 6″ | 43.860 | 143.900 |
8mm | 0.120 | 0.398 | 32mm | 1.894 | 6.314 | 6-1/2″ | 51.093 | 167.630 |
9mm | 0.152 | 0.498 | 1-3/8″ | 2.303 | 7.550 | 7″ | 59.432 | 196.000 |
3/8″ | 0.170 | 0.557 | 35mm | 2.390 | 7.553 | 7-1/2″ | 68.226 | 225.000 |
10mm | 0.189 | 0.620 | 36mm | 2.438 | 7.999 | 8″ | 77.586 | 254.55 |
11mm | 0.228 | 0.748 | 38mm | 2.792 | 8.903 | 10″ | 121.048 | 397.140 |
7/16″ | 0.232 | 0.761 | 1-1/2″ | 2.715 | 8.951 | |||
12mm | 0.271 | 0.889 | 40mm | 3.009 | 9.872 | |||
1/2″ | 0.303 | 0.994 | 1-5/8″ | 3.200 | 10.449 | |||
13mm | 0.318 | 1.043 | 1-3/4″ | 3.712 | 12.179 | |||
14mm | 0.368 | 1.207 | 45mm | 3.807 | 12.555 | |||
9/16″ | 0.383 | 1.256 | 1-7/8″ | 4.260 | 13.977 | |||
15mm | 0.424 | 1.391 | 48mm | 4.330 | 14.205 | |||
5/8″ | 0.473 | 1.551 | 50mm | 4.698 | 15.414 | |||
16mm | 0.481 | 1.578 | 2″ | 4.848 | 15.906 | |||
17mm | 0.543 | 1.791 | 2-1/8″ | 5.475 | 17.963 | |||
11/16″ | 0.573 | 1.880 | 2-1/4″ | 6.135 | 20.128 | |||
18mm | 0.610 | 2.001 | 60mm | 6.768 | 22.205 | |||
3/4″ | 0.682 | 2.237 | 2-3/8″ | 6.838 | 22.435 | |||
2-1/2″ | 7.576 | 24.856 | ||||||
2-5/8″ | 8.354 | 27.409 | ||||||
2-3/4″ | 9.169 | 30.083 |
HOW TO GET BEST PRICE OF Inconel 718 FORGED BAR/ROD ?
If looking for Alloy 718 Forged Bars and Rod in exact length so first check Inconel 718 price per KG in India and calculate with wight chart before negotiating with your supplier.
Grade | Ni | Cr | Cu | C | Mn | S | Mo | Si | Co |
Inconel 718 | 50 – 55 | 17 – 21 | 0.3 max | 0.08 max | 0.35 max | 0.015 max | 2.8 – 3.3 | 0.35 max | 1.0 max |
Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
8.2 g/cm3 | 1350 °C (2460 °F) | Psi – 135,000 , MPa – 930 | Psi – 70,000 , MPa – 482 | 45 % |
We offer a broad range of ASTM B637 Inconel 718 Forged Bars through a worldwide network of stock-keeping branches. These 718 Inconel Forged Rods is use in various industries like :
