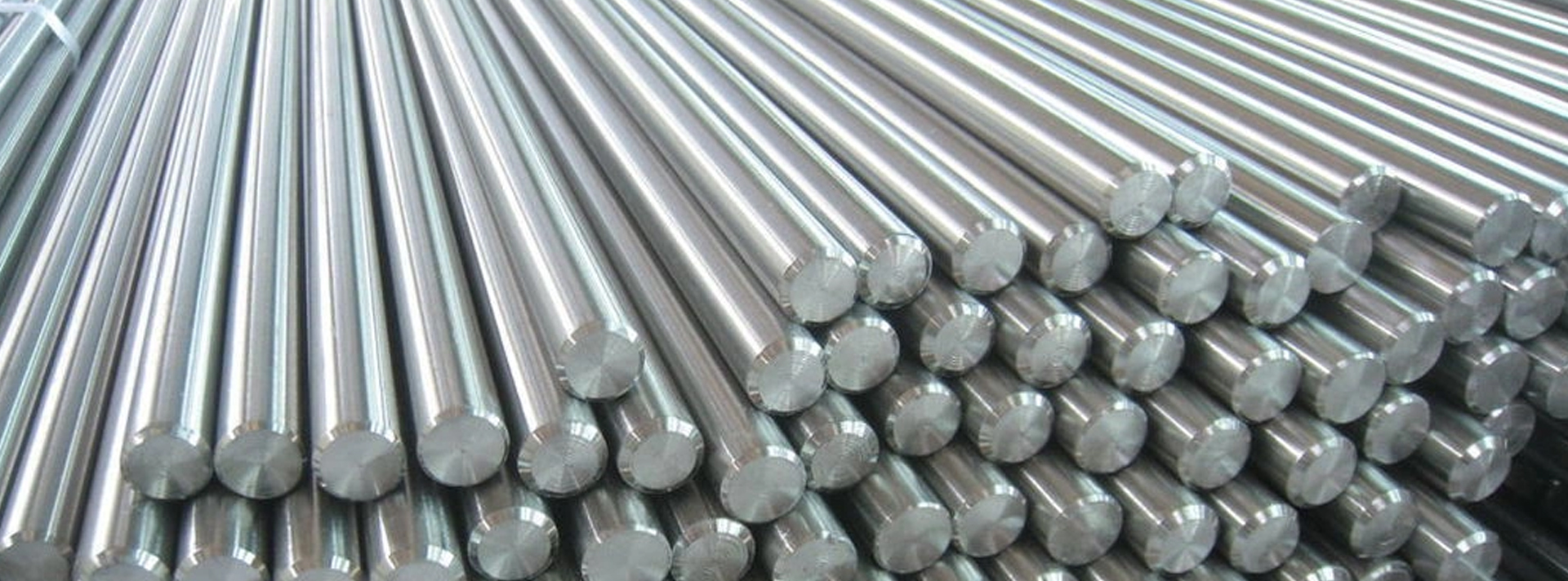

Steelo Fabrica is a prominent maker and seller of ASTM A 453 GR.660 Class B Forged Bar.
ASTM A453 Grade 660 is a material for studs, screws, nuts, and different flanges. It is fabricated for use in high-temperature darting applications. ASTM A453 Grade 660 material is synthetically identical to ASTM B638 grade 660 hardened steel alloy.
Table of Content
About the Material: ASTM A453 GR 660 Class B Forged bar covers specification for huge temperature Bolting with expansion co-efficient comparable to Austenitic Stainless Steel. One of the commonly used is ASTM A 453 GR.660 Class B Forged Bar. These Forged Bars are Iron Based on Super Alloy manufactured from iron-nickel-chromium alloy with additions of molybdenum and titanium. These forged bars contains a relatively high content of nickel in the alloy for a stainless steel grade
ASTM A453 GR 660 Class B Rod maintains good strength and oxidation resistance at elevated temperatures. These grades mentioned in the ASTM A453 Grade 660 are bolting materials for high-temperature applications such as rods and other materials. The ASTM A453 Grade 660 Class B rods hold equivalently the specified contents of various elements.
Characteristics: ASTM A 453 GR.660 Class B Forged Bar offers extraordinary strength contrasted with different materials. Various organization of a raw material makes our item appropriate in a disastrous climate and high strength. ASTM A453 Grade 660 Class B is a stainless steel grade known for its excellent rigidity even at high temperatures. The ASTM A453 Gr 660 additions its excellent elasticity from a deep level of consistency. Different properties of the ASTM A453 Gr 660 Class B incorporate the compound’s capacity to oppose erosion, toughness, hardwearing, and so on.
Application: Due to the reasonable ASTM A453 Grade 660 Class B Material Properties of the alloy, these bars are used in pieces of equipment such as Jet engines, Gas turbines, and Turbocharger components. These Rods are used in all applications, including Oil production, Infrastructure, and super-charger components.
ASTM A-453
ASME SA-453
UNS S66286
WNR. 1.4944
Specification : ASTM A453 / ASME SA453
Dimensions: DIN, EN, ASTM, JIS, ASME, BS, AISI
Round bar size : Diameter: 3-~800mm
Flat bar size : Thickness: 2 -100mm, Width: 10 to 500mm
Rectangular Bars Section : 3.0 to 12.0mm thickness
Billet Size: 1/2 to 495mm Diameter
Rectangles Size : 33 x 30mm to 295 x 1066mm
Hollow Bar : 32mm OD x 16mm ID to 250mm OD x 200mm ID)
Finish :Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black
Surface : Hot Rolled Pickled, Bright, Sand Blasting Finished, Cold Drawn, Hairline,Polished
Condition : Hardened & tempered, annealed
Technique : Stainless Steel Cold Drawn, Hot Rolled, Forged Round Bar,Cold Rolled, Rod
Processing : Bar cutting to 650mm
Form : Rod, Round, Channel Bar, T-Bar, Flat Bar, Precision Ground Bar, Blocks, Square, Rings, Round Rod, Triangle, Hollow, Rectangle, Threaded, Hex (A/F), Profiles, Half Round Bar, Ingot, Billet, I/H Bar, Forging etc.
| AISI | UNS | BS | Wr No. | En Name | DIN EN | JIS | AMS | ASTM | other names | Additional Requirements |
|---|---|---|---|---|---|---|---|---|---|---|
| 660 | S66286 | HR 51 | 1.4944 | X6NiCrTiMoV26-15 | 10269 | SUS 660 | 5726 | ASTM A453 GRADE 660A | incoloy a286 | NACE MR-0175 |
| CD | Cold drawn | P | Polished |
| BD | Bright drawn | SRE | Slit rolled edge |
| CG | Centreless ground | HF | Hot finished |
| CF | Cold finished | HRAP | Hot rolled annealed and pickled |
| P&T | Peeled and turned | RT | Rough turned/peeled |
| ST | Smooth turned | PR | Peeled and reeled |
HOW TO GET BEST PRICE OF ASTM A453 Gr.660 Class B Forged BAR ?
If looking for ASTM A453 Alloy Grade 660 Class B Forged Bars and Rod in exact length so first check ASTM A453 Grade 660 Class B Bars price per KG in India and calculate with wight chart before negotiating with your supplier.
| Element | C | Mn | P | S | Si | Ni | Cr | Mo | Ti | Al | V | B |
| Grade 660 | 0.08 max | 2.00 max | 0.040 max | 0.030 max | 1.00 max | 24.0-27.0 | 13.5-16.0 | 1.00-1.50 | 1.9-2.35 | 0.35 max | 0.10-0.50 | 0.001-0.010 |
| ASTM A453 | Class | Tensile, Mpa | Yield, Mpa | Elong. %, min | RA %, min |
| Grade 660 | A, B , C & D | 895 min | 585 min | 15 | 18 |
Steelo Fabrica is an ISO 9001:2015 Certified Manufacturer, Wholesaler, Supplier, Importer, Exporter, and Trader of a wide range of Bars and wires in a variety of materials like Stainless Steel, Duplex Steel, Inconel, Nickel, Hastelloy Titanium and Tantalum, Carbon Steel and more.
