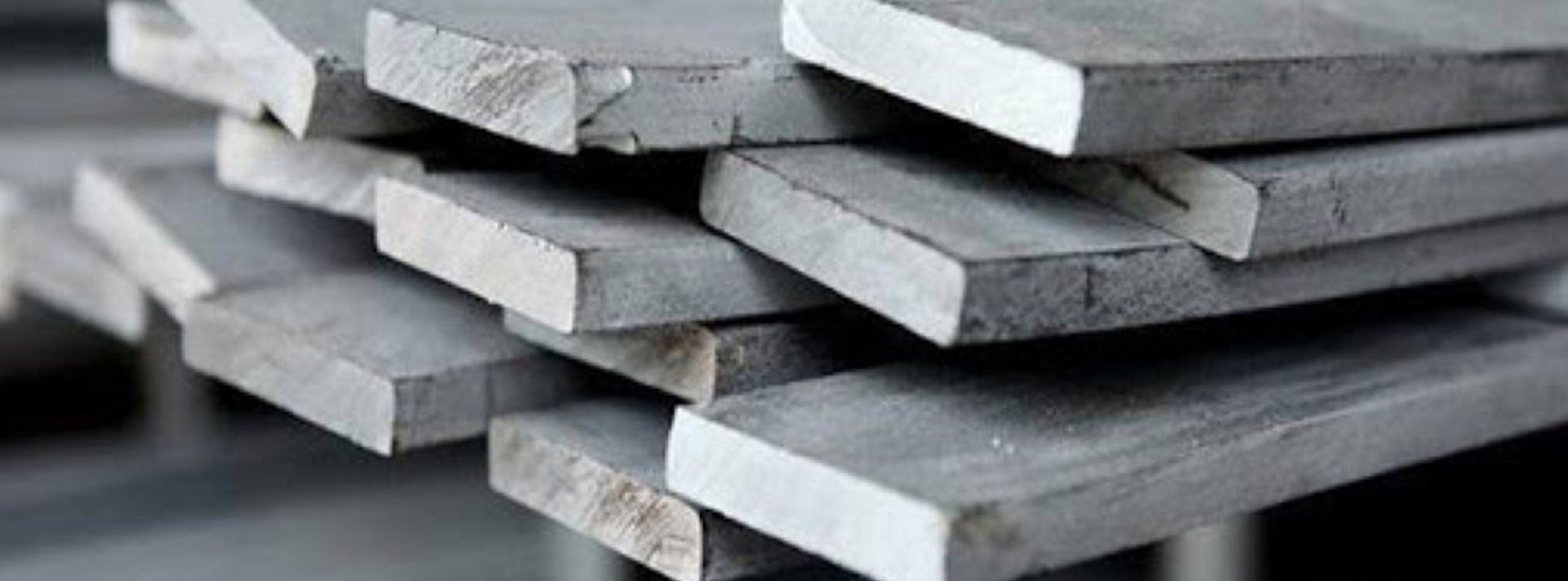

Steelo Fabrica Company is a great manufacturer and exporter of Inconel 800 Flat Bars. Our company export only high-quality products. We use premium quality raw materials for the production of these Bars. Our company buys this basic material from the trusted vendors. We will test the materials before using them in the production process. We export various types, sizes, lengths, and dimensions bars to the international market at a reasonable price.
Table of Content
Why is Inconel grade 800 used?
Inconel 800 alloy is made up of nickel, iron and chromium. This alloy is stable and maintains its strength in high temperatures. This alloy shows high corrosion resistance in many corrosive environments.
Properties of Inconel 800 Flat Bars:
Inconel 800 Flat bars have high strength under tension. Our Inconel 800 bars show resistance to oxidation. This alloy offers resistance to carburization. If Inconel 800 alloy maintains a constant structure at high temperatures, and then it is extremely functional. Nickel content helps us to make these bars are highly resistant to chloride-ion-induced embrittlement. Due to the precipitation of the sigma phase, it also has the ability to resist stress corrosion cracking. Inconel 800 Flat bars is welded using a common process. Our provided Inconel 800 Bars also have a high resistance to acid corrosion. Inconel 800 Flat bars are used in applications where good rupture and creep properties are required. Our products are resistant to a variety of acidic environments and have good resistance to many sulfuric-containing atmospheres. Inconel 800 bars shows tensile strength at annealed conditions.
Applications of Inconel 800 Flat Bars:
These Flat bars are used in high-temperature applications. Our company products are used in various applications like Ethylene furnace quench boilers, Hydrocarbon cracking, valves, accessories, and other components that are susceptible to corrosion. It is also used in industrial furnaces, heat treatment plants, and super re-heaters in power plants, Pressure vessels, heat exchangers, etc.
ASTM B-408
ASME SB-408
UNS N08800
WNR. 1.4876
Specification : ASTM B408 / ASME SB408
Standard : EN, DIN, JIS, ASTM, BS, ASME, AISI
Size Range : Width: 38 mm to 150 mm, Thickness: 4 mm to 30 mm
Length : 2 metres – 6 metres ( 8 feet to 20 feet)
Length Tolerance : Available in special cut to length bars in tolerance -0/+10 mm (-0/+0.5 inch)
Finish : Polish & Bright, Flat
| STANDARD | WERKSTOFF NR. | UNS | GOST | AFNOR | JIS | BS | EN | OR |
| Incoloy 800 | 1.4876 | N08800 | ЭИ670 | Z8NC32-21 | NCF 800 | NA 15 | X10NiCrAlTi32-20 | XH32T |
| CD | Cold drawn | P | Polished |
| BD | Bright drawn | SRE | Slit rolled edge |
| CG | Centreless ground | HF | Hot finished |
| CF | Cold finished | HRAP | Hot rolled annealed and pickled |
| P&T | Peeled and turned | RT | Rough turned/peeled |
| ST | Smooth turned | PR | Peeled and reeled |
Incoloy 800 Flat bar – metric sizes and weights | |||
|---|---|---|---|
Flat Size | KG’s per Metre | Standard Length (metres) | Colour Code |
10 x 3 | 0.24 | 6.0 | Blue |
13 x 3 | 0.31 | 6.0 | Blue |
13 x 5 | 0.46 | 6.0 | Orange |
16 x 3 | 0.38 | 6.0 | Blue |
16 x 5 | 0.64 | 6.0 | Orange |
16 x 8 | 1.03 | 6.0 | Red |
20 x 3 | 0.48 | 6.0 | Blue |
20 x 5 | 0.81 | 6.0 | Orange |
20 x 6 | 0.97 | 6.0 | White |
20 x 10 | 1.61 | 6.0 | Yellow |
25 x 3 | 0.60 | 6.0 | Blue |
25 x 5 | 1.01 | 6.0 | Orange |
25 x 6 | 1.21 | 6.0 | White |
25 x 8 | 1.61 | 6.0 | Red |
25 x 10 | 2.01 | 6.0 | Yellow |
25 x 12 | 2.41 | 6.0 | Pink |
32 x 3 | 0.77 | 6.0 | Blue |
32 x 5 | 1.29 | 6.0 | Orange |
32 x 6 | 1.55 | 6.0 | White |
32 x 8 | 2.06 | 6.0 | Red |
32 x 10 | 2.58 | 6.0 | Yellow |
32 x 12 | 3.09 | 6.0 | Pink |
40 x 3 | 0.97 | 6.0 | Blue |
40 x 5 | 1.61 | 6.0 | Orange |
40 x 6 | 1.93 | 6.0 | White |
40 x 8 | 2.58 | 6.0 | Red |
40 x 10 | 3.22 | 6.0 | Yellow |
40 x 12 | 3.86 | 6.0 | Pink |
40 x 16 | 5.15 | 6.0 | Grey |
40 x 20 | 6.14 | 6.0 | Green |
50 x 3 | 1.21 | 6.0 | Blue |
50 x 5 | 2.01 | 6.0 | Orange |
50 x 6 | 2.41 | 6.0 | White |
50 x 8 | 3.22 | 6.0 | Red |
50 x 10 | 4.02 | 6.0 | Yellow |
50 x 12 | 4.83 | 6.0 | Pink |
50 x 16 | 6.44 | 6.0 | Grey |
50 x 20 | 8.05 | 6.0 | Green |
50 x 25 | 10.1 | 6.0 | Purple |
65 x 3 | 1.57 | 6.0 | Blue |
65 x 5 | 2.62 | 6.0 | Orange |
65 x 6 | 3.14 | 6.0 | White |
65 x 8 | 4.18 | 6.0 | Red |
65 x 10 | 5.23 | 6.0 | Yellow |
65 x 12 | 6.28 | 6.0 | Pink |
65 x 16 | 8.37 | 6.0 | Grey |
65 x 20 | 10.5 | 6.0 | Green |
65 x 25 | 13.1 | 6.0 | Purple |
75 x 5 | 3.02 | 6.0 | Orange |
75 x 6 | 3.62 | 6.0 | White |
75 x 8 | 4.83 | 6.0 | Red |
75 x 10 | 6.04 | 6.0 | Yellow |
75 x 12 | 7.24 | 6.0 | Pink |
75 x 16 | 9.66 | 6.0 | Grey |
75 x 20 | 12.1 | 6.0 | Green |
75 x 25 | 15.1 | 6.0 | Purple |
75 x 40 | 24.1 | 6.0 | Yellow |
90 x 5 | 3.62 | 6.0 | Orange |
90 x 6 | 4.35 | 6.0 | White |
90 x 8 | 5.79 | 6.0 | Red |
90 x 10 | 7.24 | 6.0 | Yellow |
90 x 12 | 8.69 | 6.0 | Pink |
100 x 5 | 4.02 | 6.0 | Orange |
100 x 6 | 4.83 | 6.0 | White |
100 x 8 | 6.44 | 6.0 | Red |
100 x 10 | 8.05 | 6.0 | Yellow |
100 x 12 | 9.66 | 6.0 | Pink |
100 x 16 | 12.9 | 6.0 | Grey |
100 x 20 | 16.1 | 6.0 | Green |
100 x 25 | 20.1 | 6.0 | Purple |
100 x 50 | 40.2 | 6.0 | Green |
110 x 6 | 5.31 | 6.0 | White |
110 x 8 | 7.08 | 6.0 | Red |
110 x 10 | 8.85 | 6.0 | Yellow |
110 x 12 | 10.6 | 6.0 | Pink |
130 x 5 | 5.23 | 6.0 | Orange |
130 x 6 | 6.28 | 6.0 | White |
130 x 8 | 8.37 | 6.0 | Red |
130 x 10 | 10.5 | 6.0 | Yellow |
130 x 12 | 12.6 | 6.0 | Pink |
130 x 16 | 16.7 | 6.0 | Grey |
130 x 20 | 20.9 | 6.0 | Green |
130 x 25 | 26.2 | 6.0 | Purple |
150 x 5 | 6.04 | 6.0 | Orange |
150 x 6 | 7.24 | 6.0 | White |
150 x 8 | 9.66 | 6.0 | Red |
150 x 10 | 12.1 | 6.0 | Yellow |
150 x 12 | 14.5 | 6.0 | Pink |
150 x 16 | 19.3 | 6.0 | Grey |
150 x 20 | 24.1 | 6.0 | Green |
150 x 25 | 30.1 | 6.0 | Purple |
150 x 50 | 60.4 | 6.0 | Green |
180 x 5 | 7.24 | 6.0 | Orange |
180 x 6 | 8.69 | 6.0 | White |
180 x 10 | 14.5 | 6.0 | Yellow |
180 x 12 | 17.4 | 6.0 | Pink |
180 x 16 | 23.2 | 6.0 | Grey |
180 x 20 | 29.0 | 6.0 | Green |
180 x 25 | 36.2 | 6.0 | Purple |
200 x 6 | 9.66 | 6.0 | White |
200 x 8 | 12.9 | 6.0 | Red |
200 x 10 | 16.1 | 6.0 | Yellow |
200 x 12 | 19.3 | 6.0 | Pink |
200 x 16 | 25.7 | 6.0 | Grey |
200 x 20 | 32.2 | 6.0 | Green |
200 x 25 | 40.3 | 6.0 | Purple |
250 x 6 | 12.1 | 6.0 | White |
250 x 8 | 16.1 | 6.0 | Red |
250 x 10 | 20.1 | 6.0 | Yellow |
250 x 12 | 24.1 | 6.0 | Pink |
250 x 16 | 32.2 | 6.0 | Grey |
250 x 20 | 40.2 | 6.0 | Green |
250 x 25 | 50.3 | 6.0 | Purple |
300 x 6 | 14.5 | 6.0 | White |
300 x 8 | 19.3 | 6.0 | Red |
300 x 10 | 24.1 | 6.0 | Yellow |
300 x 12 | 29.0 | 6.0 | Pink |
300 x 16 | 38.6 | 6.0 | Grey |
300 x 20 | 48.3 | 6.0 | Green |
300 x 25 | 60.4 | 6.0 | Purple |
| Size (mm) | Weight (kg/ft) | Weight (Kg/mtr) |
| 12 x 3 | 0.086 | 0.282 |
| 12 x 5 | 0.143 | 0.470 |
| 18 x 4 | 0.180 | 0.585 |
| 20 x 3 | 0.143 | 0.470 |
| 20 x 5 | 0.241 | 0.790 |
| 20 x 6 | 0.287 | 0.942 |
| 25 x 3 | 0.183 | 0.600 |
| 25 x 5 | 0.305 | 1.000 |
| 25 x 6 | 0.365 | 1.197 |
| 25 x 8 | 0.470 | 1.550 |
| 25 x 10 | 0.609 | 1.998 |
| 25 x 12 | 0.731 | 2.398 |
| 32 x 3 | 0.243 | 0.798 |
| 32 x 5 | 0.395 | 1.296 |
| 32 x 6 | 0.457 | 0.457 |
| 32 x 8 | 0.671 | 2.202 |
| 32 x 10 | 0.854 | 2.802 |
| 32 x 12 | 1.005 | 3.297 |
| 32 x 16 | 1.342 | 4.403 |
| 40 x 3 | 0.274 | 0.899 |
| 40 x 5 | 0.487 | 1.598 |
| 40 x 6 | 0.580 | 1.903 |
| 40 x 8 | 0.762 | 2.500 |
| 40 x 10 | 0.945 | 3.100 |
| 40 x 12 | 1.158 | 3.799 |
| 40 x 16 | 1.523 | 4.997 |
| 40 x 20 | 1.920 | 6.300 |
| 40 x 25 | 2.407 | 7.897 |
| 40 x 32 | 2.897 | 9.505 |
| 50 x 3 | 0.365 | 1.197 |
| 50 x 5 | 0.609 | 1.998 |
| 50 x 6 | 0.731 | 2.398 |
| 50 x 8 | 0.944 | 3.097 |
| 50 x 10 | 1.188 | 3.898 |
| 50 x 12 | 1.432 | 4.698 |
| 50 x 16 | 1.920 | 6.300 |
| 50 x 20 | 2.377 | 7.799 |
| 50 x 25 | 2.986 | 9.797 |
| 50 x 40 | 4.754 | 15.598 |
| 63 x 6 | 0.915 | 3.002 |
| 63 x 8 | 1.219 | 4.000 |
| 63 x 10 | 1.500 | 4.922 |
| 63 x 12 | 1.798 | 5.899 |
| 63 x 16 | 2.407 | 7.897 |
| 63 x 20 | 3.017 | 9.899 |
| 63 x 25 | 3.779 | 12.399 |
| 63 x 32 | 4.815 | 15.798 |
| 63 x 40 | 6.034 | 19.798 |
| 75 x 6 | 1.066 | 3.498 |
| 75 x 8 | 1.432 | 4.698 |
| 75 x 10 | 1.798 | 5.899 |
| 75 x 12 | 2.163 | 7.097 |
| 75 x 16 | 2.864 | 9.397 |
| 75 x 20 | 3.596 | 11.798 |
| 75 x 25 | 4.480 | 14.699 |
| 75 x 40 | 7.200 | 23.600 |
| 100 x 6 | 1.432 | 4.698 |
| 100 x 8 | 1.920 | 6.300 |
| 100 x 10 | 2.377 | 7.798 |
| 100 x 12 | 2.864 | 9.397 |
| 100 x 16 | 3.840 | 12.599 |
| 100 x 20 | 4.785 | 15.700 |
| 100 x 25 | 5.973 | 19.599 |
| 100 x 32 | 7.650 | 25.099 |
| 100 x 40 | 9.500 | 31.170 |
| 125 x 6 | 1.800 | 5.900 |
| 125 x 8 | 2.400 | 7.900 |
| 125 x 10 | 2.986 | 9.797 |
| 125 x 12 | 3.596 | 11.798 |
| 125 x 16 | 4.800 | 15.750 |
| 125 x 20 | 5.973 | 19.597 |
| 125 x 25 | 7.500 | 24.600 |
| 125 x 32 | 9.570 | 31.399 |
| 150 x 6 | 2.200 | 7.218 |
| 150 x 8 | 2.850 | 9.400 |
| 150 x 10 | 3.596 | 11.798 |
| 150 x 12 | 4.297 | 14.098 |
| 150 x 16 | 5.729 | 18.797 |
| 150 x 20 | 7.192 | 23.597 |
| 150 x 25 | 8.991 | 29.499 |
| 150 x 32 | 11.490 | 37.699 |
| 150 x 40 | 14.355 | 47.099 |
HOW TO GET BEST PRICE OF Alloy 800 FLAT BAR ?
If looking for Inconel 800 Flat Bar in exact length so first check Alloy 800 price per KG in India and calculate with wight chart before negotiating with your supplier.
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| 800 | 0.10 max | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Alloy 800 | 7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 % |
We offer a broad range of ASTM B408 Inconel 800 Flat Bars through a worldwide network of stock-keeping branches. These 800 Inconel Patta / Patti is use in various industries like :
Kolkata, Nashik, Secunderabad, Jaipur, Milan, Al Jubail, Cairo, Caracas, Algiers, Faridabad, Aberdeen, Rio de Janeiro, Jakarta, Thiruvananthapuram, Dallas, Kanpur, Mumbai, Ludhiana, Manama, Ahmedabad, Toronto, Jeddah, Chennai, Haryana, Ulsan, Chandigarh, Nagpur, Muscat, Kuwait City, Navi Mumbai, Indore, Bangkok, Seoul, Ranchi, Bhopal, Vadodara, Coimbatore, Gurgaon, Visakhapatnam, Ho Chi Minh City, Doha, Istanbul, Bogota, Ernakulam, Chiyoda, Rajkot, Karachi, Surat, Port-of-Spain, Baroda, Houston, Hyderabad, Thane, Abu Dhabi, Noida, Melbourne, Dammam, Pimpri-Chinchwad, Edmonton, Courbevoie, Pune, Ahvaz, Madrid, Granada, Atyrau, Sharjah, Ankara, Bengaluru, Tehran, Calgary, Lagos, Howrah, Riyadh, Jamshedpur, Brisbane, New Delhi, New York, Busan.
Steelo Fabrica is an ISO 9001:2015 Certified Manufacturer, Wholesaler, Supplier, Importer, Exporter, and Trader of a wide range of Bars and wires in a variety of materials like Stainless Steel, Duplex Steel, Inconel, Nickel, Hastelloy Titanium and Tantalum, Carbon Steel and more.
