Steelo Fabrica presents an excellent grade Super Duplex F53 Flat Bar to our esteemed global clients. We are integrated with large supplying stock with a variety of Bars. These are offered in many applications for superb quality and performance. Our consumers are well demanding these strong and heavy-duty Bars for reasonable costs. The Super Duplex grade is most preferred for inexpensive rates without compromising with eminence.
Table of Content
What is Super Duplex F53 Flat Bar?

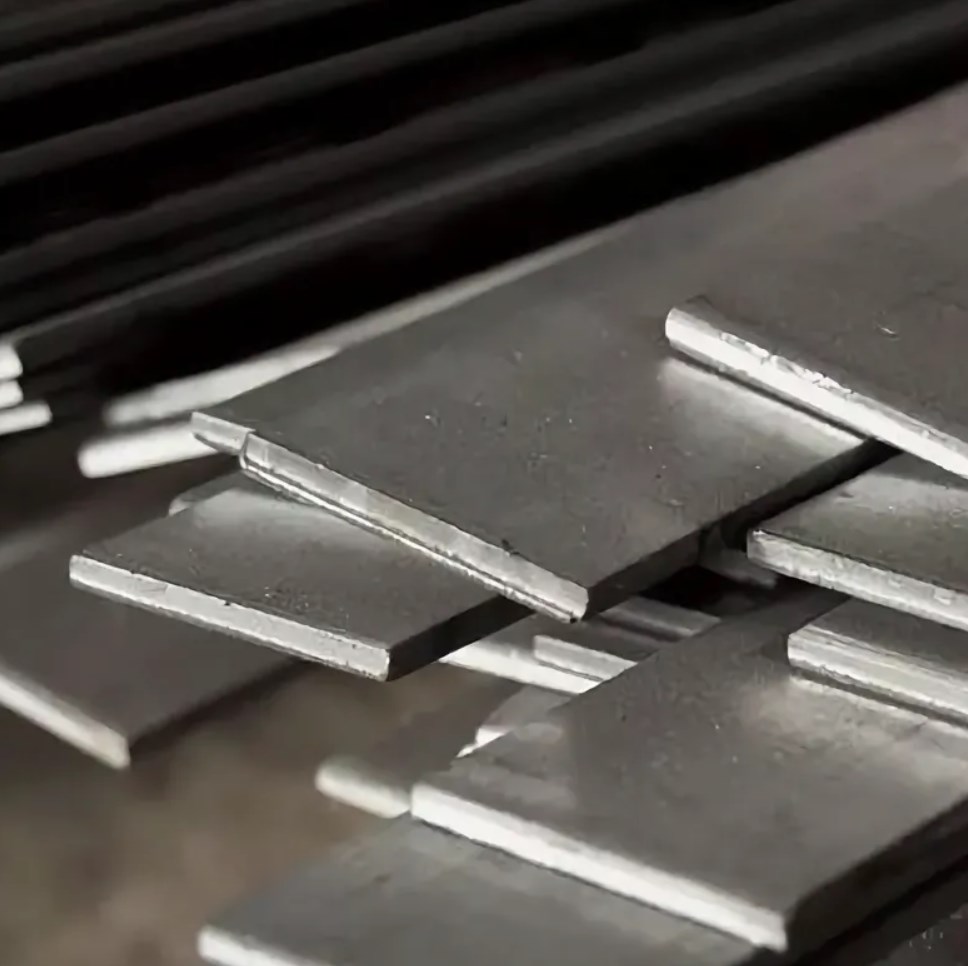

Super Duplex F53 Flat Bar is a rectangular bar formed with various thicknesses and sizes. It possesses excellent mechanical characteristics with weldability and formability in precise structure. These Bars are proposed to use in construction applications and equipments due to their admirable strength. Their toughness is considered to sustain higher loads in many heavy systems.
Features of Super Duplex F53 Flat Bar
• Durability and Superior toughness
• Heat resilient at upper temperatures
• Feasible in extremely corrosive environs
• Compliant extreme circumstance
Why favor Super Duplex F53 Flat Bar?
Super Duplex F53 Flat Bar is efficient to resist various corrosions with addition to improved tensile strength along with yield strength. They offer excellent resistance in chloride corrosion and consequently reduce pitting and stress corrosion. Excellent finished Flat Bar acquire plain rust-free surface and opposes atmospheric erosion. The higher yield strength of the Bar reduces part size in stress applications.
The Flat Bar is promoted to employ in many chemical applications with excellent opposing quality in acidic reducing surroundings. Many chemical, oil, and power industries refer to these Flat bars for excellent functioning in warm sarcastic conditions. These Flat Bars are easily welded in several applications and proposed to harsh chloride media. The super duplex qualities of resisting aqueous corrosion intend their use in seawater equipments and water systems.
Applications of Super Duplex F53 Flat Bar
These Flat Bars are deliberated their use in Offshore, Fire-Fighting Systems, High-Pressure Ro-Plants, Vessels, etc.
ASTM A182
ASME SA-182
UNS S32750
WNR. 1.4410
| STANDARD | WERKSTOFF NR. | UNS |
| ASTM A182 F53 | 1.4410 | S32750 |
| CD | Cold drawn | P | Polished |
| BD | Bright drawn | SRE | Slit rolled edge |
| CG | Centreless ground | HF | Hot finished |
| CF | Cold finished | HRAP | Hot rolled annealed and pickled |
| P&T | Peeled and turned | RT | Rough turned/peeled |
| ST | Smooth turned | PR | Peeled and reeled |
| Size(mm) | 6 mm | 8 mm | 10 mm | 12 mm | 16 mm | 18 mm | 20 mm | 25 mm | 30 mm | 32 mm |
|---|---|---|---|---|---|---|---|---|---|---|
| 25 | 1.20 | 1.60 | 2.00 | 2.40 | — | — | — | — | — | — |
| 30 | 1.44 | 1.92 | 2.40 | 2.88 | — | — | — | — | — | — |
| 32 | 1.54 | 2.05 | 2.56 | 3.07 | — | — | — | — | — | — |
| 35 | 1.68 | 2.24 | 2.80 | 3.36 | — | — | — | — | — | — |
| 38 | 1.82 | 2.24 | 3.04 | 3.65 | 4.86 | 5.47 | 6.08 | — | — | — |
| 40 | 1.92 | 2.56 | 3.20 | 3.84 | 5.12 | 5.76 | 6.40 | — | — | — |
| 45 | 2.16 | 2.88 | 3.60 | 4.32 | 5.76 | 6.48 | 7.20 | — | — | — |
| 50 | 2.40 | 3.20 | 4.00 | 4.80 | 6.40 | 7.20 | 8.00 | 10.00 | 12.00 | 12.80 |
| 55 | 2.64 | 3.52 | 4.40 | 5.28 | 7.04 | 7.92 | 8.80 | 11.00 | 13.20 | 14.08 |
| 60 | 2.88 | 3.84 | 4.80 | 5.76 | 7.68 | 8.64 | 9.60 | 12.00 | 14.40 | 15.36 |
| 63 | 3.02 | 4.03 | 5.04 | 6.05 | 8.06 | 9.07 | 10.08 | 12.60 | 15.12 | 16.13 |
| 65 | 3.12 | 4.16 | 5.20 | 6.24 | 8.32 | 9.36 | 10.40 | 13.00 | 15.60 | 16.64 |
| 70 | 3.36 | 4.48 | 5.60 | 6.72 | 8.96 | 10.08 | 11.20 | 14.00 | 16.80 | 17.92 |
| 75 | 3.60 | 4.80 | 6.00 | 7.20 | 9.60 | 10.80 | 12.00 | 15.00 | 18.00 | 19.20 |
| 80 | 3.84 | 5.12 | 6.40 | 7.68 | 10.24 | 11.52 | 12.80 | 16.00 | 19.20 | 20.48 |
| 90 | 4.32 | 5.76 | 7.20 | 8.64 | 11.52 | 12.96 | 14.40 | 18.00 | 21.60 | 25.04 |
| 100 | 4.80 | 6.40 | 8.00 | 9.60 | 12.80 | 14.40 | 16.00 | 20.00 | 24.60 | 25.60 |
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
|---|---|---|
| 16 | 0.62 | 2.05 |
| 18 | 0.79 | 2.59 |
| 20 | 0.76 | 2.49 |
| 22 | 1.18 | 3.87 |
| 25 | 1.52 | 5.00 |
| 28 | 1.91 | 6.27 |
| 30 | 2.19 | 7.20 |
| 32 | 2.50 | 8.19 |
| 36 | 3.16 | 10.37 |
| 38 | 3.52 | 11.55 |
| 40 | 3.90 | 12.80 |
| 45 | 4.94 | 16.20 |
| 50 | 6.10 | 20.00 |
| 56 | 7.65 | 25.08 |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
HOW TO GET BEST PRICE OF SDSS F53 FLAT BAR ?
If looking for F53 Flat Bar in exact length so first check SDSS F53 price per KG in India and calculate with wight chart before negotiating with your supplier.
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| F53 | 0.03 max | 2.0 Max | 1 Max | 0.03 Max | 0.02 Max | 21 – 23 | 2.5 – 3.5 | 4.5 – 6.5 | 0.80 – 0.20 | – |
| Grades | Tensile Strength (ksi) min | Elongation (% in 50mm) min | Yield Strength 0.2% Proof (ksi) min | Hardness |
| F53 | 105 | 35 | 43 | 255 |
