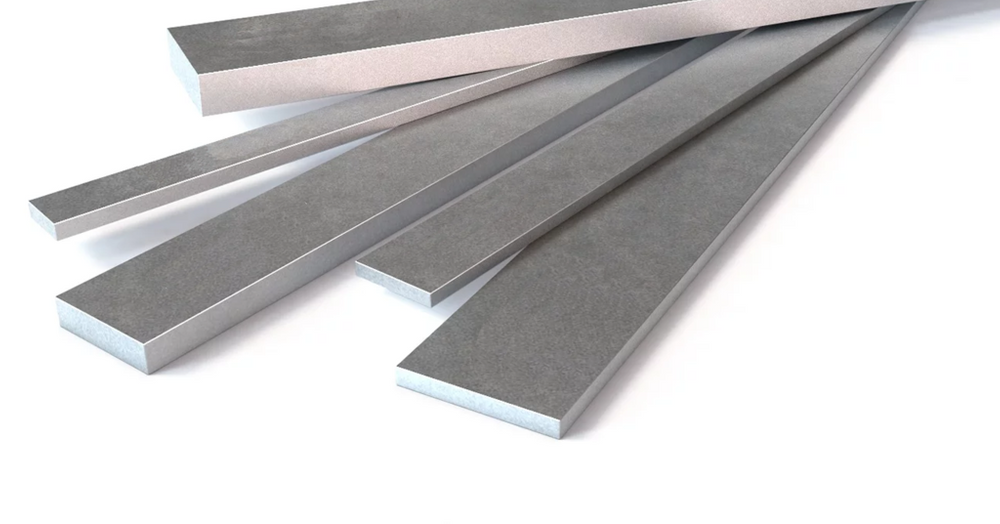

Steelo Fabrica is a reputed dealer and manufacturer of quality Super Duplex F55 Flat Bar. We manage to maintain the standards and specifications required in various industries at reasonable rates. Our consumers are provided these bars in different sizes with dimensional requirements and thickness properly fit in application. We also serve custom specifications and sizes with an excellent finish.
Super duplex material used for this Flat bar production is of high quality. We prefer to produce a flat bar for long-lasting features and ease of use.
Table of Content
What is Super Duplex F55 material and Flat Bar?
A flat Bar is a rectangular form of a metal bar, also identified as a rectangular Bar. These are used in several structural applications in hot rolled and cold rolled forms. It is easily cut in required lengths and specifications.
Super Duplex F55 is an excellent grade of high chromium and molybdenum enhanced with Nitrogen and Tungsten. It posses excellent aspects of austenitic grades in addition to ferritic features. Adequate accumulation of Manganese, Nickel, Copper, and Silicon improves other steel properties of corrosion and strength.
Beneficial aspects of Super Duplex F55 Flat Bar:
• Hardness
• Wear resistance
• Eminent temperature strength
• Ductility and weldability
Performance of Super Duplex F55 Flat Bar:
Super Duplex F55 Flat Bar is a wear-resistant, durable Bar with superb mechanical properties. It is highly tensile and improved to work hardening rates, fatigue strength, and localized decomposition resistance. These Flat Bars are resistant to various mordant media. Saltwater decomposition and chloride corrosion are wonderfully defended by these bars. Our Flat Bars are Super quality performing in various chemical surroundings. They are extensively resistant to pitting and heat oxidation.
Super Duplex F55 Flat Bars are tough to handle higher pressure and temperature conditions. They are heat resistant and useful in many applications in excessive conditions. Stress produced by higher temperatures is defied with excellent cracking strength. These bars are known for exceptional resistance to pitting, crevice corrosion, and high weldability. They are an important part of the heater, shafts, equipments in many appliances.
Super Duplex F55 Flat Bar plays an important role in:
Oil refineries, Chemical engineering, Mining, Desalination, Nautical, Metallurgical, Pharmaceutical, and Gas industry applications.
ASTM A182
ASME SA-182
UNS S32760
WNR. 1.4501
STANDARD | WERKSTOFF NR. | UNS |
ASTM A182 F53 | 1.4410 | S32750 |
CD | Cold drawn | P | Polished |
BD | Bright drawn | SRE | Slit rolled edge |
CG | Centreless ground | HF | Hot finished |
CF | Cold finished | HRAP | Hot rolled annealed and pickled |
P&T | Peeled and turned | RT | Rough turned/peeled |
ST | Smooth turned | PR | Peeled and reeled |
Size(mm) | 6 mm | 8 mm | 10 mm | 12 mm | 16 mm | 18 mm | 20 mm | 25 mm | 30 mm | 32 mm |
---|---|---|---|---|---|---|---|---|---|---|
25 | 1.20 | 1.60 | 2.00 | 2.40 | — | — | — | — | — | — |
30 | 1.44 | 1.92 | 2.40 | 2.88 | — | — | — | — | — | — |
32 | 1.54 | 2.05 | 2.56 | 3.07 | — | — | — | — | — | — |
35 | 1.68 | 2.24 | 2.80 | 3.36 | — | — | — | — | — | — |
38 | 1.82 | 2.24 | 3.04 | 3.65 | 4.86 | 5.47 | 6.08 | — | — | — |
40 | 1.92 | 2.56 | 3.20 | 3.84 | 5.12 | 5.76 | 6.40 | — | — | — |
45 | 2.16 | 2.88 | 3.60 | 4.32 | 5.76 | 6.48 | 7.20 | — | — | — |
50 | 2.40 | 3.20 | 4.00 | 4.80 | 6.40 | 7.20 | 8.00 | 10.00 | 12.00 | 12.80 |
55 | 2.64 | 3.52 | 4.40 | 5.28 | 7.04 | 7.92 | 8.80 | 11.00 | 13.20 | 14.08 |
60 | 2.88 | 3.84 | 4.80 | 5.76 | 7.68 | 8.64 | 9.60 | 12.00 | 14.40 | 15.36 |
63 | 3.02 | 4.03 | 5.04 | 6.05 | 8.06 | 9.07 | 10.08 | 12.60 | 15.12 | 16.13 |
65 | 3.12 | 4.16 | 5.20 | 6.24 | 8.32 | 9.36 | 10.40 | 13.00 | 15.60 | 16.64 |
70 | 3.36 | 4.48 | 5.60 | 6.72 | 8.96 | 10.08 | 11.20 | 14.00 | 16.80 | 17.92 |
75 | 3.60 | 4.80 | 6.00 | 7.20 | 9.60 | 10.80 | 12.00 | 15.00 | 18.00 | 19.20 |
80 | 3.84 | 5.12 | 6.40 | 7.68 | 10.24 | 11.52 | 12.80 | 16.00 | 19.20 | 20.48 |
90 | 4.32 | 5.76 | 7.20 | 8.64 | 11.52 | 12.96 | 14.40 | 18.00 | 21.60 | 25.04 |
100 | 4.80 | 6.40 | 8.00 | 9.60 | 12.80 | 14.40 | 16.00 | 20.00 | 24.60 | 25.60 |
Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
---|---|---|
16 | 0.62 | 2.05 |
18 | 0.79 | 2.59 |
20 | 0.76 | 2.49 |
22 | 1.18 | 3.87 |
25 | 1.52 | 5.00 |
28 | 1.91 | 6.27 |
30 | 2.19 | 7.20 |
32 | 2.50 | 8.19 |
36 | 3.16 | 10.37 |
38 | 3.52 | 11.55 |
40 | 3.90 | 12.80 |
45 | 4.94 | 16.20 |
50 | 6.10 | 20.00 |
56 | 7.65 | 25.08 |
60 | – | – |
65 | – | – |
70 | – | – |
75 | – | – |
80 | – | – |
90 | – | – |
100 | – | – |
HOW TO GET BEST PRICE OF SDSS F55 FLAT BAR ?
If looking for F55 Flat Bar in exact length so first check SDSS F55 price per KG in India and calculate with wight chart before negotiating with your supplier.
Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
F53 | 0.03 max | 2.0 Max | 1 Max | 0.03 Max | 0.02 Max | 21 – 23 | 2.5 – 3.5 | 4.5 – 6.5 | 0.80 – 0.20 | – |
Grades | Tensile Strength (ksi) min | Elongation (% in 50mm) min | Yield Strength 0.2% Proof (ksi) min | Hardness |
F53 | 105 | 35 | 43 | 255 |
